Accelerator Pedal

WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
ACCELERATOR PEDAL STROKE DATA

Unit: mm (In)

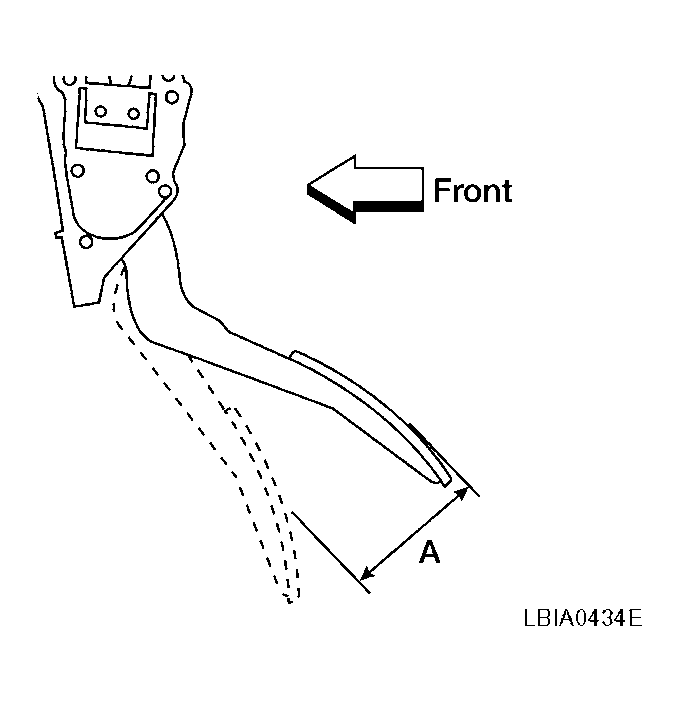

G04203388
Accelerator pedal - total pedal applied stroke "A" 48 (1.89)
