Booster Drive

WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Perform active test subject to the conditions below.
  • Do not operate brake pedal during active test.
  • Make sure the engine revolution is over 500 rpm.
  • Make sure the vehicle is not moving.

Touch "UP" and "DOWN" on the screen. Check that booster drive operates as shown in table below.

BOOSTER DRIVE OPERATION CONDITIONS

Operation UP DOWN
STOP LAMP SW ON OFF
BSTOPERSIG ON OFF
PRESS SENSOR 50 +/- 5 bar 0 bar
PRESS SEN 2 50 +/- 5 bar 0 bar
STP OFF RLY OFF OFF

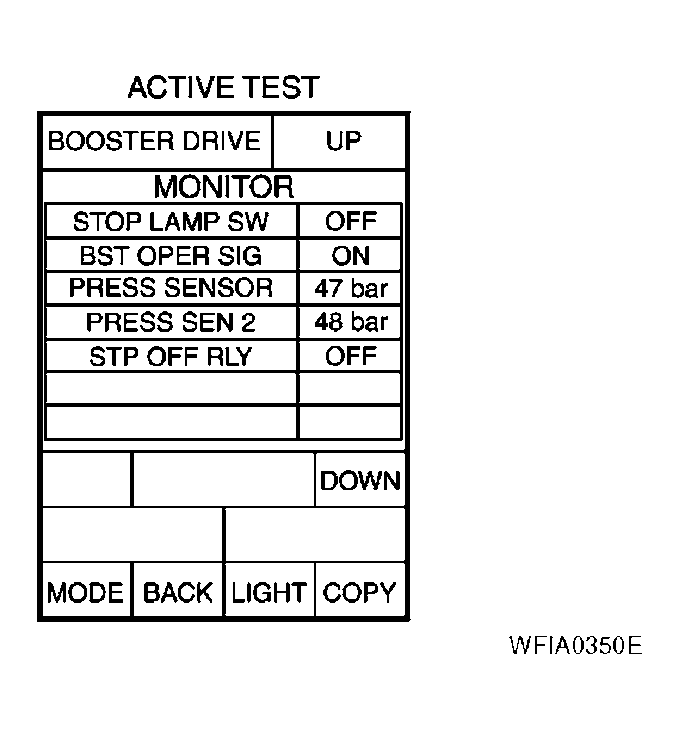

Fig 1: Consult-II - Scane Tool Display Active Test
G04205216Courtesy of NISSAN MOTOR CO., U.S.A.
