Write Configuration Procedure

WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carries out CAN communication.
  1. With ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to data link connector and turn ignition switch ON.
    Fig 1: Connecting CONSULT-II To Data Link Connector
    G04899601
  2. Touch "START (NISSAN BASED VHCL)".
    Fig 2: Identifying CONSULT II Display - START (NISSAN BASED VHCL)
    G04899602
  3. Touch "BCM" on "SELECT SYSTEM" screen.

    If "BCM" is not indicated, go to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

    Fig 3: Identifying CONSULT II Display - SELECT SYSTEM
    G04899603
  4. Touch "BCM" on "SELECT TEST ITEM" screen.
    Fig 4: Identifying CONSULT II Display - SELECT TEST ITEM
    G04903945
  5. Touch "CONFIGURATION" on "SELECT DIAG MODE" screen.
    Fig 5: Identifying CONSULT II Display - SELECT DIAG MODE
    G04899604
  6. Touch "R51/D40/N51" and "OK" on "VEHICLE SELECT" screen.

    For canceling, touch "CANCEL" on "VEHICLE SELECT" screen.

    NOTE: Confirm vehicle model on IDENTIFICATION PLATE. Refer to "MODEL VARIATION ".
    Fig 6: Identifying CONSULT II Display - SELECT DIAG MODE
    G04896669
  7. Touch "WRITE CONFIGURATION" on "SELECT CONFIG ITEM" screen.
    Fig 7: Identifying CONSULT II Display - SELECT CONFIG ITEM
    G04903948
  8. Touch "YES".

    For canceling, touch "NO".

    Fig 8: Identifying CONSULT II Display - CONFIGURATION
    G04903958
  9. Using the following flow chart, identify the correct model and configuration list. Confirm and/or change setting value for each item according to the configuration list.

    Depending on CONSULT-II software version being used, some or all of the write configuration items shown in the following configuration lists may be displayed. If an item does not appear on the CONSULT-II "WRITE CONFIGURATION" screen(s), then it is an auto setting item and it cannot be manually set or changed.

    NOTE: Confirm vehicle model on IDENTIFICATION PLATE. Refer to "MODEL VARIATION ".
    DIAGNOSIS PROCEDURE

    ITEM SET VAL
    AUTO LIGHT WITH <==>WITHOUT
    DTRL WITH <==>WITHOUT
    SPEED SNS WIP WITH <==>WITHOUT
    THEFT ALARM WITH <==>WITHOUT
  10. Touch "CHNG SETTING" on "WRITE CONFIGURATION" screen.
    CAUTION: Make sure to touch "CHNG SETTING" even if the indicated configuration of new BCM is same as the desirable configuration.
    If not, configuration which is set automatically by selecting vehicle model cannot be memorized.
  11. Touch "OK" on "WRITE CONFIGURATION" screen.

    If "CANCEL" is touched, it will return to previous screen.

    Fig 9: Identifying CONSULT II Display - WRITE CONFIGURATION
    G04903959
  12. Wait until the next screen during setting.
    Fig 10: CONSULT II Display - WRITE CONFIGURATION
    G04903960
  13. WRITE CONFIGURATION results are printed out automatically. Confirm "WRITE CONFIGURATION" is correctly executed by comparing sheet automatically printed out with applicable configuration list shown in step  9.

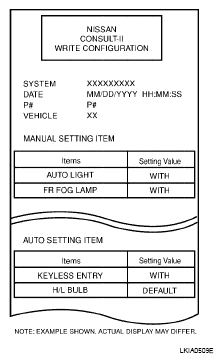

    Fig 11: Identifying CONSULT II Display - NISSAN WRITE CONFIGURATION
    G04903961
  14. Touch "OK" on "WRITE CONFIGURATION" screen. WRITE CONFIGURATION is completed.
    Fig 12: Identifying CONSULT II Display - WRITE CONFIGURATION
    G04903962
