Control System Connector Terminal Identification

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

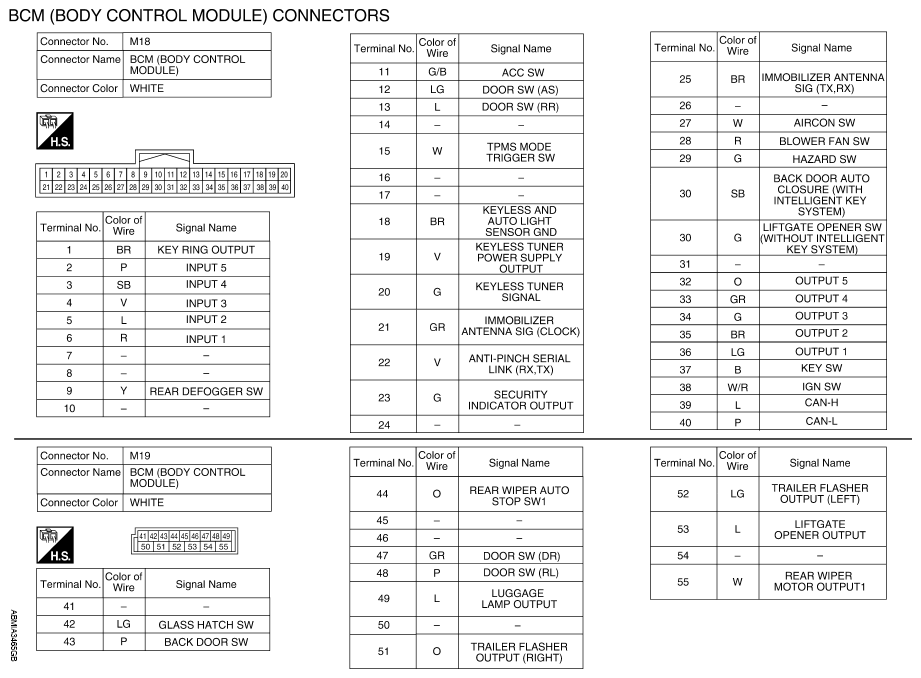

Fig 1: Identifying Body Control Module Connectors (1 Of 2)
G08169059Courtesy of NISSAN NORTH AMERICA, INC.

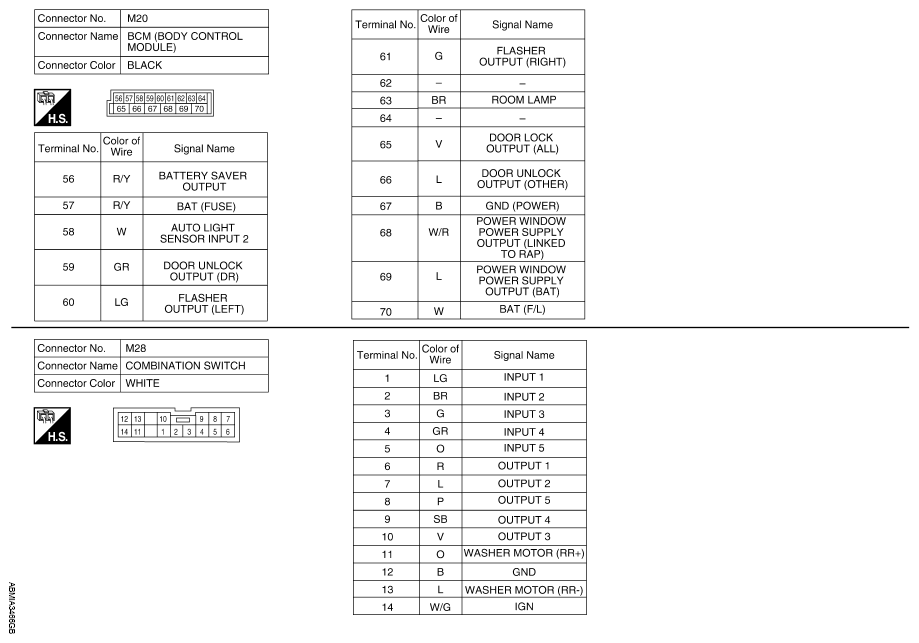

Fig 2: Identifying Body Control Module Connectors (2 Of 2)
G08169060Courtesy of NISSAN NORTH AMERICA, INC.
