Method B

WARNING: This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove No. 4 ignition coil.

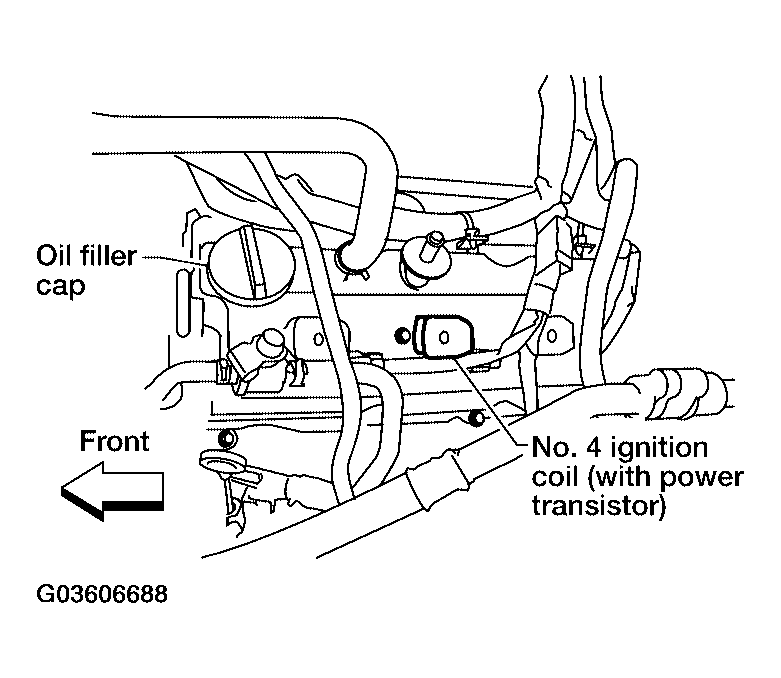

    Fig 1: Removing No. 4 Ignition Coil
    G03606688Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Connect No. 4 ignition coil and No. 4 spark plug with suitable high-tension wire as shown, and attach timing light clamp to this wire.

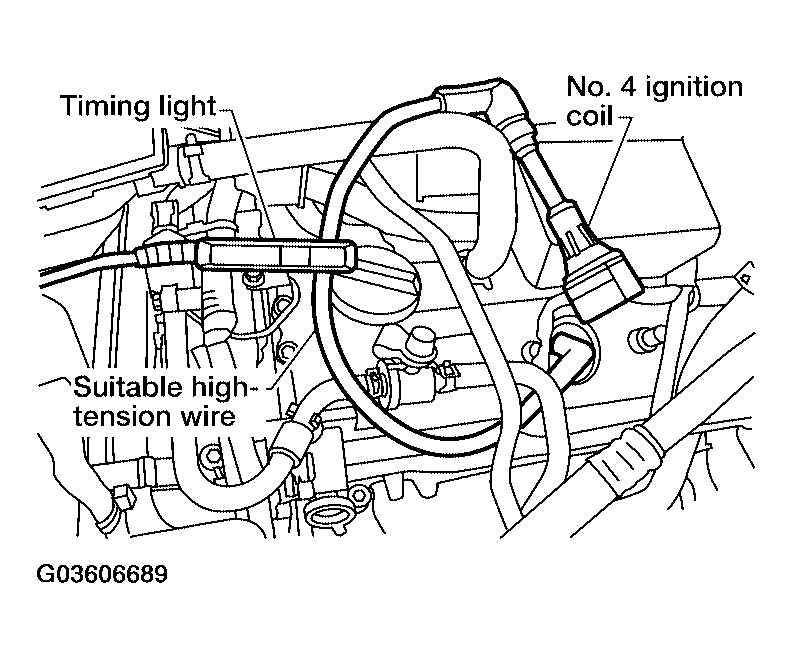

    Fig 2: Attaching Timing Light Clamp To No. 4 Ignition Coil Wire
    G03606689Courtesy of NISSAN MOTOR CO., U.S.A.
    Fig 3: Identifying High Tension Wire
    G03606690Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Check ignition timing.

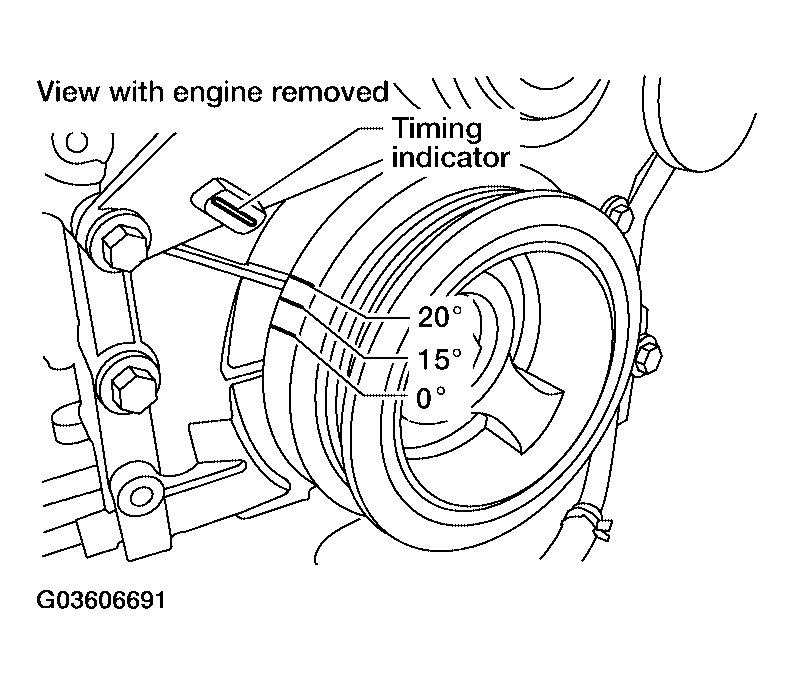

    Fig 4: Checking Ignition Timing
    G03606691Courtesy of NISSAN MOTOR CO., U.S.A.
