With CONSULT-II

WARNING: This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check the VIN of the vehicle and note it. Refer to "IDENTIFICATION INFORMATION "
  2. Turn ignition switch ON and engine stopped.
  3. Select "VIN REGISTRATION" in "WORK SUPPORT" mode.
  4. Follow the instruction of CONSULT-II display.

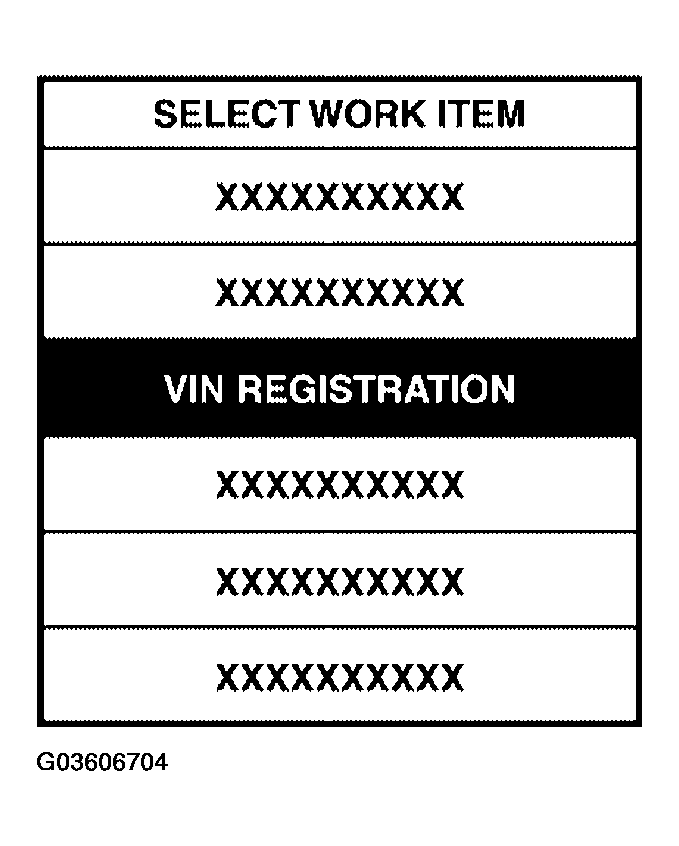

    Fig 1: CONSULT-II Display - VIN Registration
    G03606704Courtesy of NISSAN MOTOR CO., U.S.A.
