With CONSULT-II

WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check the VIN of the vehicle and note it. Refer to "IDENTIFICATION INFORMATION ".
  2. Turn ignition switch ON and engine stopped.
  3. Select "VIN REGISTRATION" in "WORK SUPPORT" mode.
  4. Follow the instruction of CONSULT-II display.

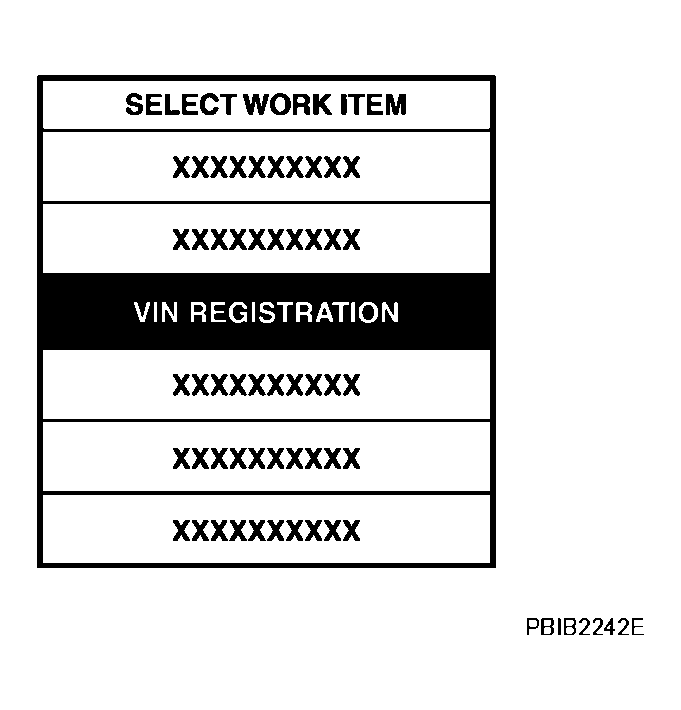

Fig 1: CONSULT-II Display - Select Work Item Screen
G04202565Courtesy of NISSAN MOTOR CO., U.S.A.
