Engine Control Component Parts/Control Systems Application

WARNING: This page is about a different car, the 2007 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

For DTC And 1st Trip DTC, go to DTC AND 1ST TRIP DTC .

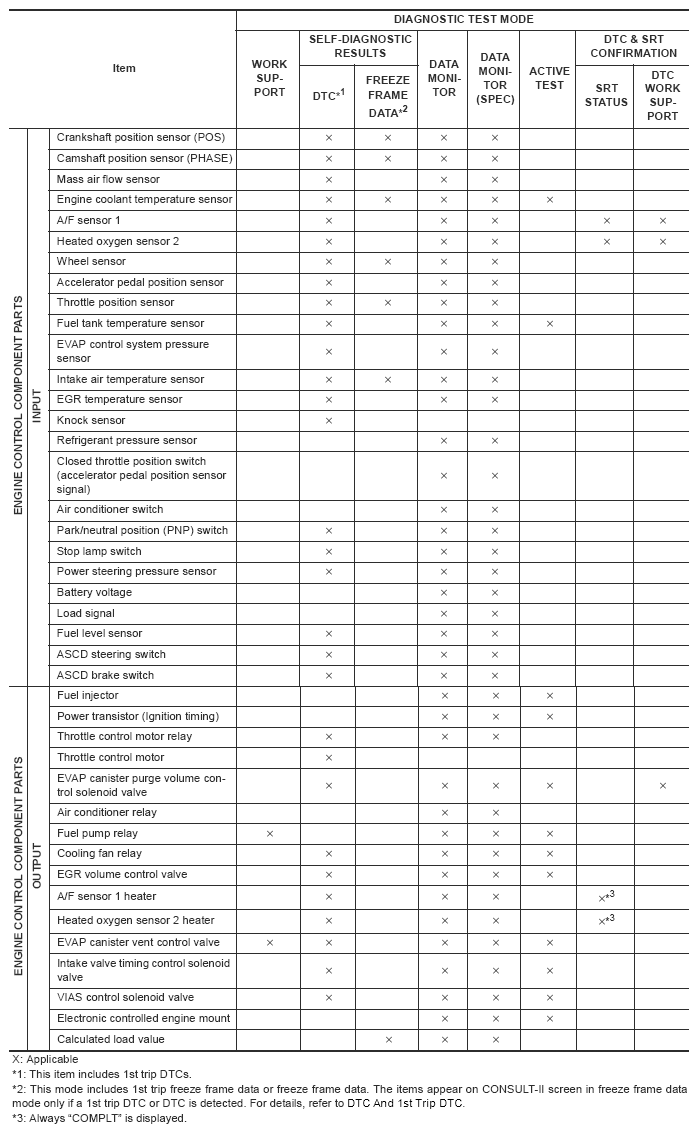

Fig 1: Engine Control Component Reference Chart
G04905173Courtesy of NISSAN NORTH AMERICA, INC.
