Method B

WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove ignition coil No. 1.

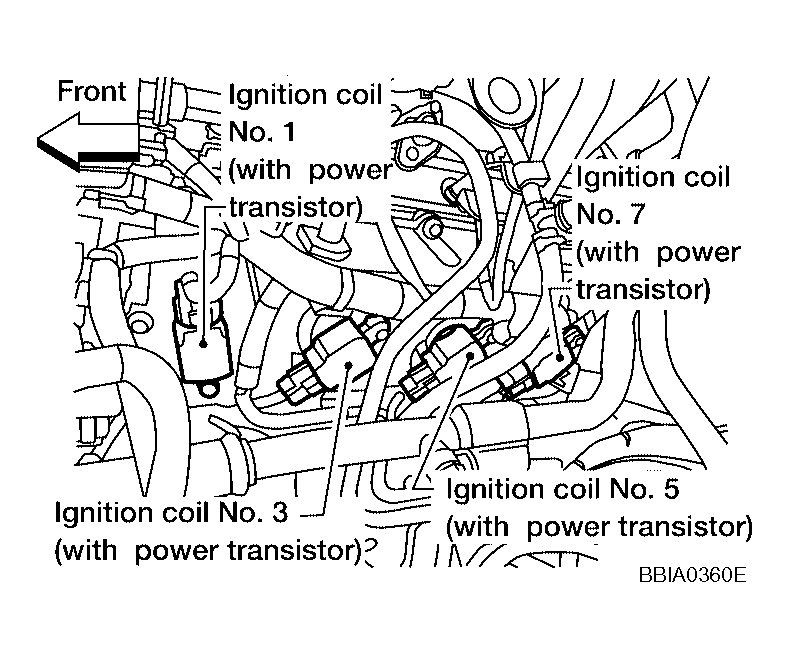

    Fig 1: Removing Ignition Coil No. 1
    G04184953Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Connect ignition coil No. 1 and spark plug with suitable high-tension wire as shown, and attach timing light clamp to this wire.

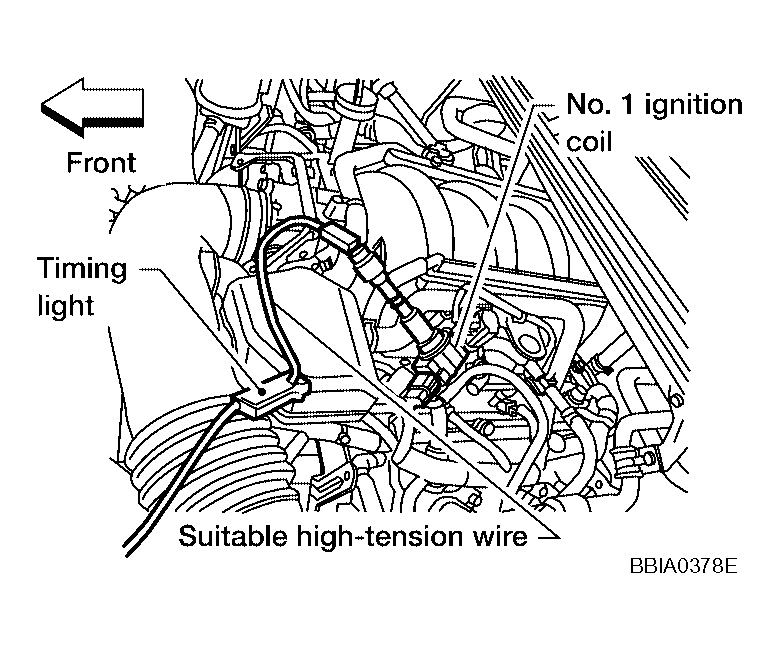

    Fig 2: Connecting Ignition Coil And Spark Plug With Suitable High-Tension Wire
    G04184954Courtesy of NISSAN MOTOR CO., U.S.A.

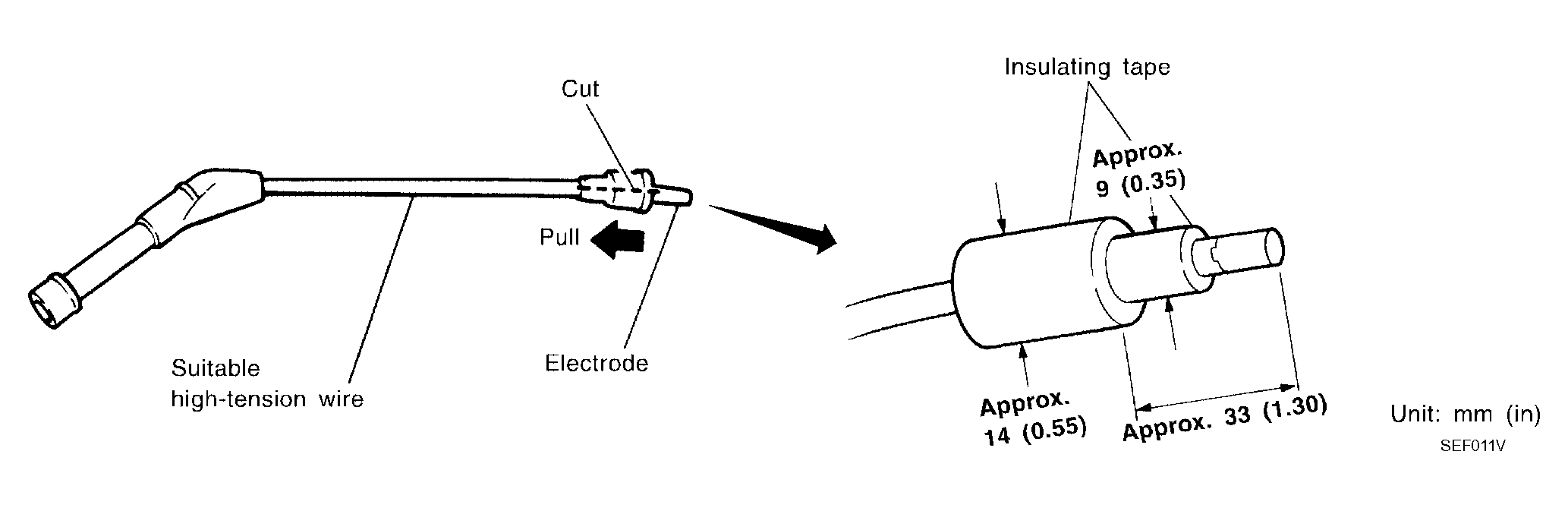

    Fig 3: Identifying High-Tension Wire
    G04184955Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Check ignition timing.

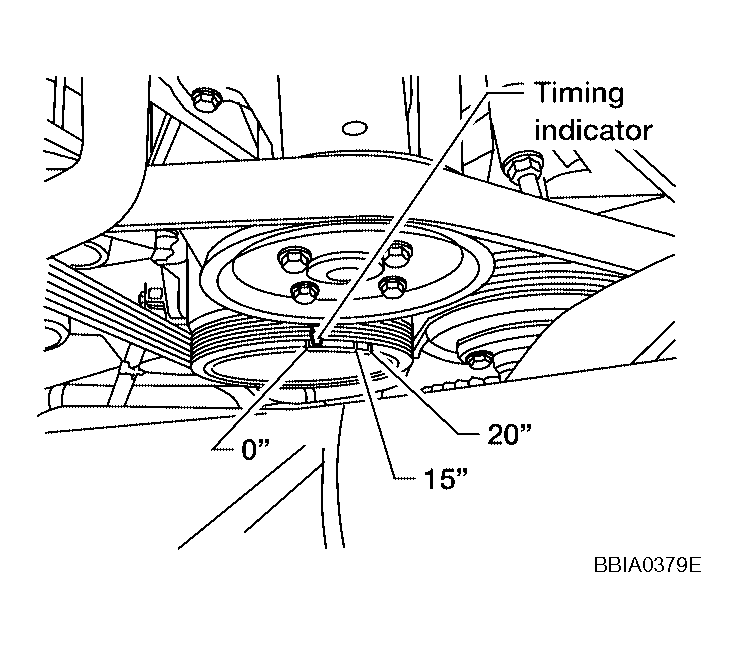

    Fig 4: Checking Ignition Timing
    G04184956Courtesy of NISSAN MOTOR CO., U.S.A.
