Engine Control Component Parts/Control System Application

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

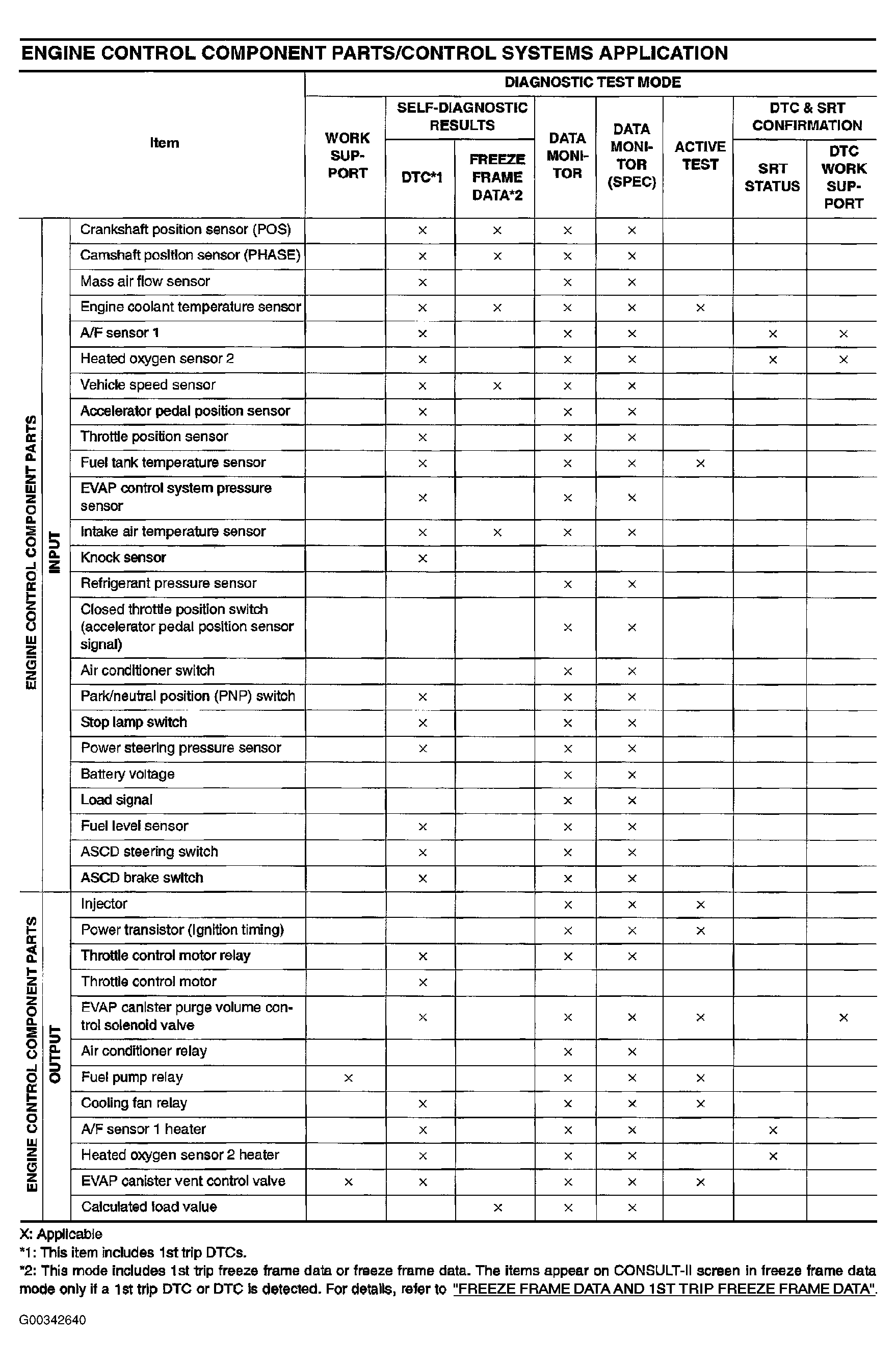

Fig 1: Engine Control Component Parts/Control System Application
G00342640Courtesy of NISSAN MOTOR CO., U.S.A.
