Non-Adjustable Accelerator Pedal Assembly: Notes

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

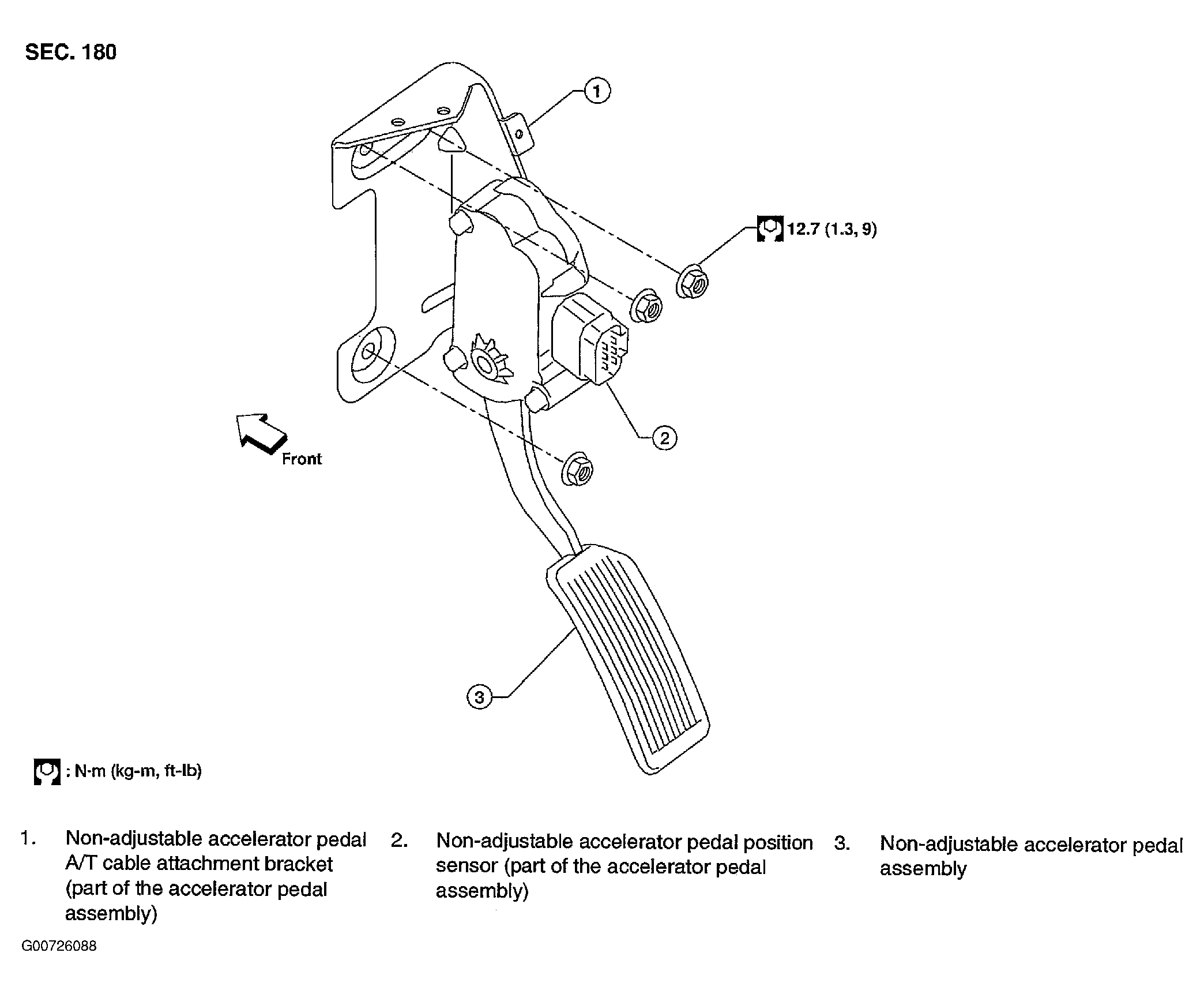

Fig 1: Non-Adjustable Accelerator Pedal

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION:

Do not disassemble the accelerator pedal assembly.
Do not remove the accelerator pedal position sensor from the accelerator pedal bracket.
Avoid damage from dropping the accelerator pedal assembly during handling.
Keep the accelerator pedal assembly away from water.
