Data Monitor

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

Remote Keyless Entry Item

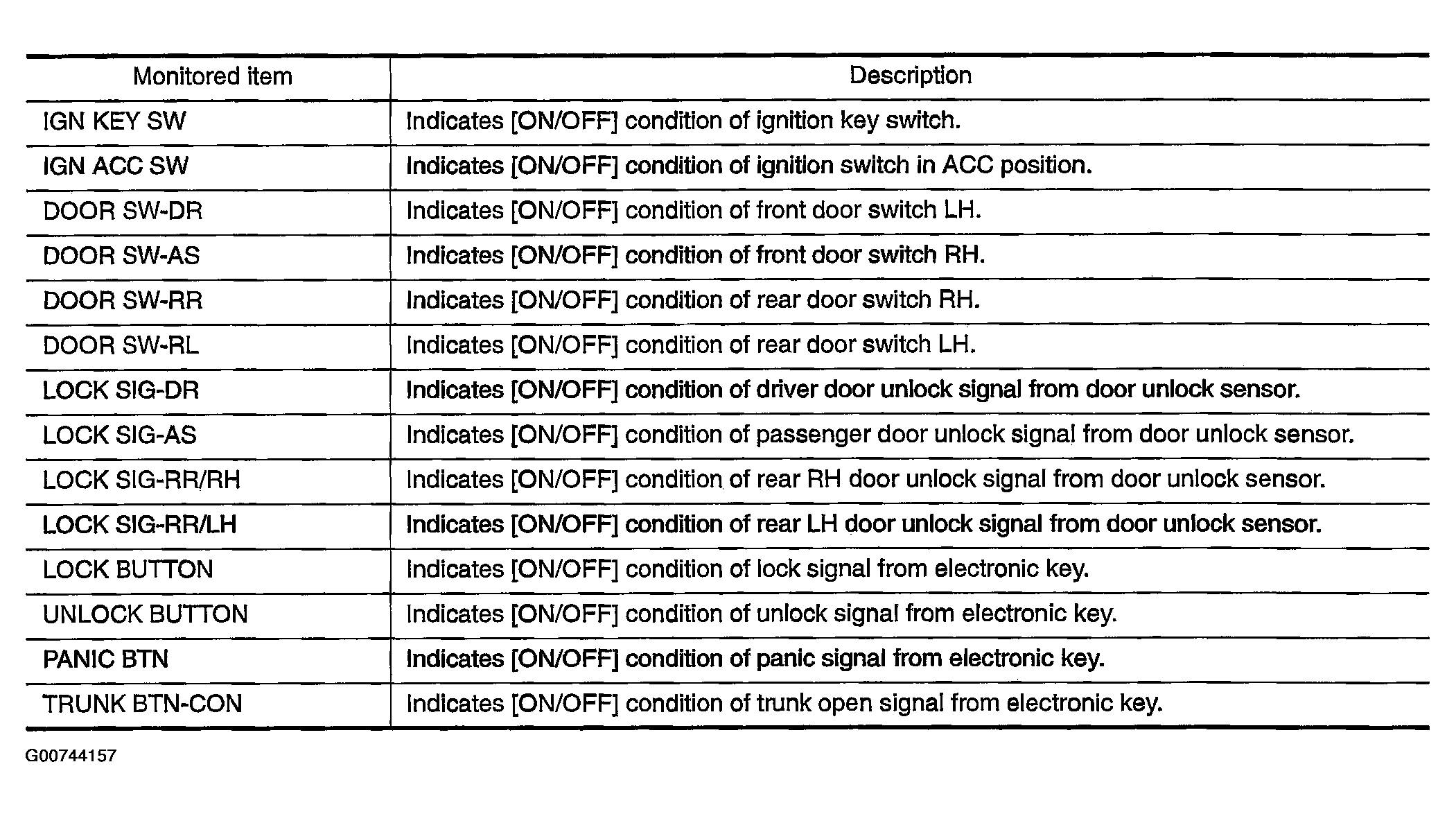

Fig 1: Remote Keyless Entry Item
G00744157Courtesy of NISSAN MOTOR CO., U.S.A.

Trunk Lid Opener Item

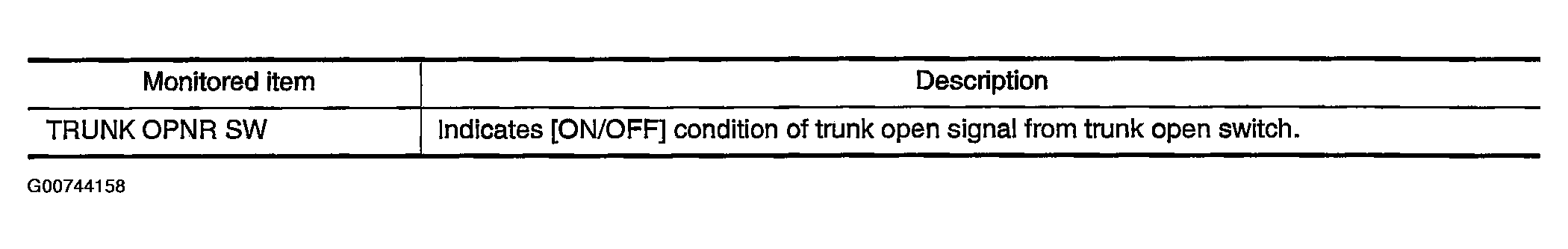

Fig 2: Trunk Lid Opener Item
G00744158Courtesy of NISSAN MOTOR CO., U.S.A.
