Without CONSULT-II

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove fuel pump fuse located in IPDM E/R.
  2. Start engine.
  3. After engine stalls, crank it two or three times to release all fuel pressure.
  4. Turn ignition switch OFF.
  5. Reinstall fuel pump fuse after servicing fuel system.

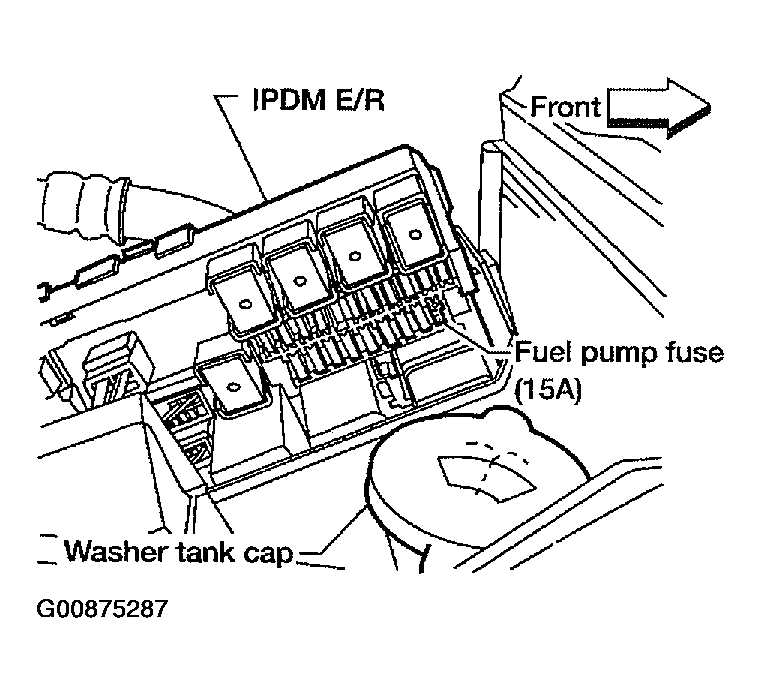

    Fig 1: Remove fuel pump fuse located in IPDM E/R
    G00875287Courtesy of NISSAN MOTOR CO., U.S.A.
