Method B
WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

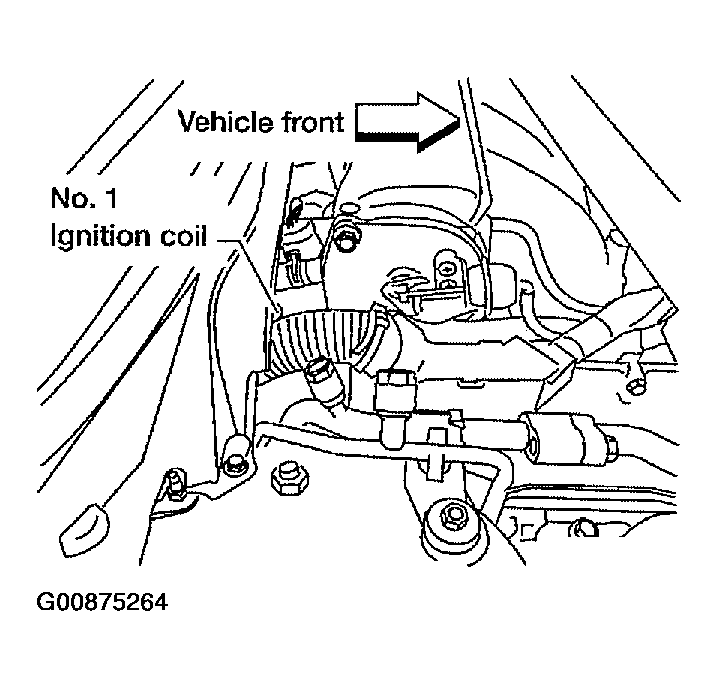

- Remove No. 1 ignition coil. See Figure.
- Connect No. 1 ignition coil and spark plug with suitable high-tension wire as shown, and attach timing light clamp to this wire.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.

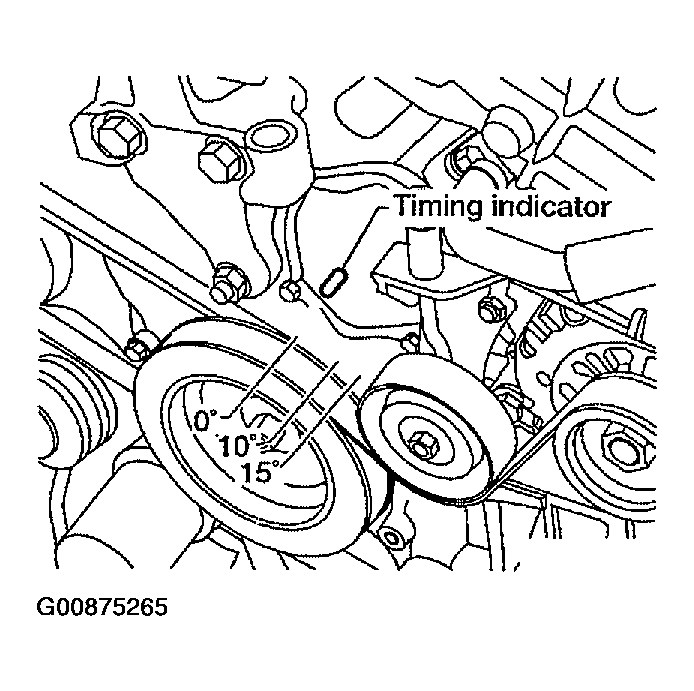

- Check ignition timing. See Figure.
