CONSULT-II Basic Operation

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.

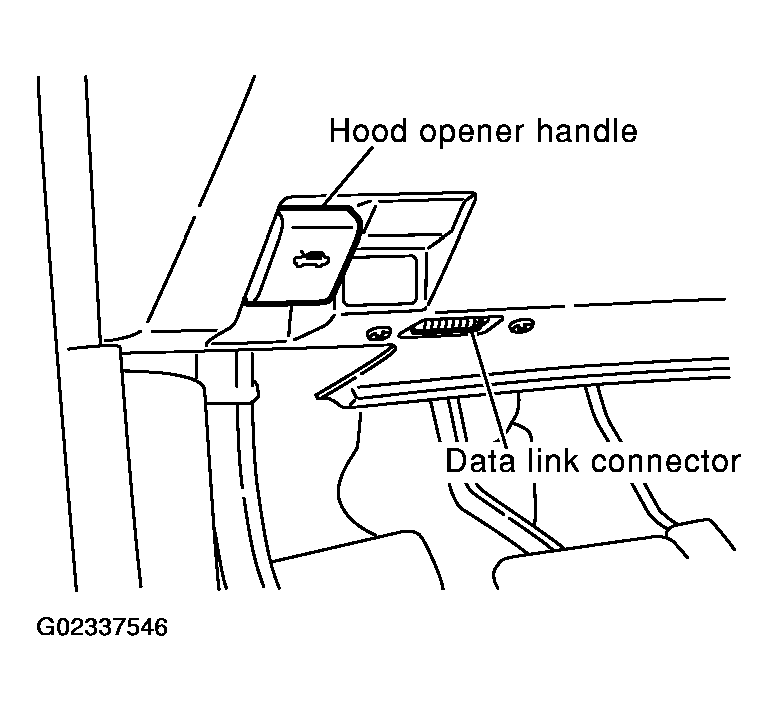

With the ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to the data link connector, then turn the ignition switch ON.

Fig 1: Locating Hood Opener Handle & Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.

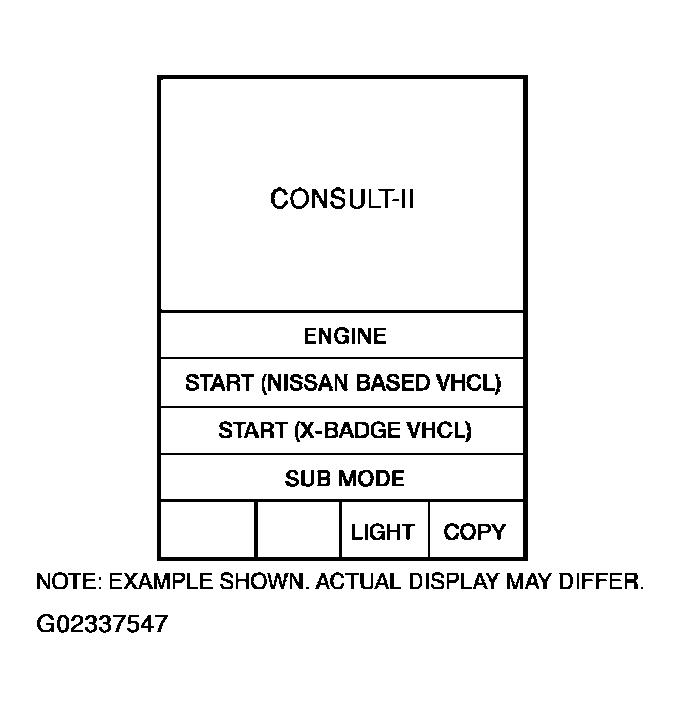

Touch START (NISSAN BASED VHCL).

Fig 2: Displaying CONSULT II Data Monitor
Courtesy of NISSAN MOTOR CO., U.S.A.

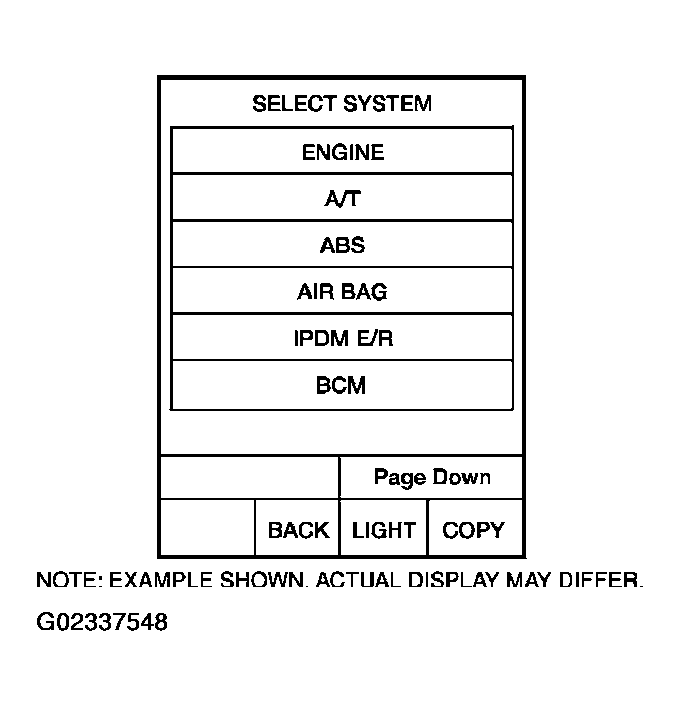

Touch BCM" on SELECT SYSTEM" screen. If BCM" is not indicated, refer to . CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

Fig 3: Displaying Select System Data Monitor
Courtesy of NISSAN MOTOR CO., U.S.A.

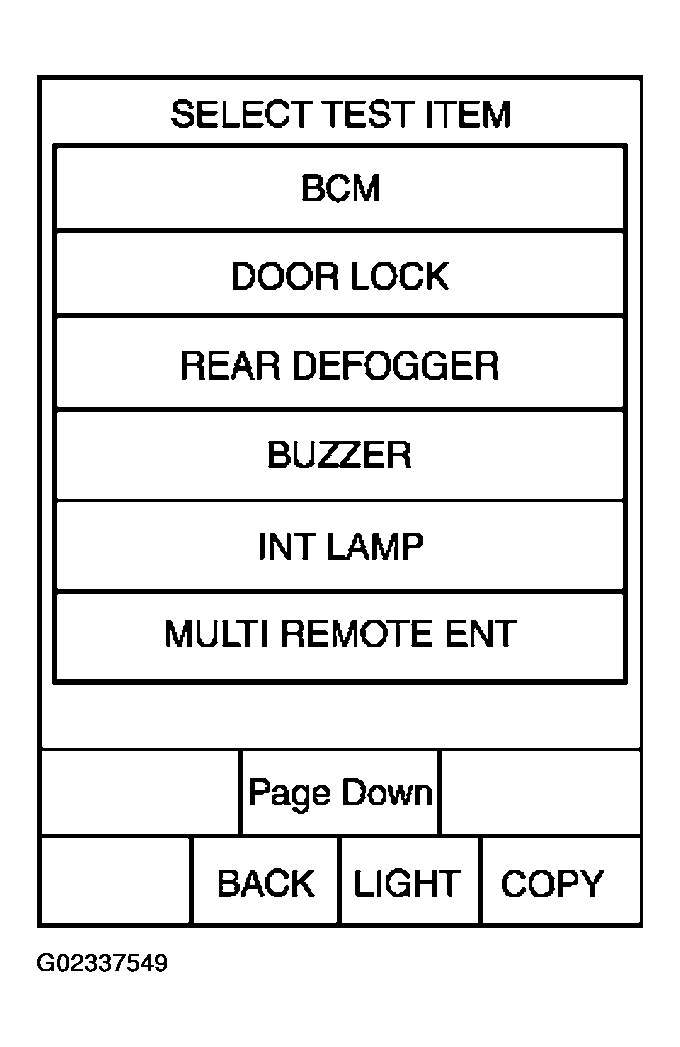

Select the desired part to be diagnosed on the SELECT TEST ITEM" screen.

Fig 4: Select Test Item Data Monitor
Courtesy of NISSAN MOTOR CO., U.S.A.
