Items Of Each Part

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: CONSULT-II displays systems equipped in the vehicle.

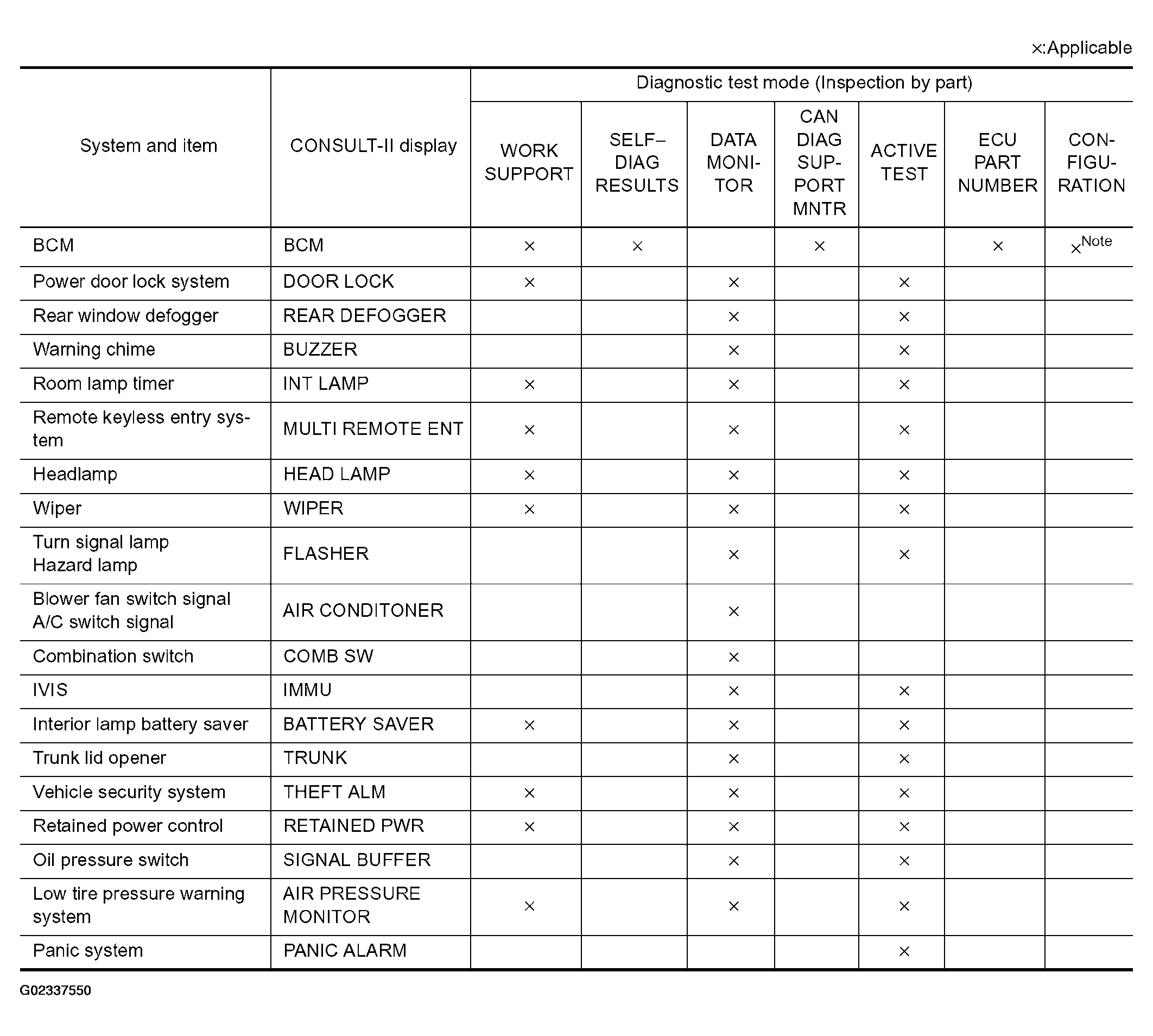

Fig 1: Identifying BCM Controlled System Diagnostics
G02337550Courtesy of NISSAN MOTOR CO., U.S.A.
