CONSULT-II Inspection Procedure

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

With ignition switch OFF, connect CONSULT-II to data link connector and turn ON ignition switch.

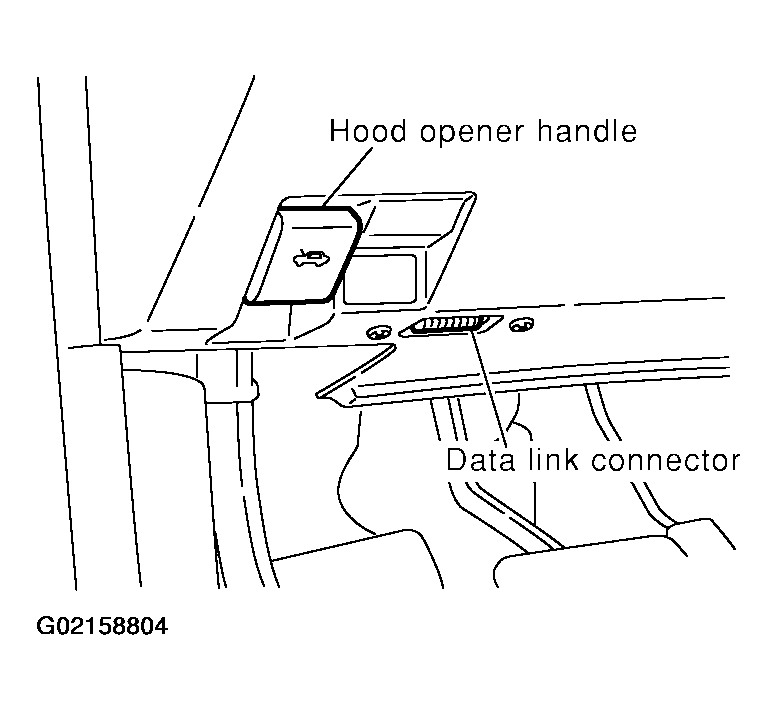

Fig 1: Locating Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START".

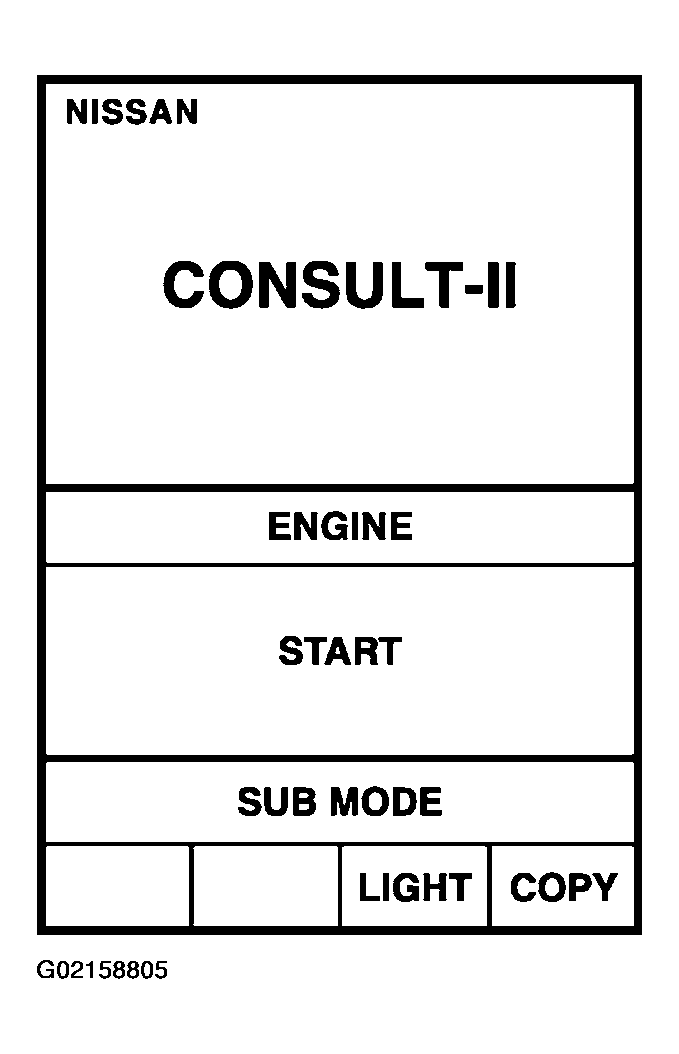

Fig 2: Locating START Selection CONSULT-II Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "BCM" on "SELECT SYSTEM" screen.

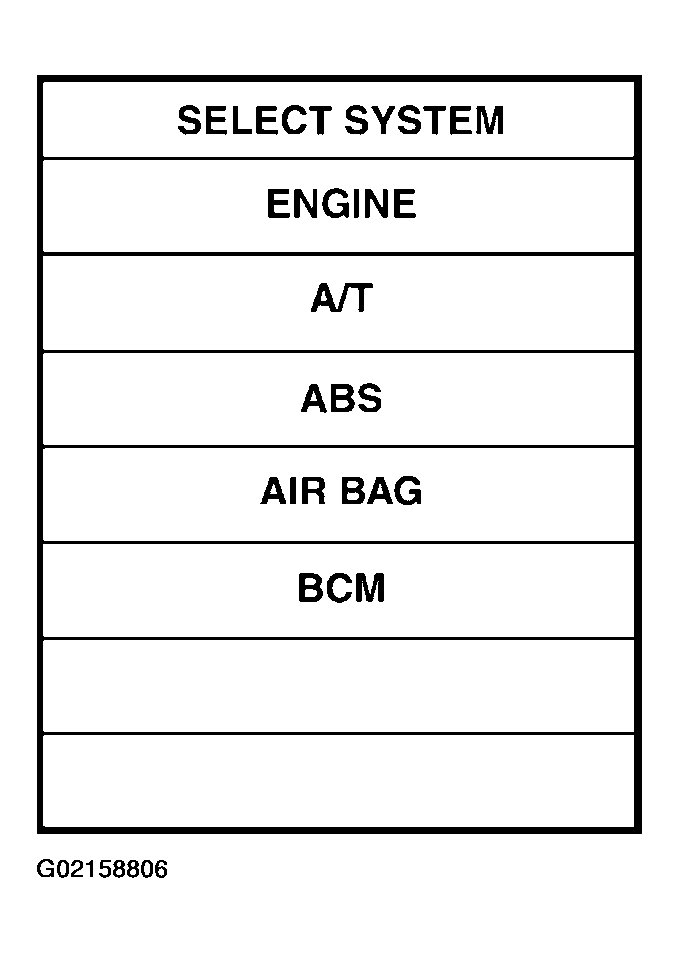

Fig 3: Locating BCM Selection On SELECTION SYSTEM Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Select item to be diagnosed on "SELECT TEST ITEM" screen.

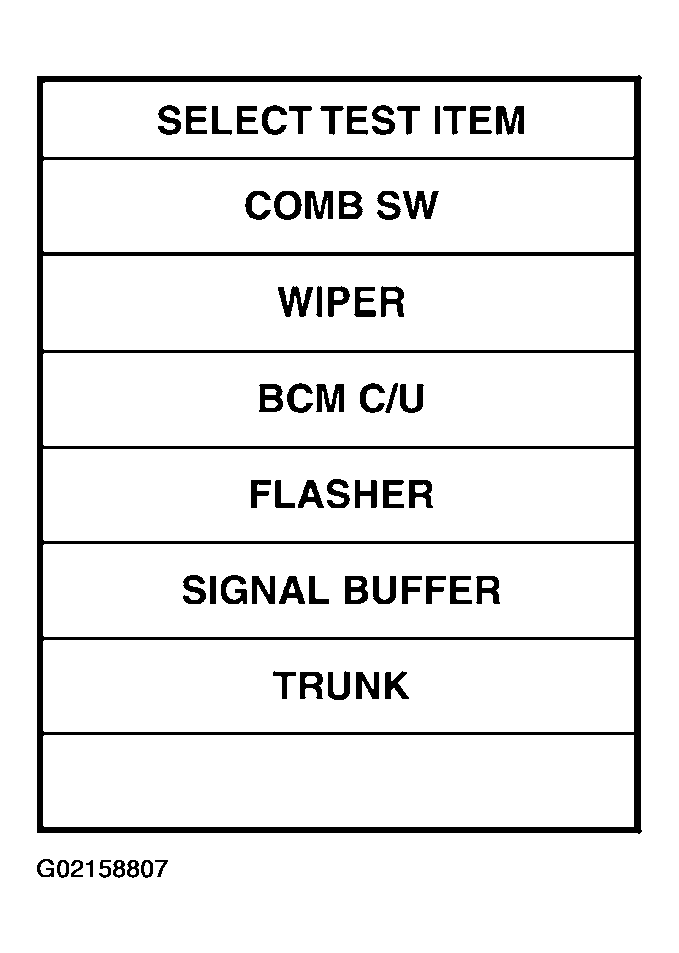

Fig 4: Locating Item Selection For Diagnose On SELECT TEST ITEM Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
