Consult-II Basic Operation Procedure

WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the ignition switch OFF, connect "CONSULT-II" and "CONSULT-II CONVERTER" to the data link connector on vehicle side, and turn the ignition switch ON.

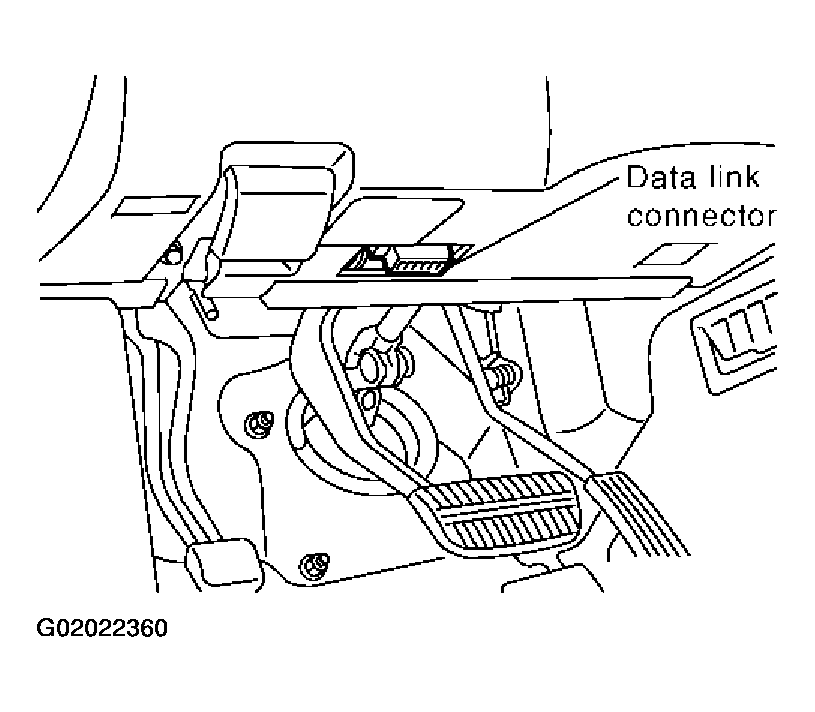

    Fig 1: Identifying Data Link Connector System
    G02022360Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Touch "START (NISSAN BASED VHCL)".

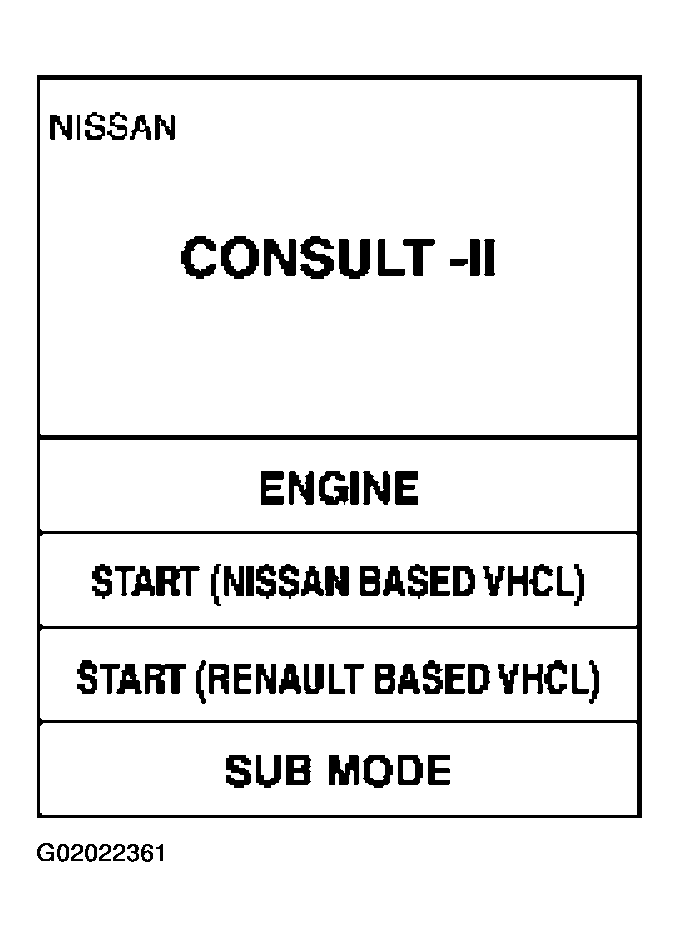

    Fig 2: Display Consult-II Basic Operation Procedure
    G02022361Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Touch "IVMS".

    If "IVMS" is not indicated, go to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

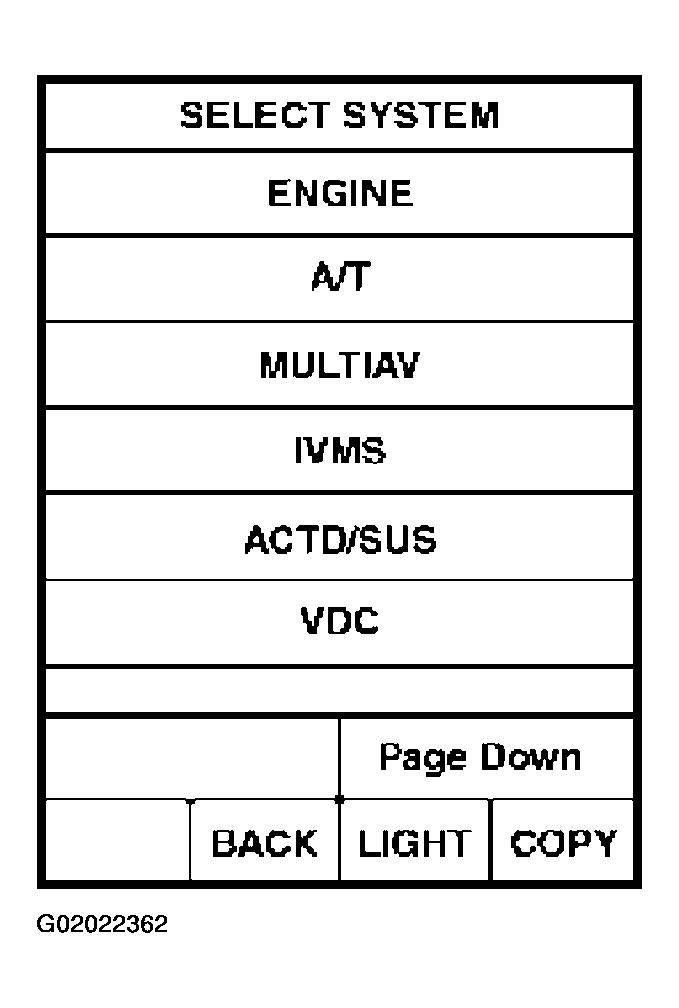

    Fig 3: Display Consult-II Basic Operation Procedure
    G02022362Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Check the model specification, touch either "WITH SUNROOF" or "WITHOUT SUNROOF".
  5. Touch "OK". If the selection is wrong, touch "CANCEL".

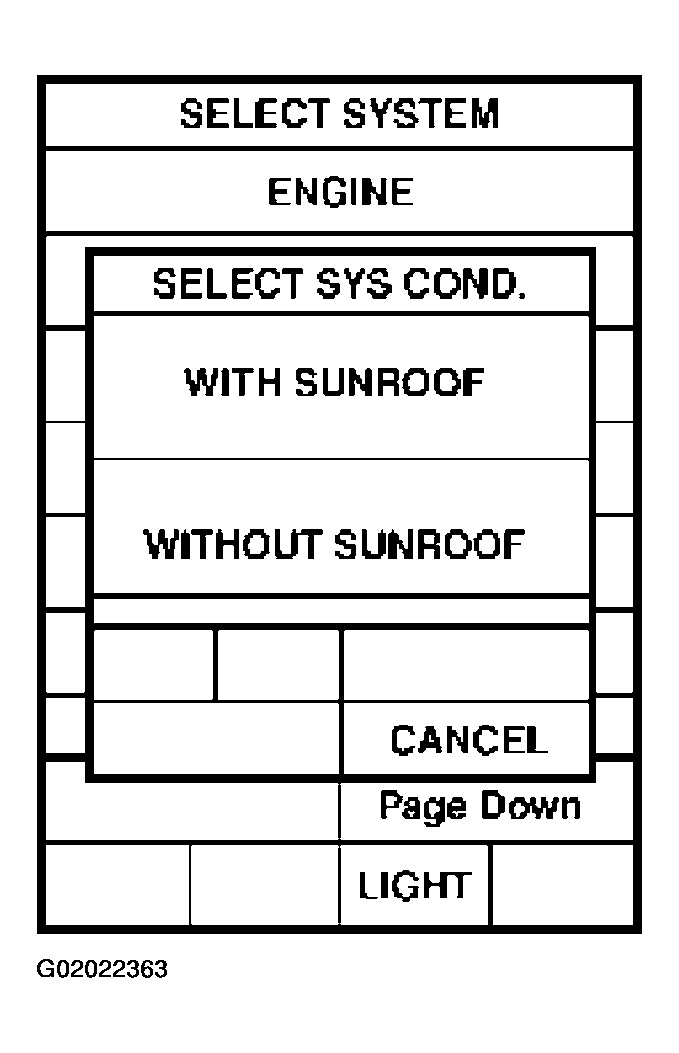

    Fig 4: Display Consult-II Basic Operation Procedure
    G02022363Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Select the desired part to be diagnosed on the "SELECT TEST ITEM" screen.
