Check ACC Power

WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

CHECK ACC POWER
With CONSULT-II

Check ACC power ("ACC ON SW") in "DATA MONITOR" mode with CONSULT-II.

Fig 1: Checking ACC Power Table
Courtesy of NISSAN MOTOR CO., U.S.A.

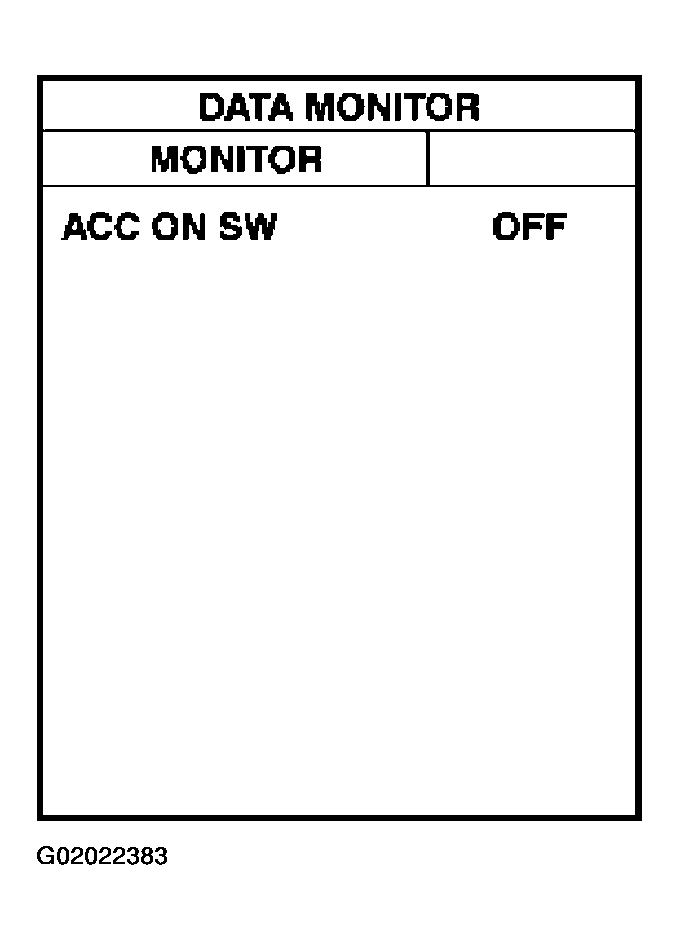

Fig 2: Display ACC Power Data Monitor Sheet
Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Check voltage between BCM connector and ground.

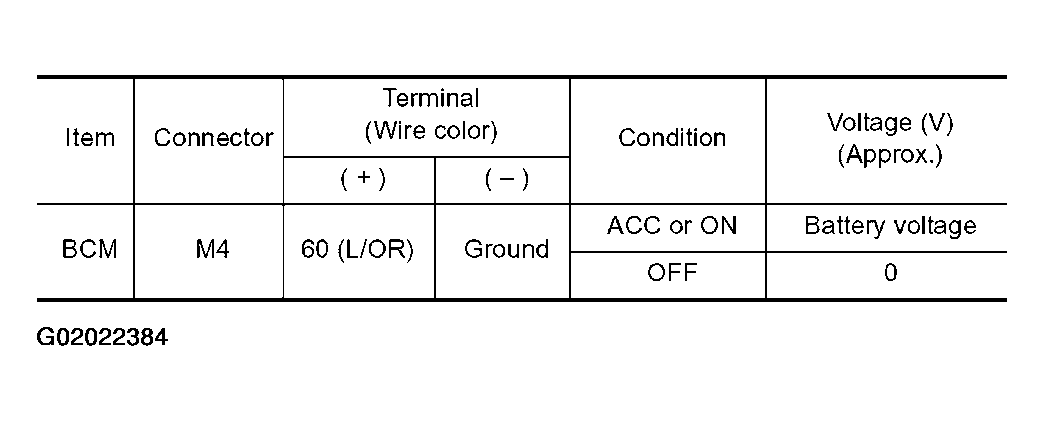

Fig 3: Checking ACC Power Table
Courtesy of NISSAN MOTOR CO., U.S.A.

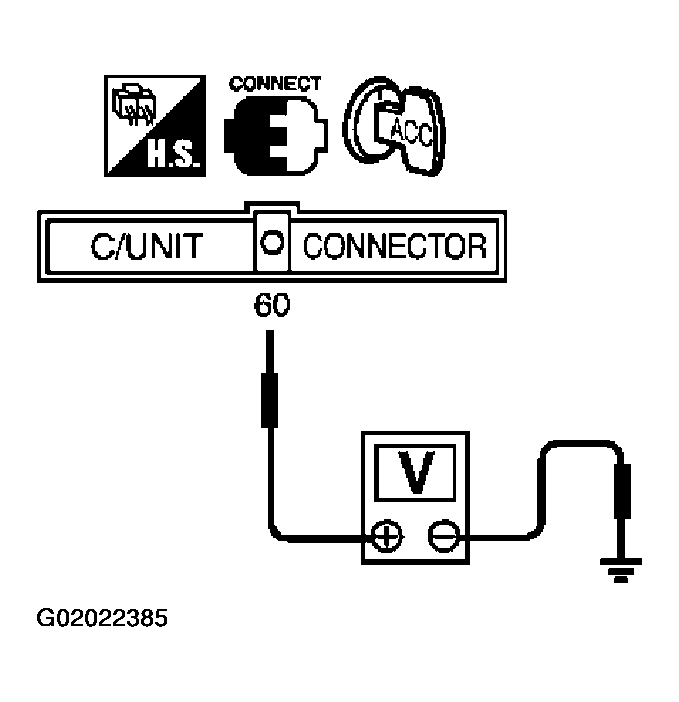

Fig 4: Check Voltage Between BCM Connector And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK >> ACC power is OK.

NG >> Check the following.
- 10A fuse [No. 21, located in fuse block (J/B)]
- Harness for open or short between BCM and fuse.
