Check Door Lock and Unlock Switch

WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK DOOR LOCK AND UNLOCK SWITCH

    With CONSULT-II

    See "DOOR LK SW-LK and UN" in DATA MONITOR mode with CONSULT-II.

    • When door lock and unlock switch is turned to lock:
      1. DOOK LK SW-LK : OFF --> ON
    • When lock and unlock switch is turned to unlock:
      1. DOOK LK SW-UN : OFF --> ON

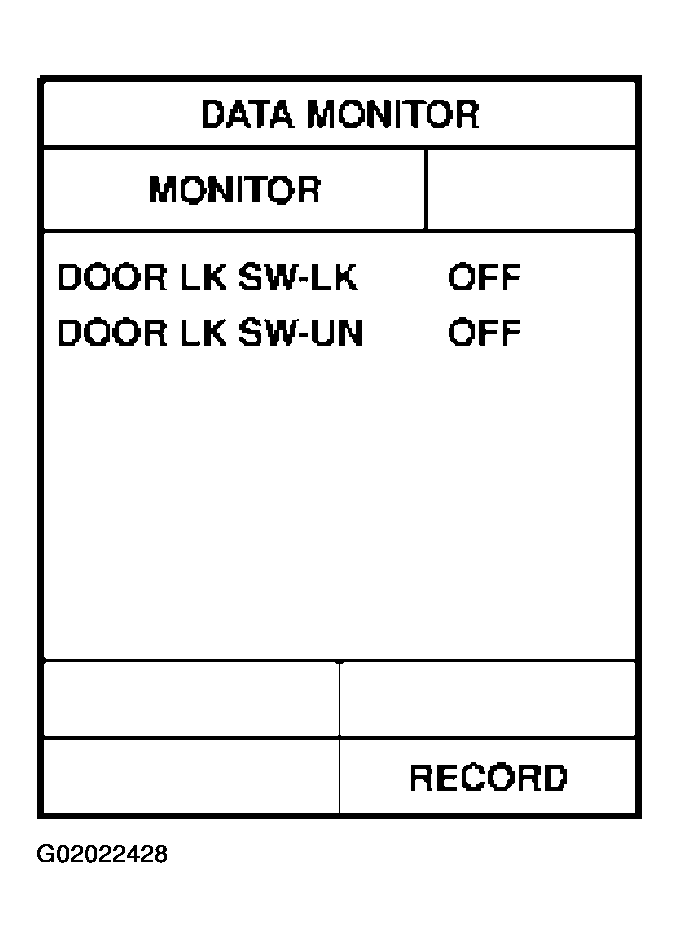

      Fig 1: Display Data Monitor Mode With Consult-II
      G02022428Courtesy of NISSAN MOTOR CO., U.S.A.

    Without CONSULT-II

    Check door lock and unlock switch operation is "SWITCH MONITOR" mode. Refer to "SWITCH MONITOR  ".

    OK or NG

    OK >> Door lock and unlock switch is OK.

    NG >> Replace door lock and unlock switch.
