Check Front Door Switch

WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

CHECK FRONT DOOR SWITCH INPUT SIGNAL
With CONSULT-II

Check front door switch ("DOOR SW-DR" and "DOOR SW-AS") in "DATA MONITOR" mode with CONSULT-II.

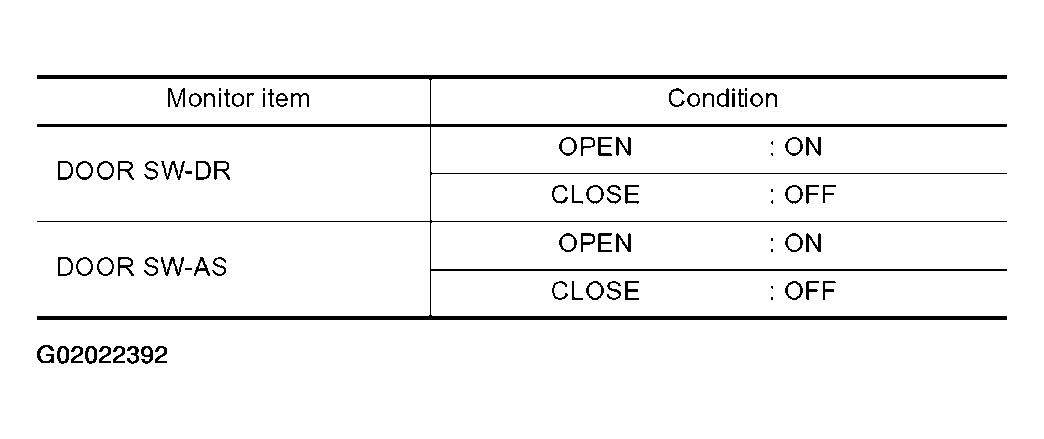

Fig 1: Front Door Switch Input Signal Table
Courtesy of NISSAN MOTOR CO., U.S.A.

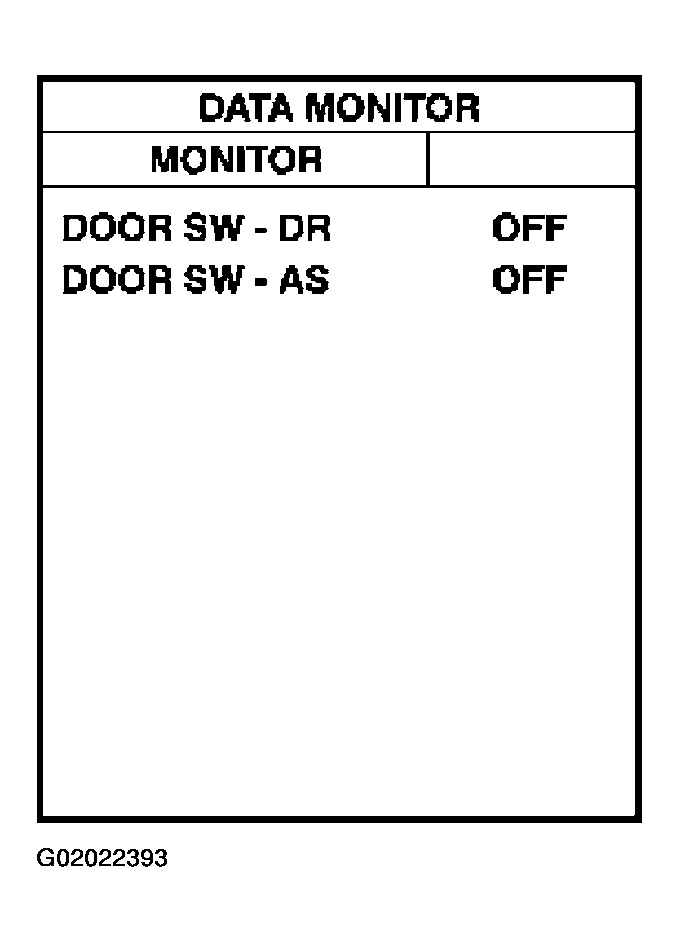

Fig 2: Display Data Monitor Sheet With Consult-II
Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Check front door switch in "SWITCH MONITOR" mode. Refer to "SWITCH MONITOR ".

OK or NG

OK >> Front door switch is OK.

NG >> GO TO 2
CHECK FRONT DOOR SWITCH
1. Turn ignition switch OFF.
2. Disconnect front door switch connector and BCM connector.

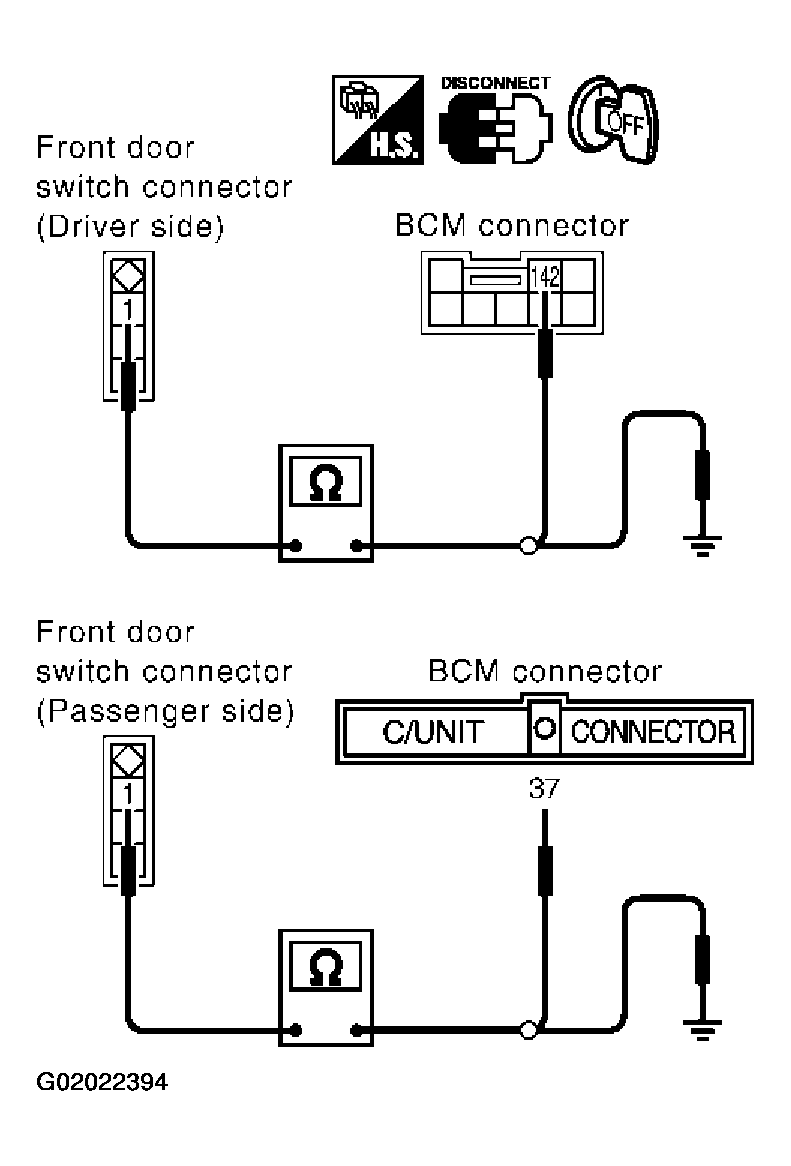

3. Check continuity between front door switch connector B20 (driver side), B220 (passenger side) terminal 1 (R/Y, LG) and BCM connector B4, M4 terminal 142 (R/Y), 37 (LG).
  1. Driver side door switch 1 (R/Y) - 142 (R/Y) :Continuity should exist.
  2. Passenger side door switch 1 (LG) - 37 (LG) :Continuity should exist.
4. Check continuity between front door switch connector B20, B220 terminal 1(R/Y, LG) and ground.
  1. Each door switches 1 (R/Y, LG) - Ground :Continuity should not exist.
OK or NG

OK >> GO TO 3.

NG >> Repair or replace harness.
CHECK FRONT DOOR SWITCH
Check continuity between front door switch connector B20 (driver side), B220 (passenger side) terminal 1 and ground part of door switch.

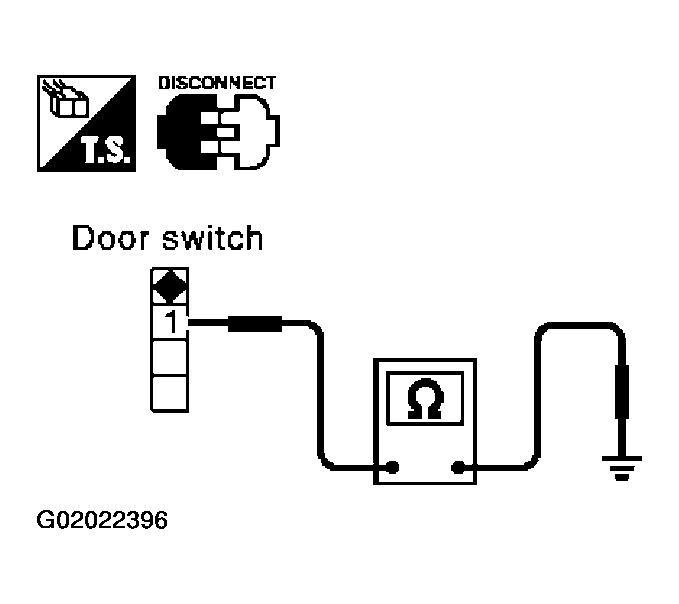

Fig 4: Checking Front Door Switch Terminal
Courtesy of NISSAN MOTOR CO., U.S.A.

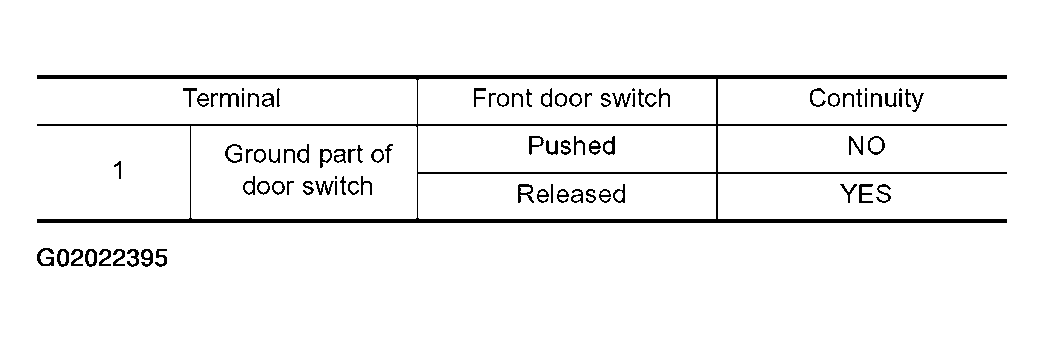

Fig 5: Identifying Front Door Switch Table
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK >> Check door switch case ground.

NG >> Replace malfunction front door switch.
