Inspection with CONSULT-II

WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

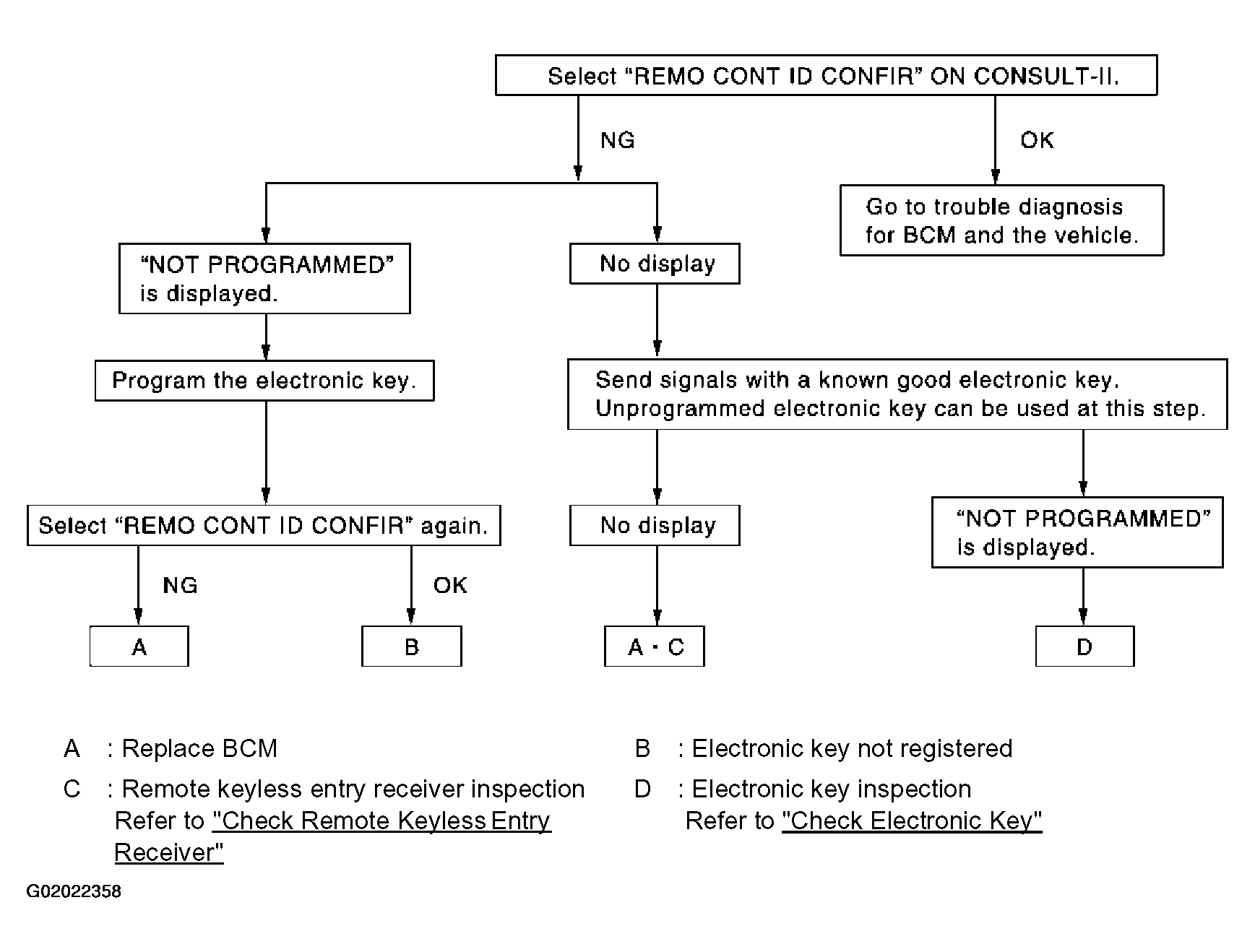

Fig 1: Identifying Inspection Flow Chart With Consult-II
G02022358Courtesy of NISSAN MOTOR CO., U.S.A.
