Removal and Installation of Remote Keyless Entry Receiver: Removal

WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear pillar finisher upper (LH). Refer to "REMOVAL AND INSTALLATION ".
  2. Disconnect the remote keyless entry receiver connector, mounting screw and remove the remote keyless entry receiver.

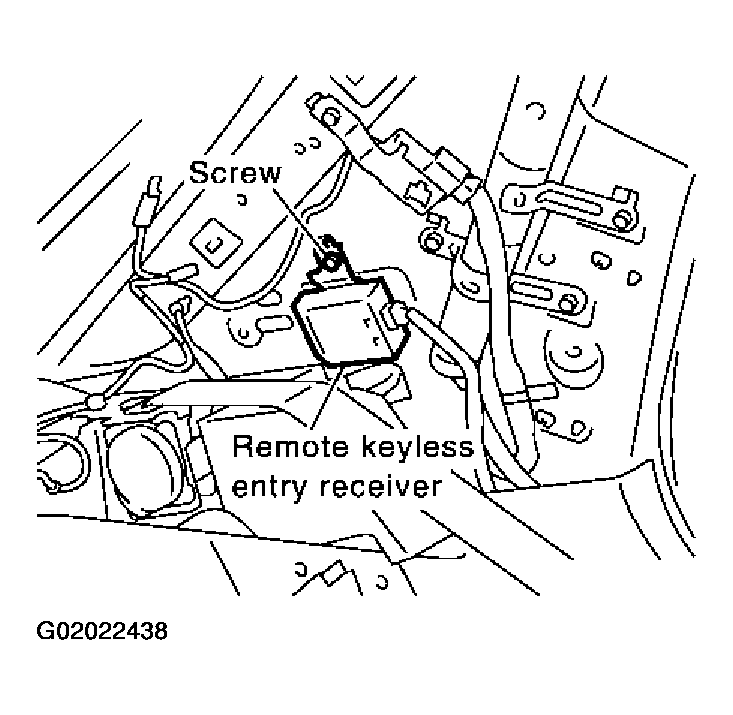

    Fig 1: Removing and Installing of Remote Keyless Entry Receiver
    G02022438Courtesy of NISSAN MOTOR CO., U.S.A.
