Data Monitor (Signal Monitor)

WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

Displays status of the vehicle signal input to the AV and NAVI control unit. (Refer to "CONFIRMATION/ADJUSTMENT MODE " for operation conditions for the connections to be indicated.)

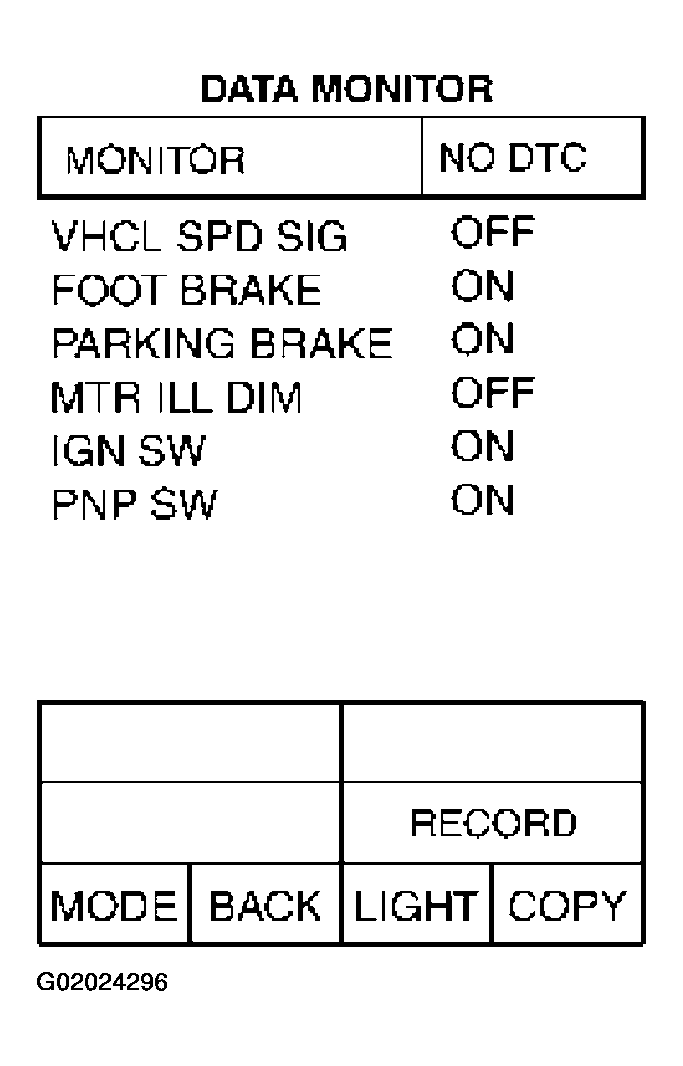

Fig 1: Data Monitor Display
Courtesy of NISSAN MOTOR CO., U.S.A.
For each signal, a comparison of actual operating status and the status recognized by the system can be checked.

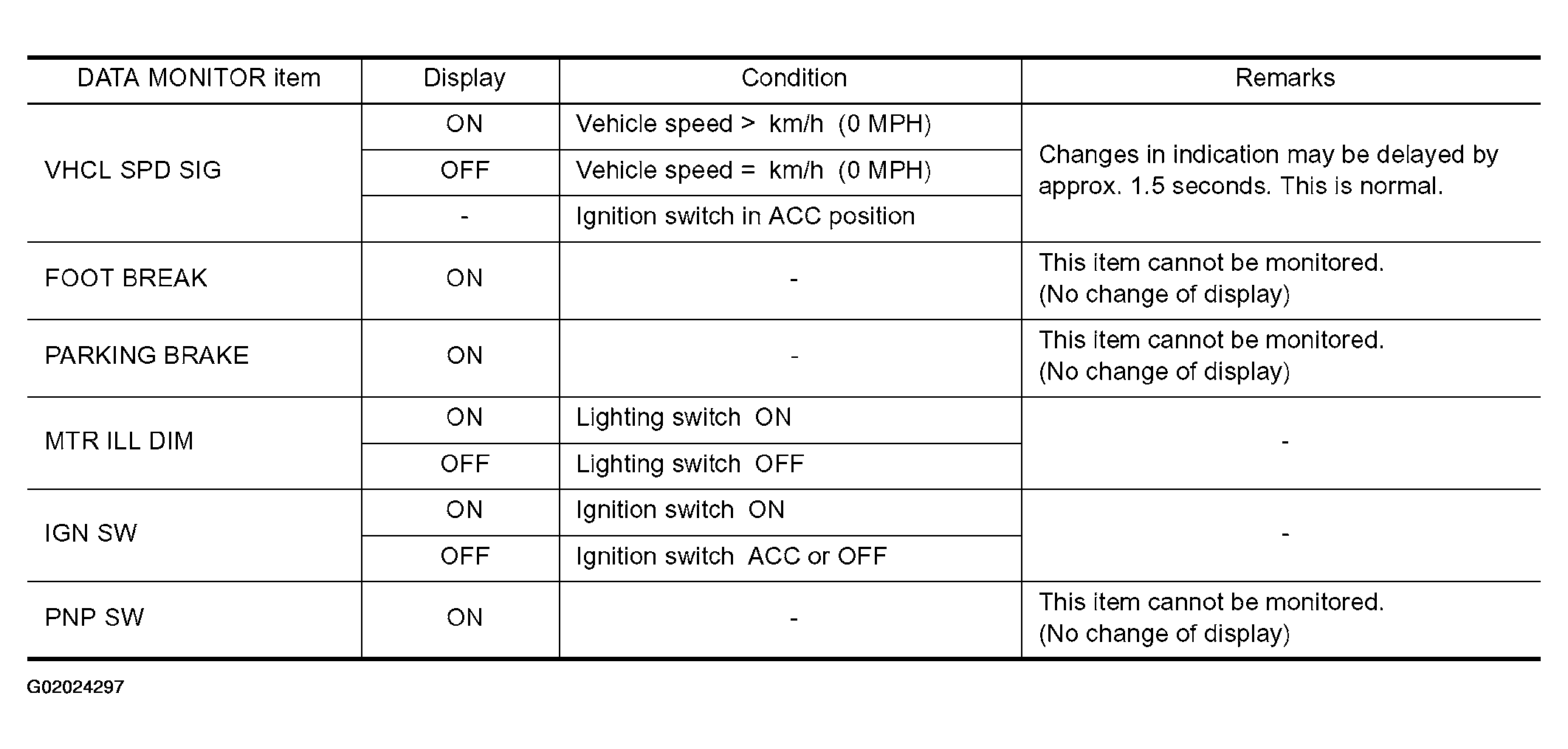

Fig 2: Data Monitor Item Display Condition Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
