Operation Procedure

WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the ignition switch OFF, connect "CONSULT-II" and "CONSULT-II CONVERTER" to the data link connector, and turn ignition switch ON.

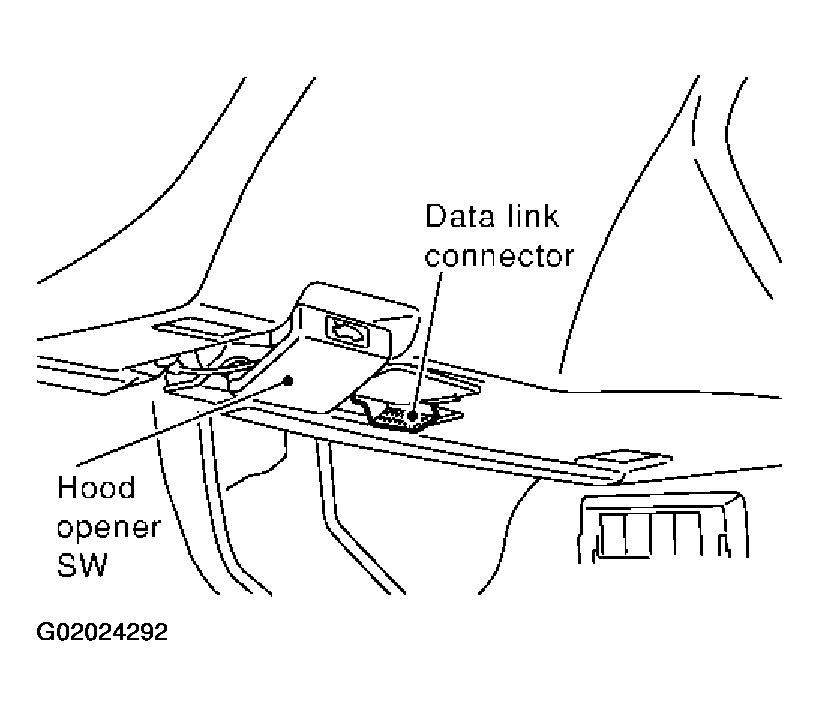

    Fig 1: Locating Data Link Connector
    G02024292Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Touch "START(NISSAN BASED VHCL)".

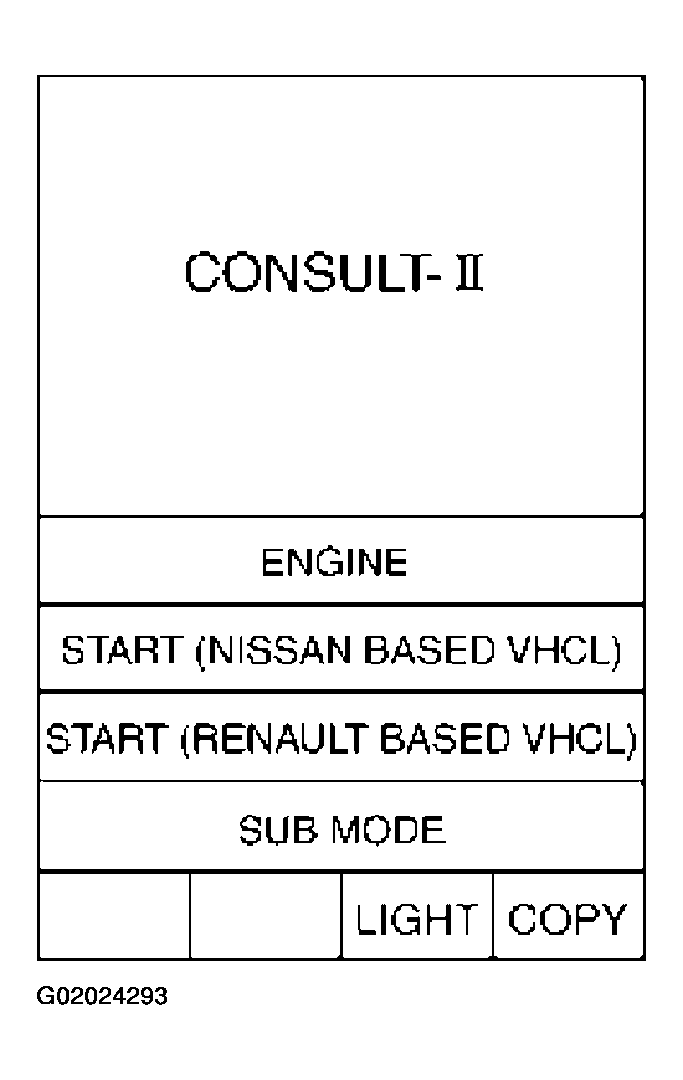

    Fig 2: CONSULT-II Display - Touch START (NISSAN BASED VHCL)
    G02024293Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Touch "MULTIAV"

    If "MULTIAV" is not indicated, go to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

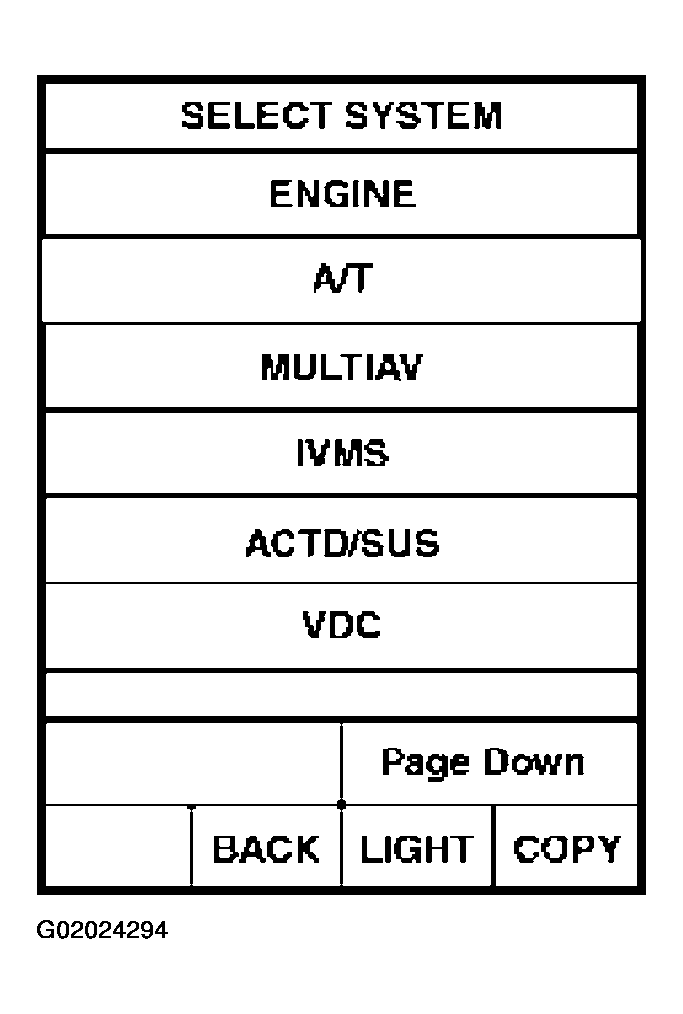

    Fig 3: CONSULT-II Display - Touch MULTIAV
    G02024294Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Select "VERSION", "SELF-DIAG RESULTS" or "SIGNAL MONITOR".
