ILLUMINATION CONTROL SIGNAL CHECK
1. Turn ignition switch ON.
2. Check voltage between AV and NAVI control unit and ground.

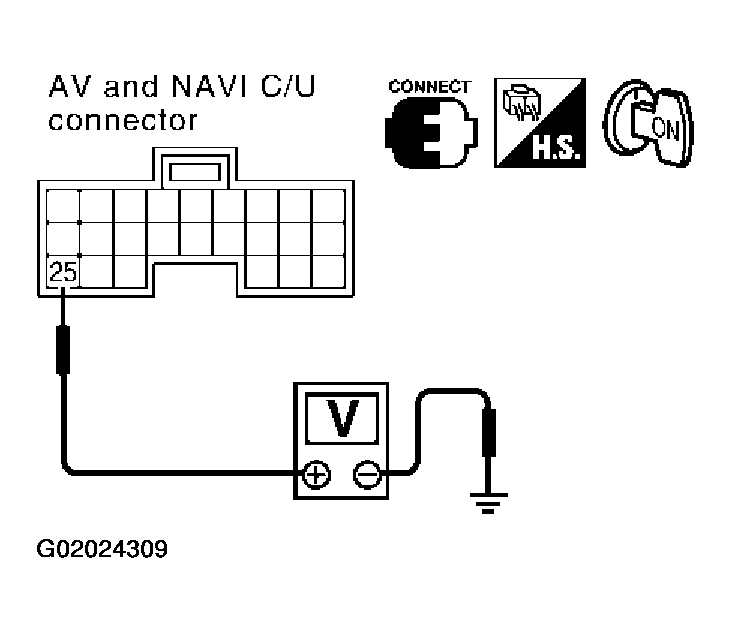

  Fig 1: Testing AV & NAVI Control Unit Illumination Control Signal
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG

OK >> Replace AV and NAVI control unit.

NG >> Check harness for open or short between AV and NAVI control unit and BCM.

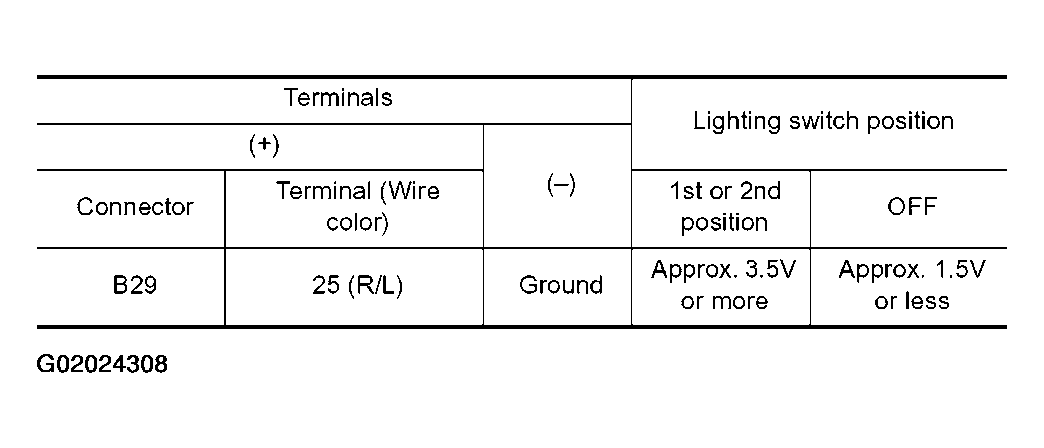

Fig 2: Checking Voltage Between AV & NAVI Control Unit And Ground
