Reverse Signal Check

WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

REVERSE LAMP CHECK
1. Turn ignition switch ON.
2. A/T shift selector lever into R-position. Does "R" in the shift position indicator come on?
YES or NO

YES >> GO TO 2.

NO >> Check back-up lamp system. Refer to "BACK-UP LAMP ".
REVERSE SIGNAL CHECK
With the selector lever in R-position, Check voltage between AV and NAVI control unit and ground.

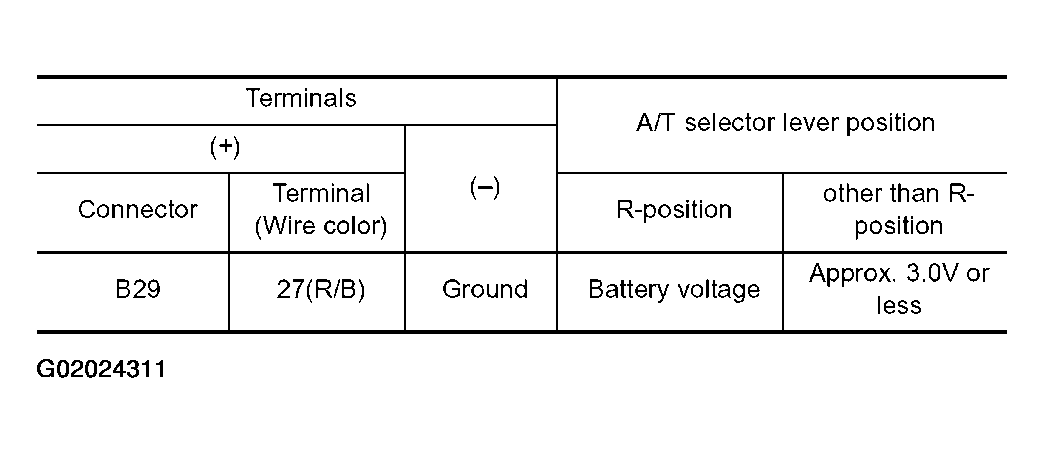

Fig 1: Testing AV & NAVI Control Unit Reverse Signal
Courtesy of NISSAN MOTOR CO., U.S.A.

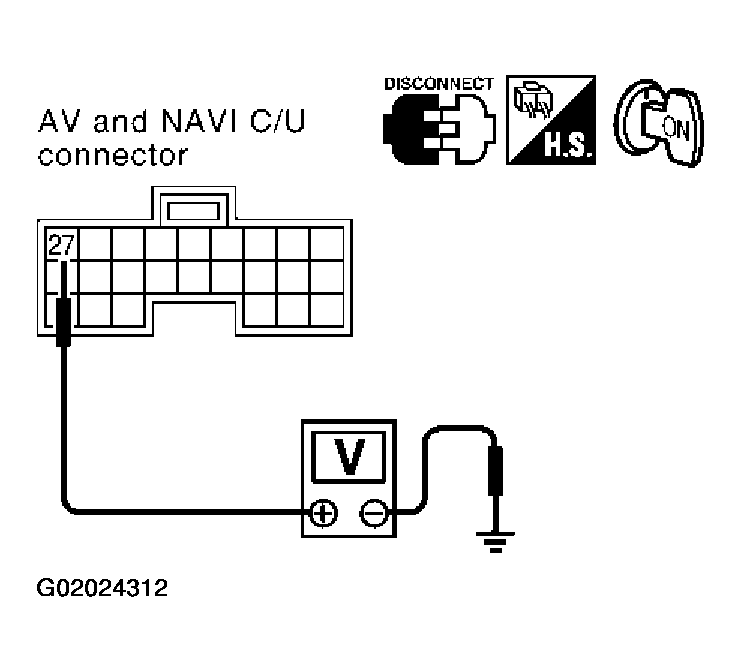

Fig 2: Checking Voltage Between AV And NAVI Control Unit And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK >> Replace AV and NAVI control unit.

NG >> Check harness for open or short between AV and NAVI control unit and back- up lamp relay.
