Map Display

WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

Function of each icon is as follows:

Azimuth indication.
Position marker.
- The tip of the arrow shows the current position. The shaft of the arrow indicates the direction in which the vehicle is traveling.
GPS reception signal (indicates current reception conditions).
Distance display (shows the distance in a reduced scale).

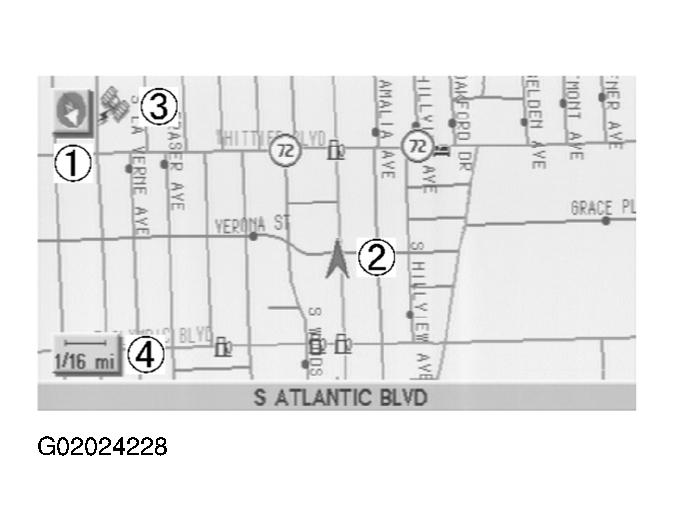

Fig 1: Navigation System Map Display
Courtesy of NISSAN MOTOR CO., U.S.A.
