Terminals And Reference Value For Av And NAVI Control Unit
WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

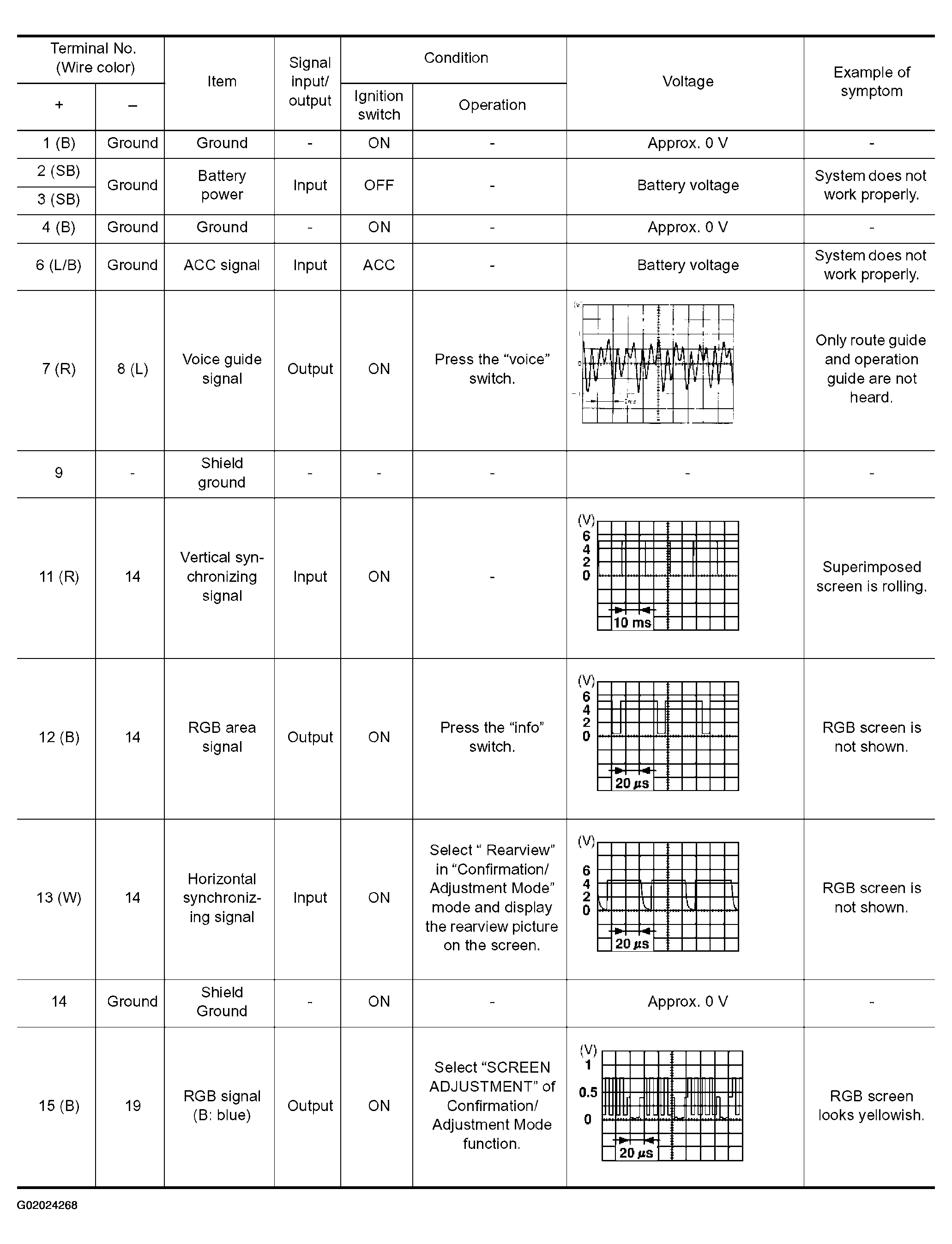

Fig 1: Pin Voltages & Reference Value Chart (AV And NAVI Control Unit - 1 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

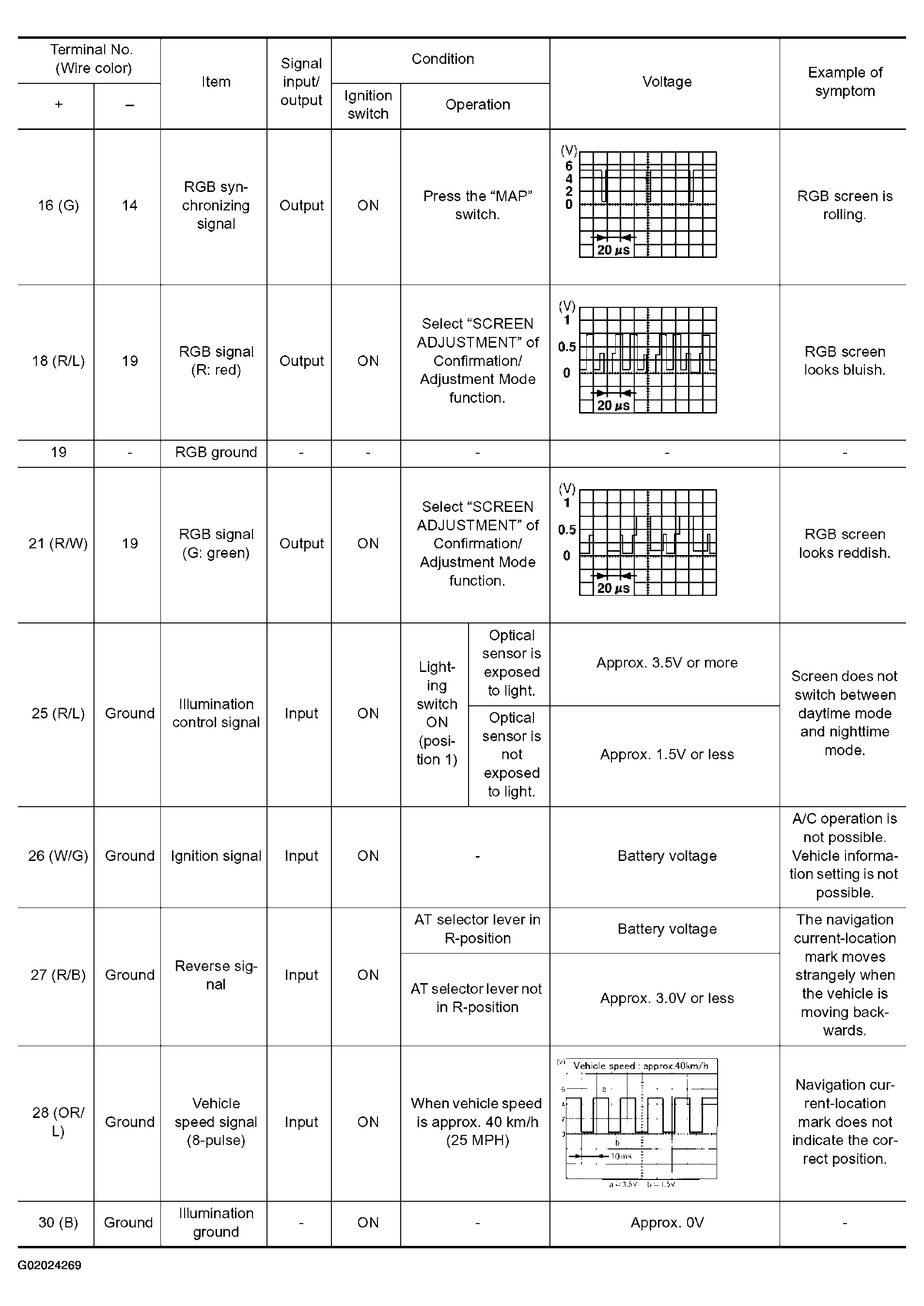

Fig 2: Pin Voltages & Reference Value Chart (AV And NAVI Control Unit - 2 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

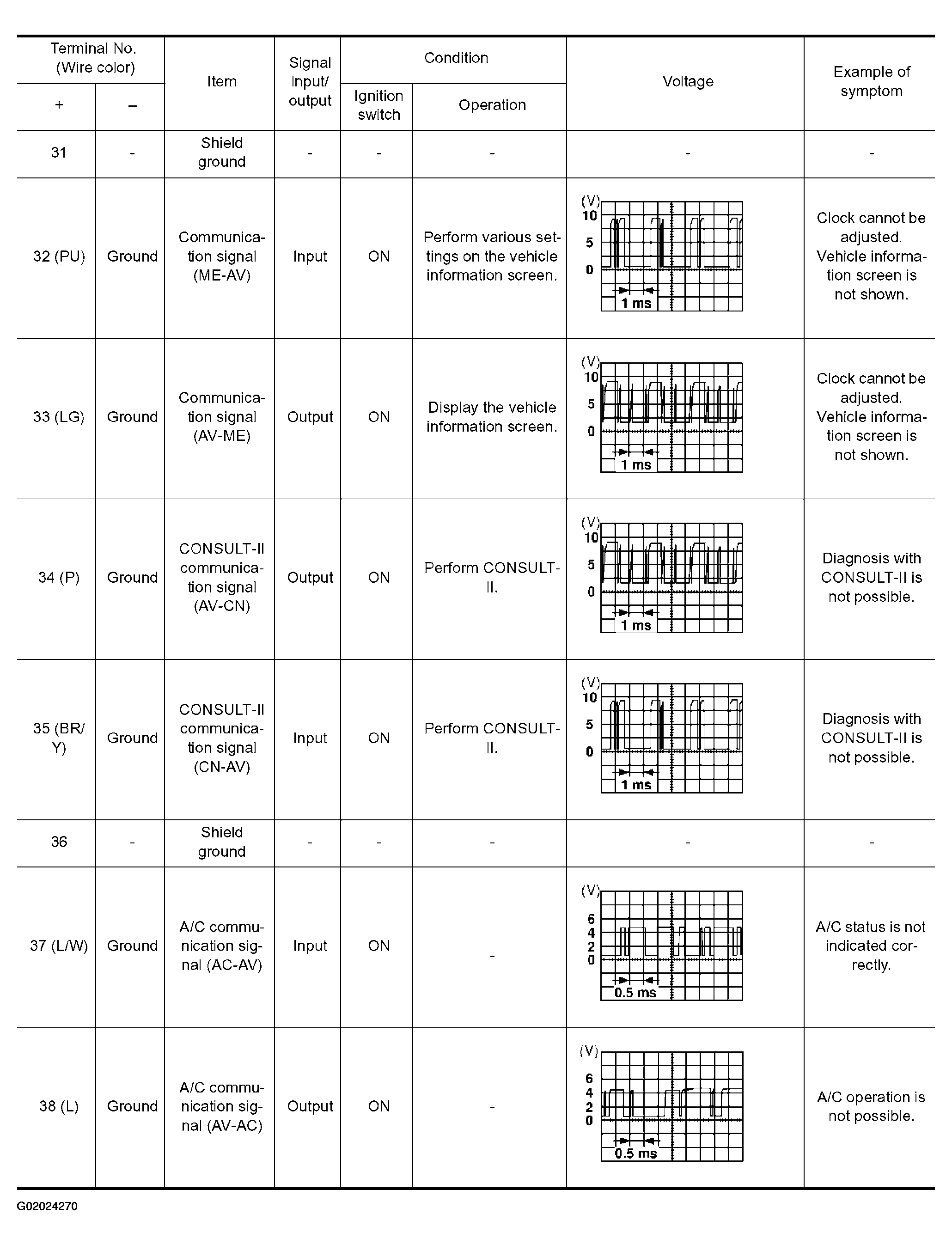

Fig 3: Pin Voltages & Reference Value Chart (AV And NAVI Control Unit - 3 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

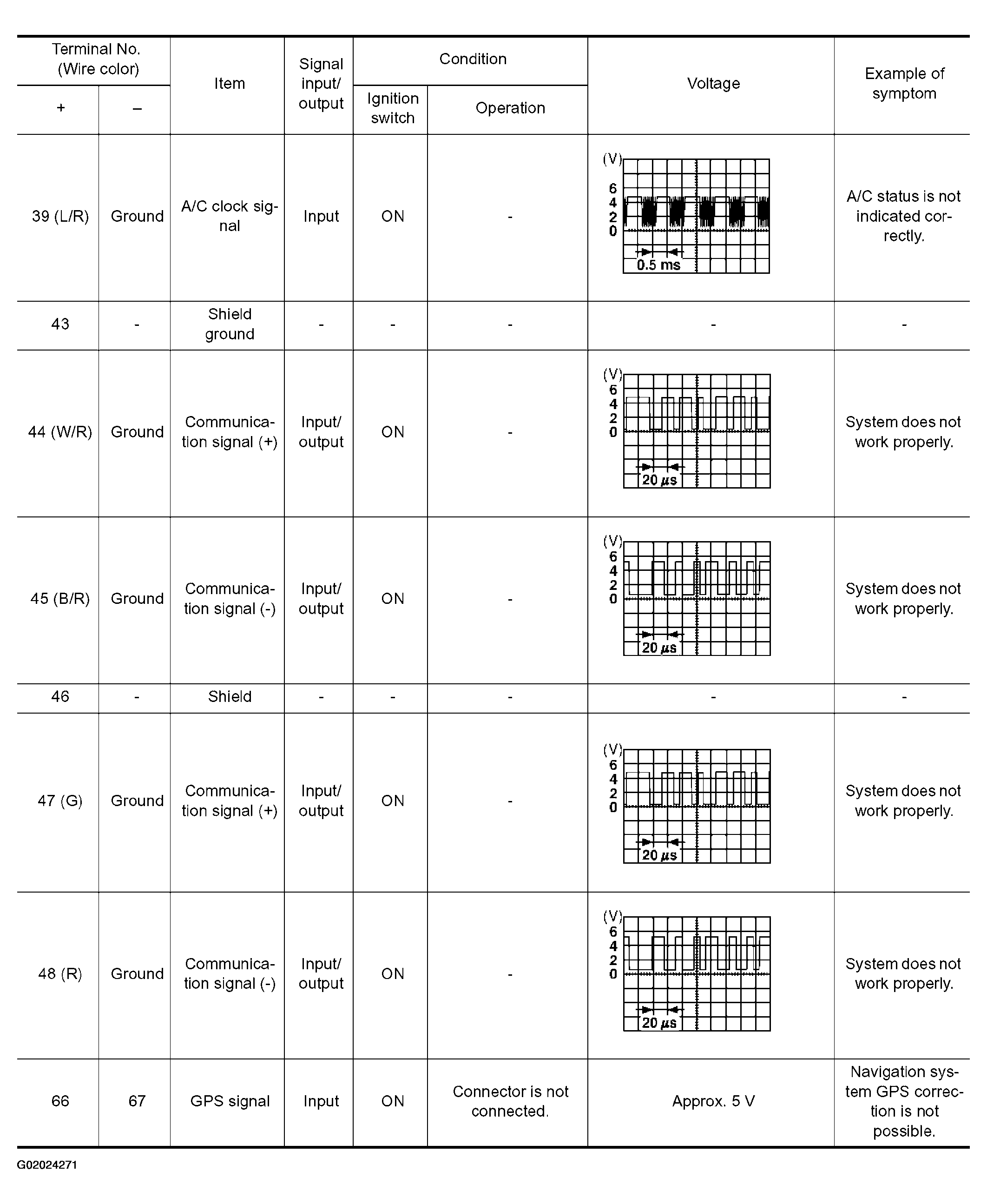

Fig 4: Pin Voltages & Reference Value Chart (AV And NAVI Control Unit - 4 Of 4)
