"Multi Remote ENT"

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch "OFF".
Connect "CONSULT-II" to the data link connector.

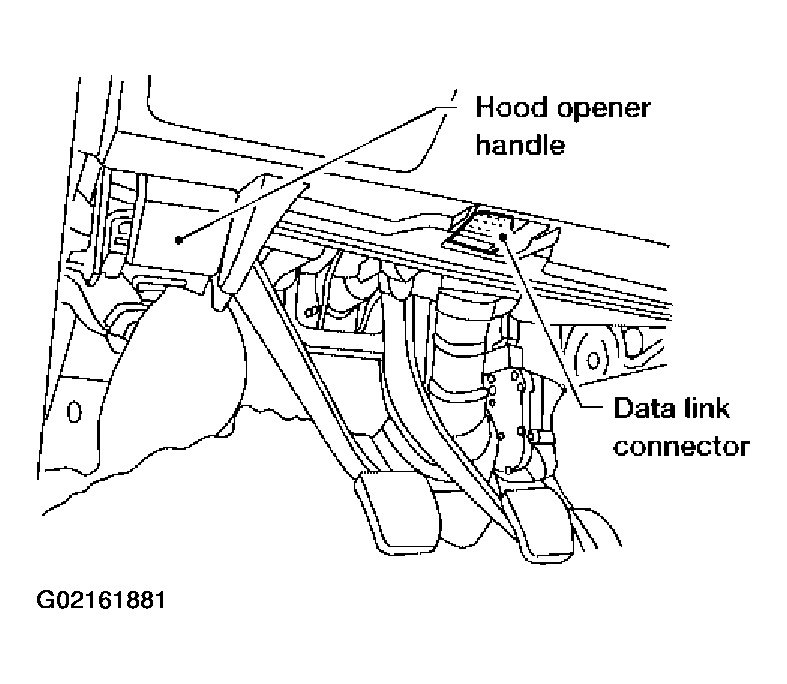

Fig 1: Locating Data Link Connector And Hood Opener Handle
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch "ON".
Touch "START".

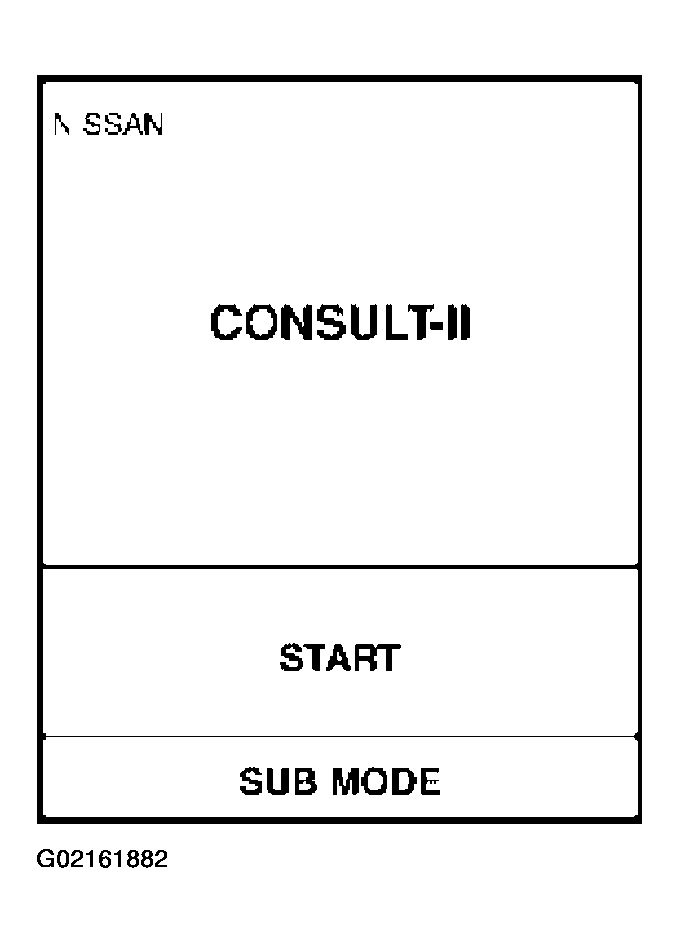

Fig 2: Displaying Start Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "BCM".

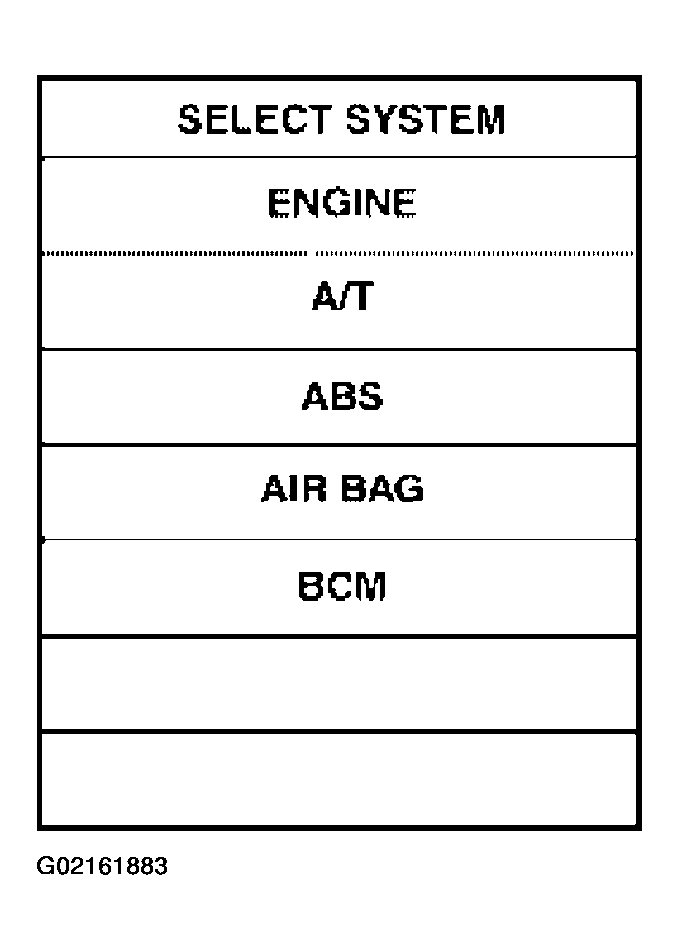

Fig 3: Displaying Select System Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "MULTI REMOTE ENT".

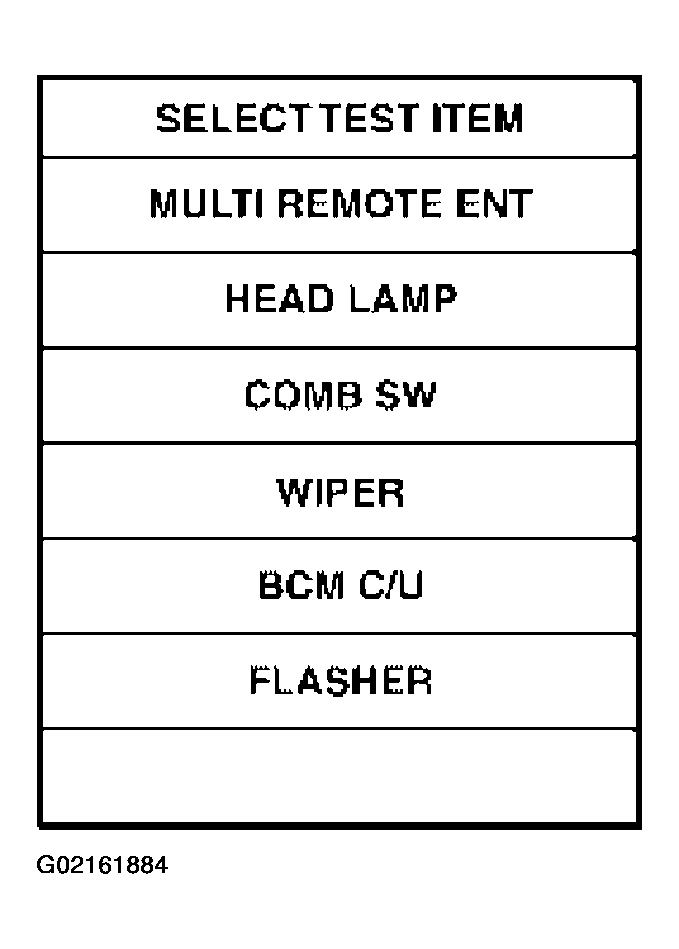

Fig 4: Displaying Select Test Item Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
Select diagnosis mode.
"DATA MONITOR", "ACTIVE TEST" and "WORK SUPPORT" are available.

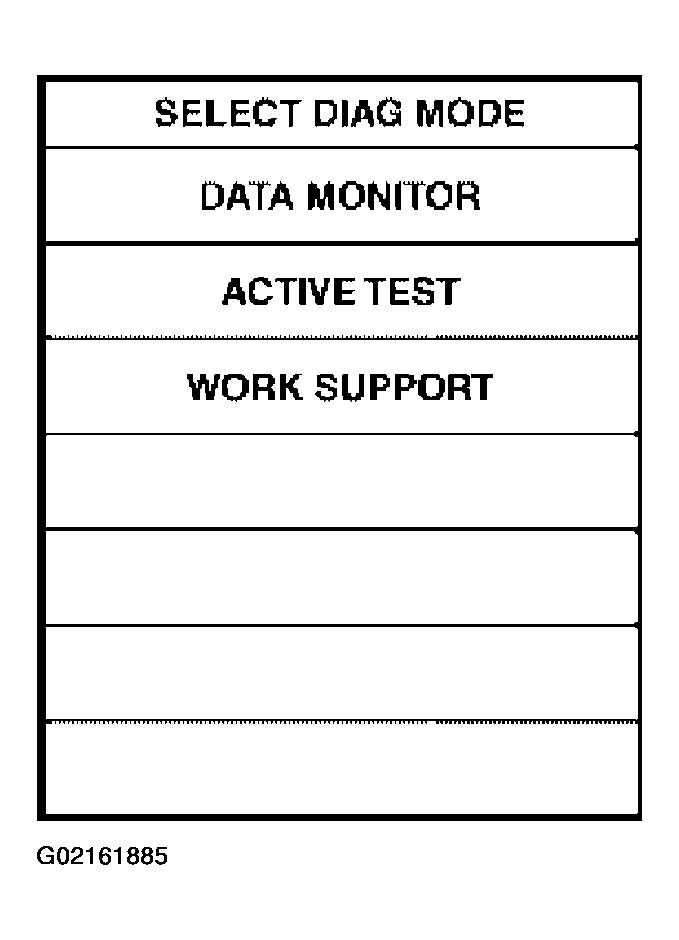

Fig 5: Displaying Diagnosis Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
