Key Fob Id Set Up With Consult-II

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If a key fob is lost, the ID code of the lost key fob must be erased to prevent unauthorized use. When the ID code of a lost key fob is not known, all controller ID codes should be erased. After all ID codes are erased, the ID codes of all remaining and/or new key fobs must be re-registered.

Turn ignition switch "OFF".
Connect "CONSULT-II" to the data link connector.

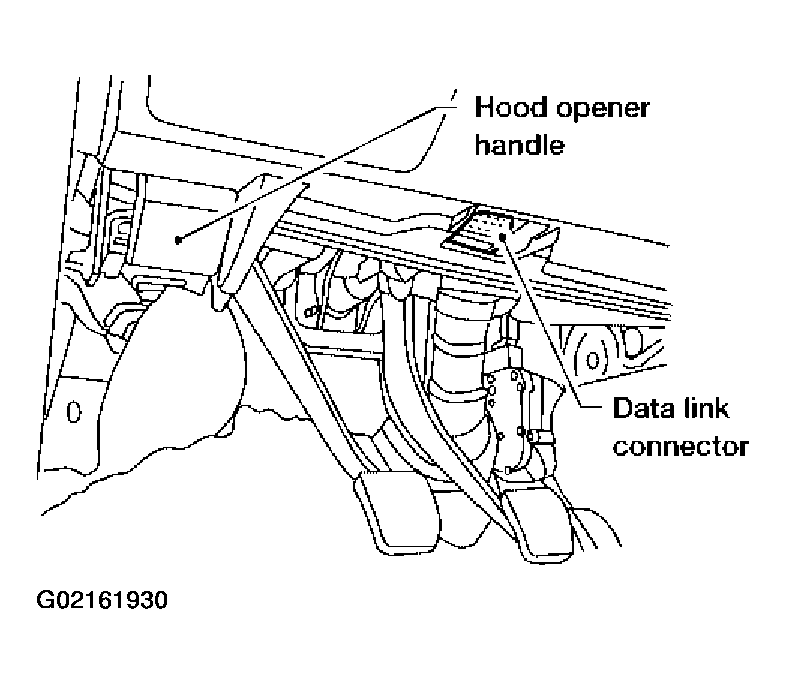

Fig 1: Locating Data Link Connector And Hood Opener Handle
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch ON.
Touch "START".

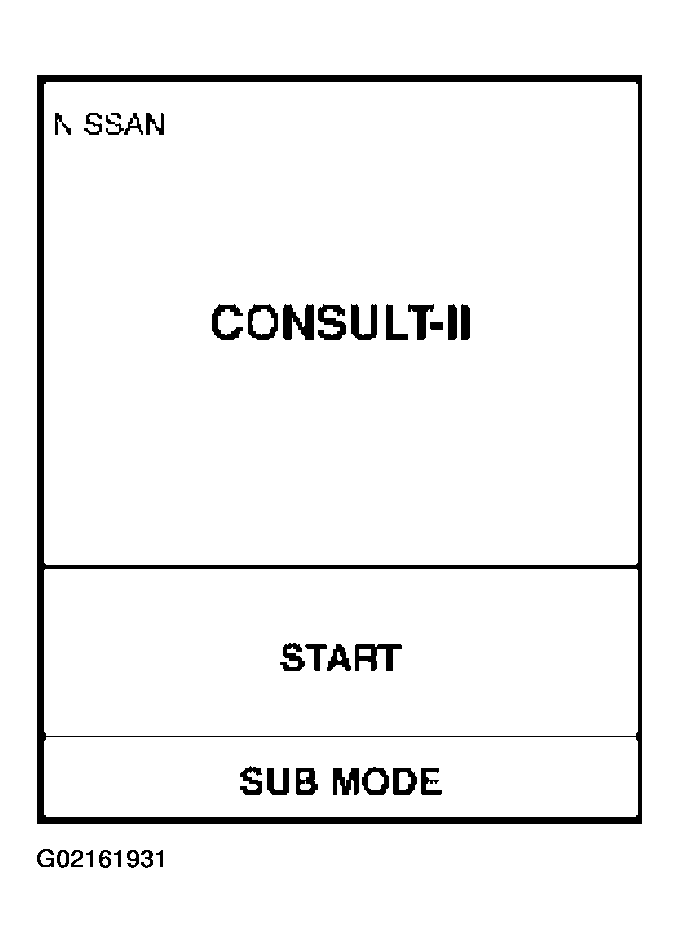

Fig 2: Displaying Start Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "BCM".

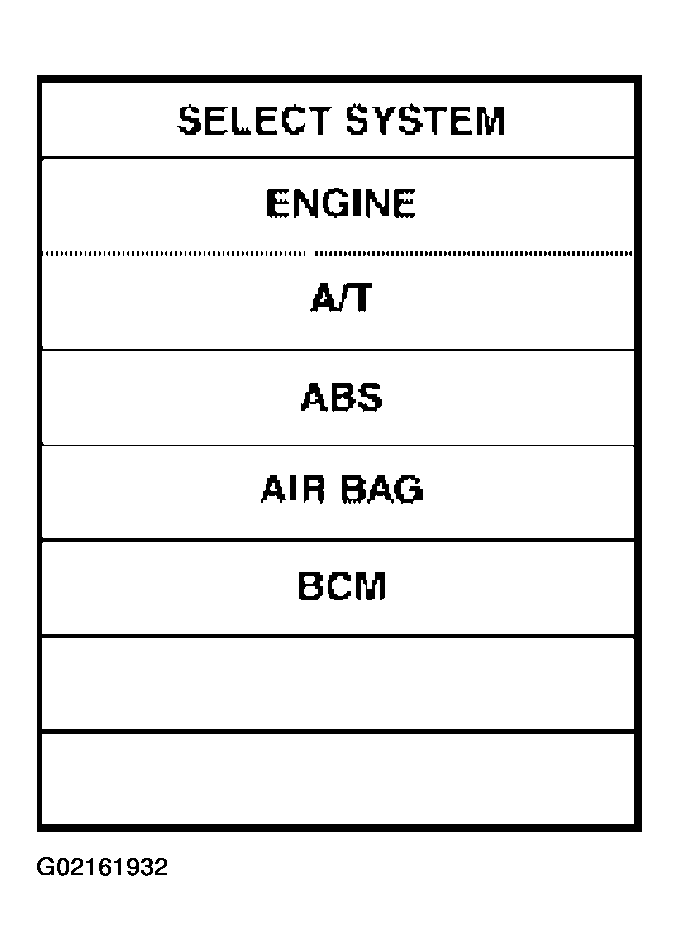

Fig 3: Displaying Select System Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "MULTI REMOTE ENT".

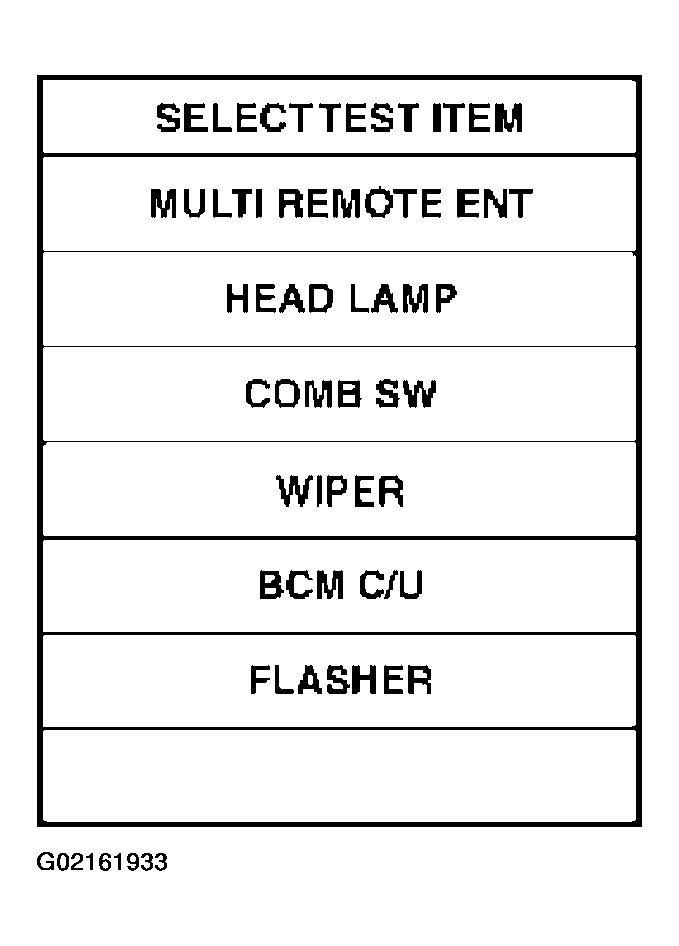

Fig 4: Displaying Select Test Item Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "WORK SUPPORT".

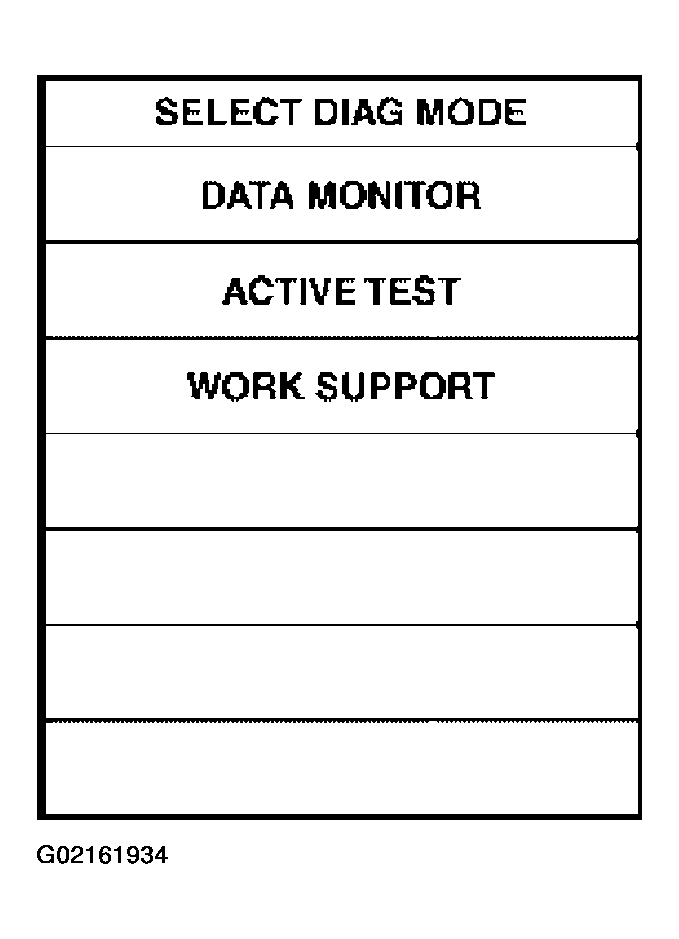

Fig 5: Displaying Select Diagnostic Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
The items are shown on the figure at left can be set up.
- "REMO CONT ID CONFIR"
  Use this mode to confirm if a key fob ID code is registered or not.
- "REMO CONT ID REGIST"
  Use this mode to register a key fob ID code.

  NOTE: Register the ID code when key fob or BCM is replaced, or when additional key fob is required.
- "REMO CONT ID ERASUR"
  Use this mode to erase a key fob ID code.

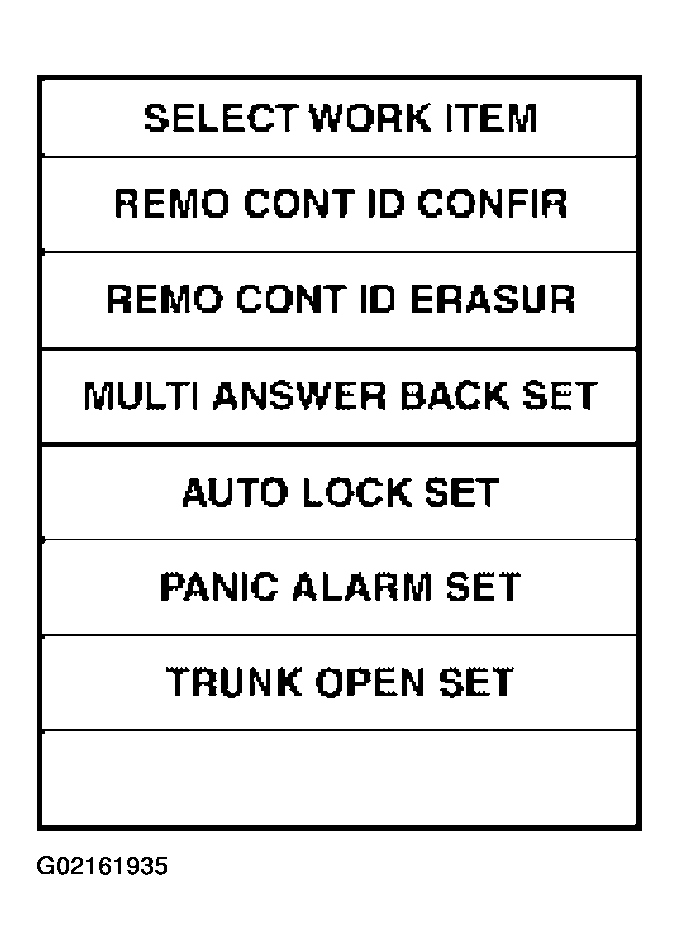

Fig 6: Displaying Select Work Item Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
