Interior Lamp Operation Check

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

CHECK INTERIOR LAMP
Check if the interior lamp switch is in the ON position and the lamp illuminates.

Does interior lamp illuminate?
1. Yes: GO TO 2
2. No: Check interior room lamp circuit. Refer to "INTERIOR ROOM LAMP ".
CHECK INTERIOR LAMP OPERATION
With CONSULT-II
1. Select "ACTIVE TEST" in "MULTI-REMOTE CONT SYS" with CONSULT-II.
2. Select "INT ILLUM" and touch ON.
  Interior lamp should illuminate.

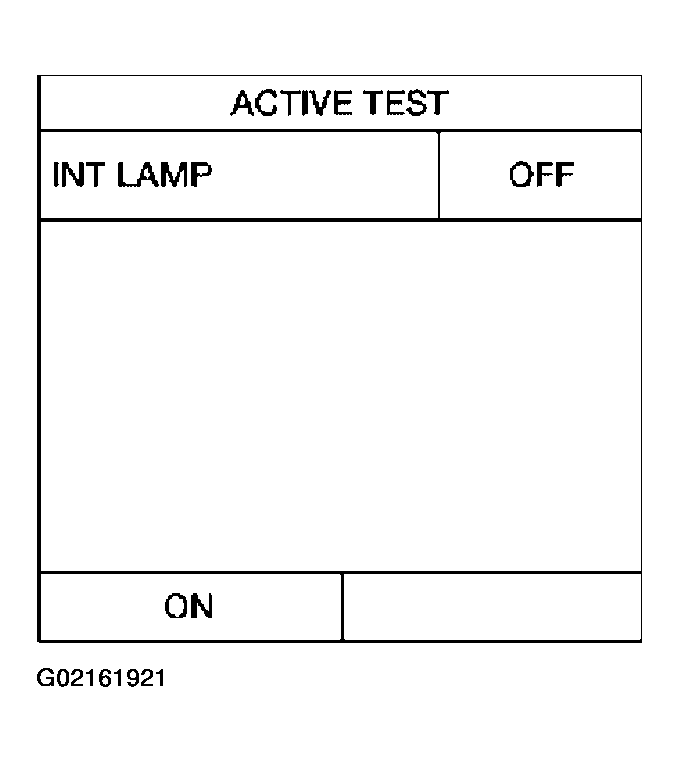

  Fig 1: Checking Interior Lamp Operation With Consult-II
  Courtesy of NISSAN MOTOR CO., U.S.A.
Without CONSULT-II

Push unlock button of key fob with all doors closed and driver's door locked, and check voltage between BCM harness connector M20 terminal 32 (R) and ground.

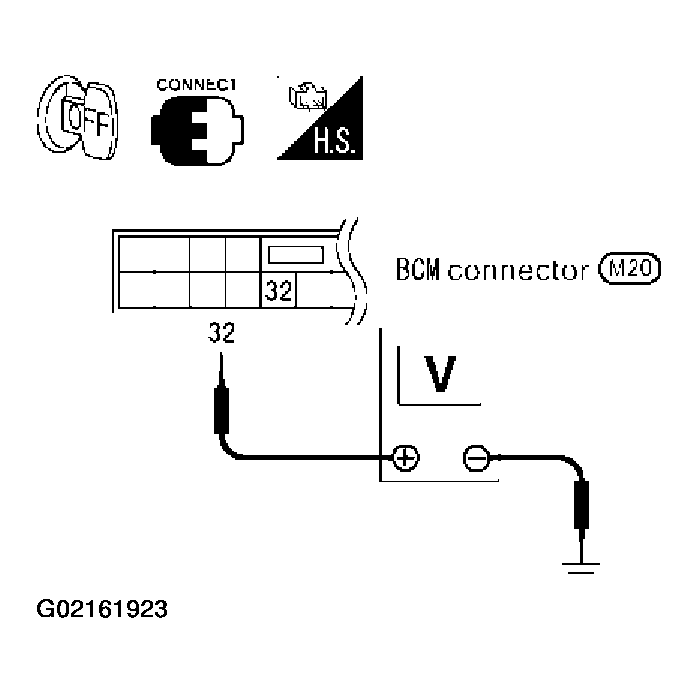

Fig 2: Checking Interior Lamp Operation Without Consult-II (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Checking Interior Lamp Operation Without Consult-II (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK: System is OK.
2. NG: Check harness open or short between BCM and interior lamp.
