CONSULT-II Inspection Procedure: Notes

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

"RETAINED PWR"

Turn ignition switch "ON".
Connect "CONSULT-II" to the data link connector.

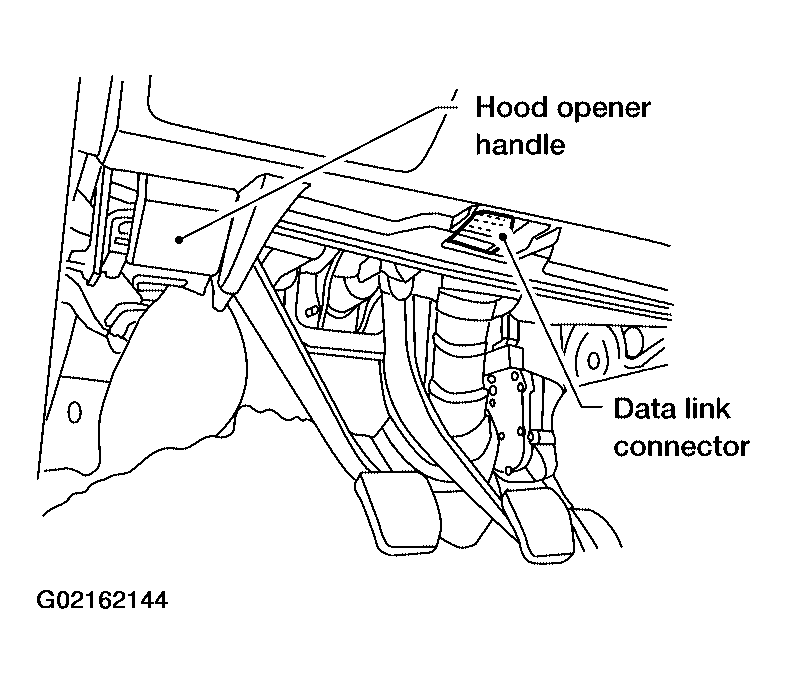

Fig 1: Locating Data Link Connector And Hood Opener Handle
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch "ON".
Touch "START".

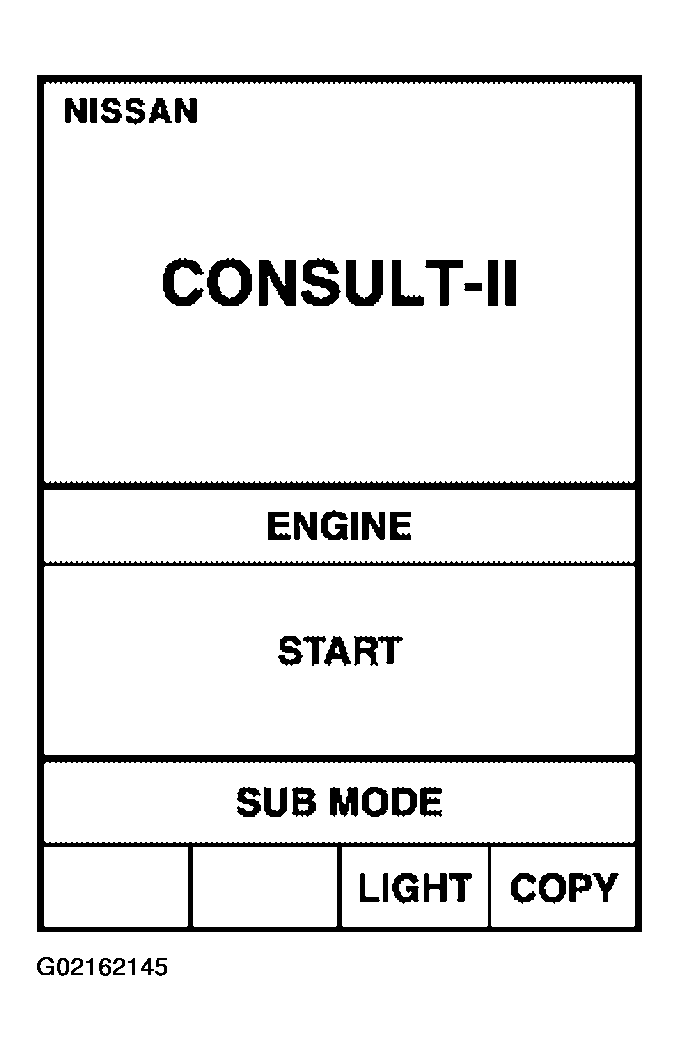

Fig 2: Displaying Start Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "BCM".

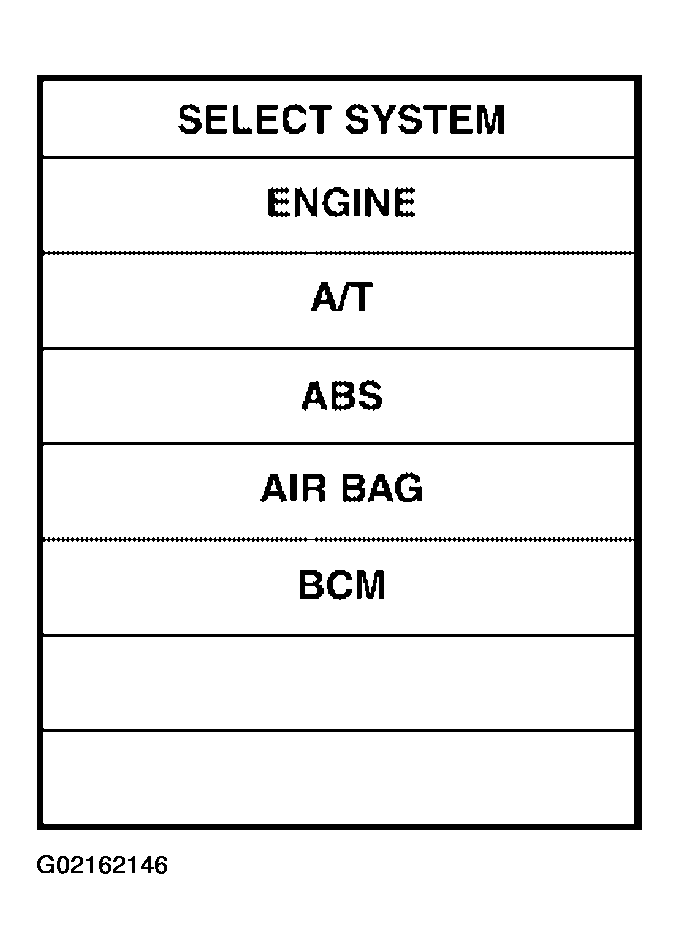

Fig 3: Displaying Select System Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "RETAINED PWR".

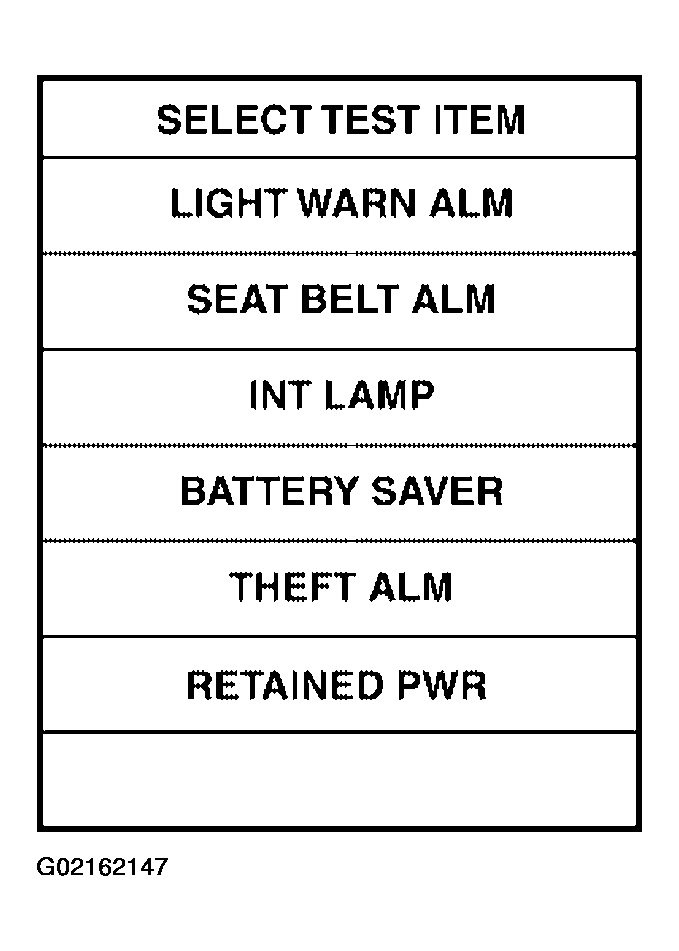

Fig 4: Displaying Select Test Item Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
Select diagnosis mode.
"ACTIVE TEST" is available for the power window.

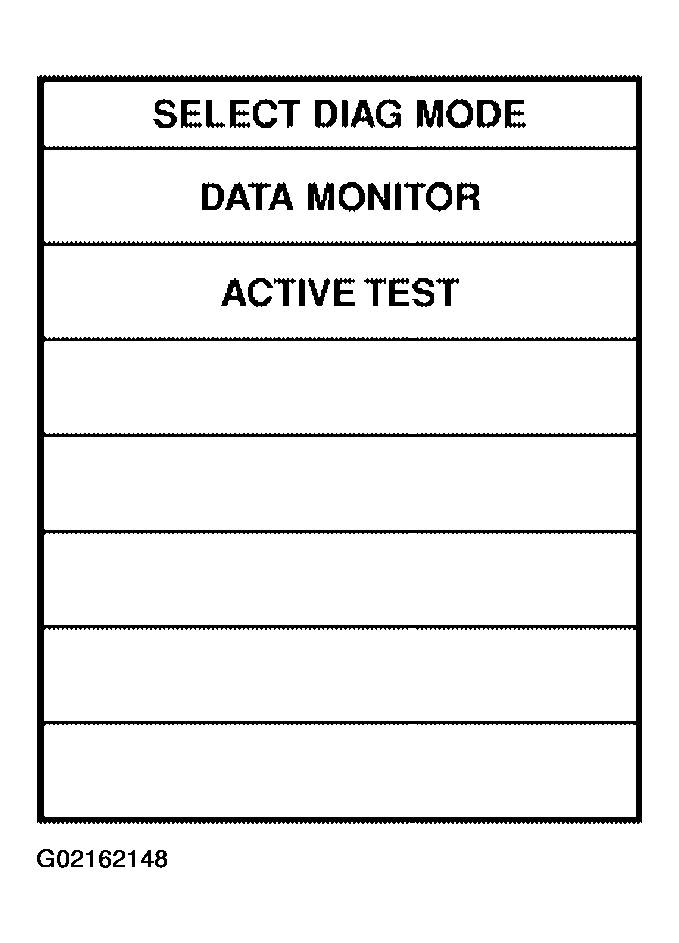

Fig 5: Displaying Select Diagnosis Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
