CHECK ACC POWER
With CONSULT-II

Check ACC power (ACC ON SW) in DATA MONITOR mode with CONSULT-II.

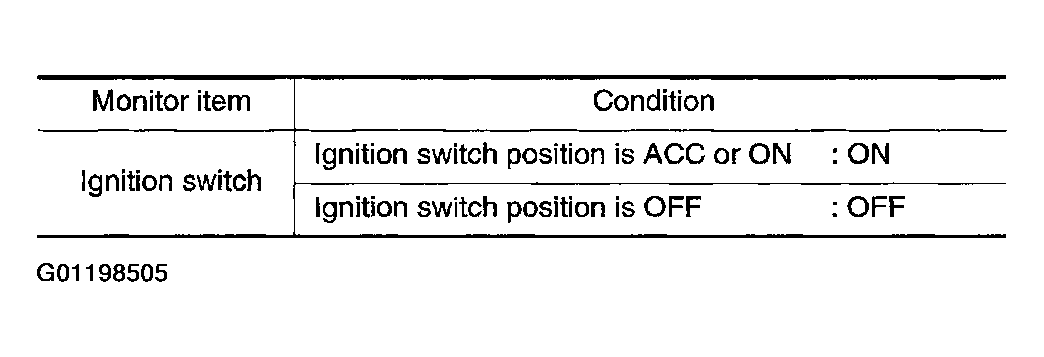

Fig 1: Monitor Item Conditions
Courtesy of NISSAN MOTOR CO., U.S.A.

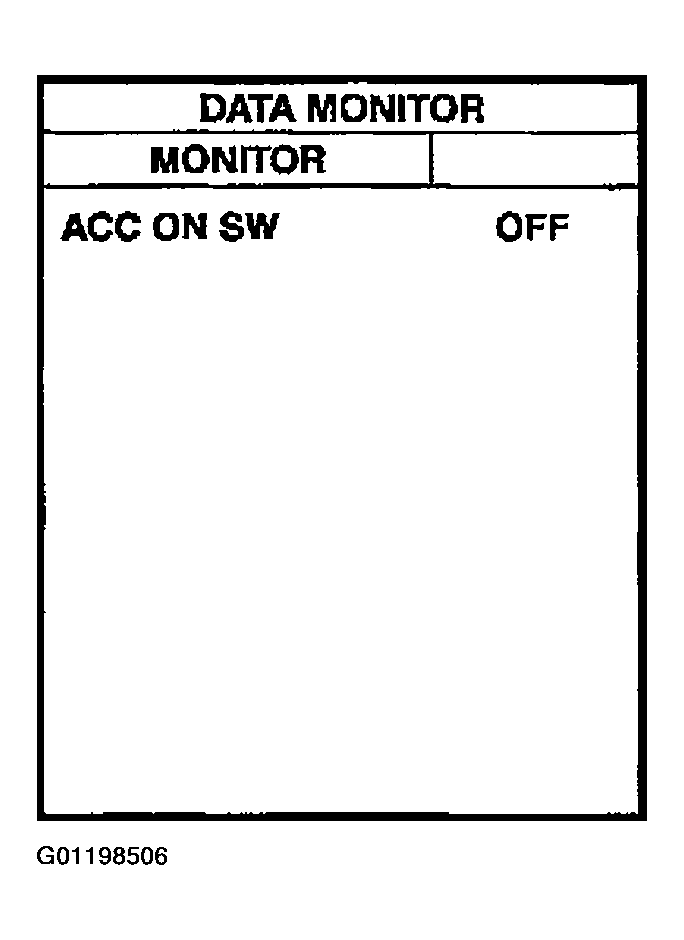

Fig 2: CONSULT-II DATA MONITOR Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Check voltage between BCM connector and ground.

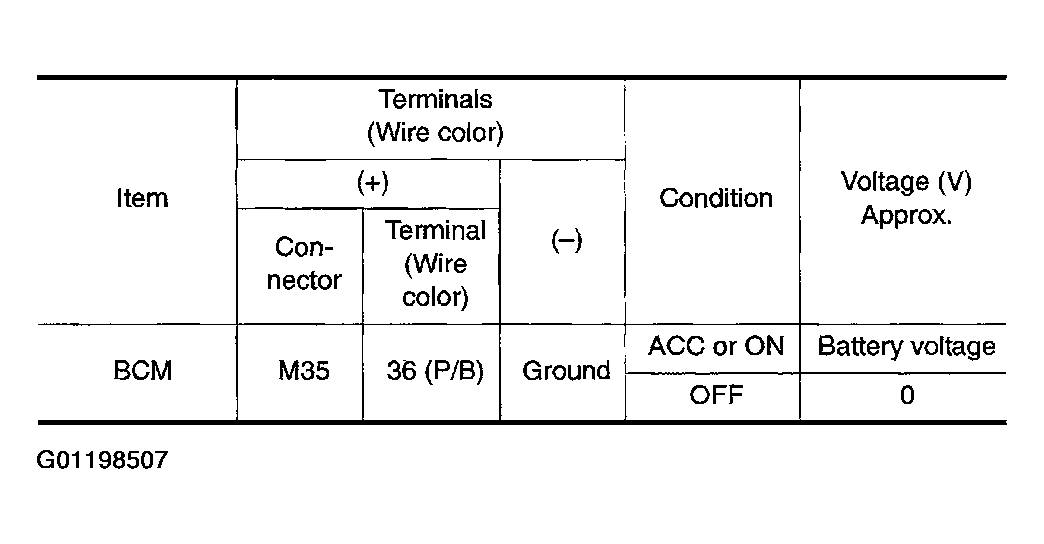

Fig 3: BCM Voltage Between Based On Conditions
Courtesy of NISSAN MOTOR CO., U.S.A.

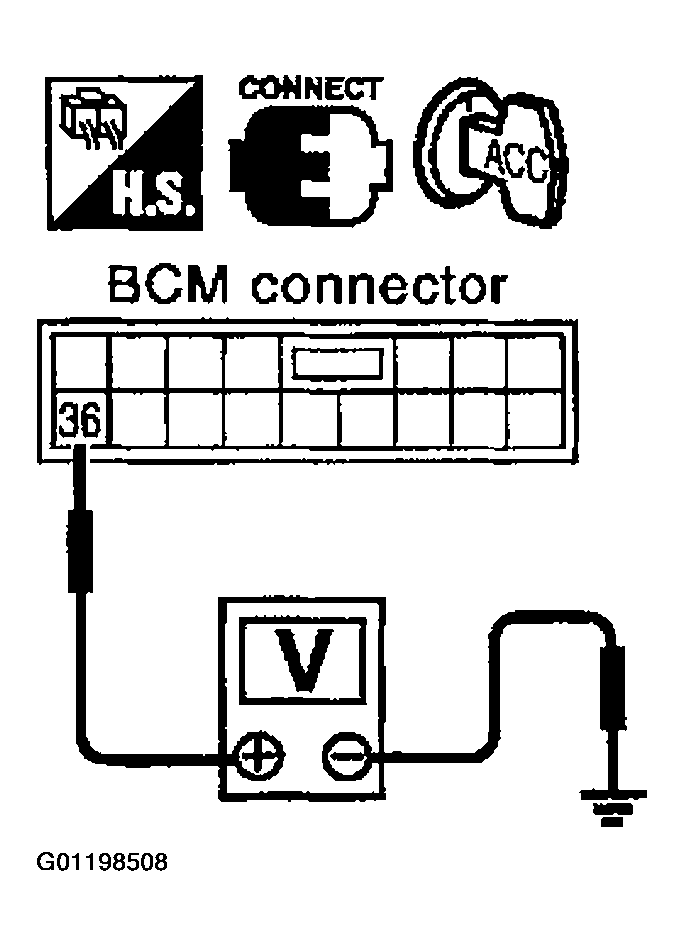

Fig 4: Checking Voltage Between BCM And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK: ACC power circuit is OK.
2. NG: Check the following.
  - 10A fuse [No. 6, located in fuse block (J/B)]
  - Harness for open or short between BCM and fuse.
