Key Fob ID Set Up With CONSULT-II

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: If CONVERTER is not connected with CONSULT-II, vehicle occur the FAIL-SAFE MODE which is LIGHT UP THE HEADLAMP and/or COOLING FAN ROTATING when CONSULT-II is started.
NOTE:
  • If a key fob is lost, the ID code of the lost key fob must be erased to prevent unauthorized use. A specific ID code can be erased with CONSULT-II. However, when the ID code of a lost key fob is not known, all controller ID codes should be erased. After all ID codes are erased, the ID codes of all remaining and/or new key fobs must be re-registered.
  • When registering an additional key fob, the existing ID codes in memory may or may not be erased. If five ID codes are stored in memory, when an additional code is registered, only the oldest code is erased. If less than five ID codes are stored in memory, when an additional ID code is registered, the new ID code is added and no ID codes are erased.
  • Entry of maximum five ID codes is allowed. When more than five ID codes are entered, the oldest ID code will be erased.
  • Even if same ID code that is already in the memory is input, the same ID code can be entered. The code is counted as an additional code.
  1. Turn ignition switch OFF.
  2. Connect CONSULT-II and CONSULT-II CONVERTER to data link connector.

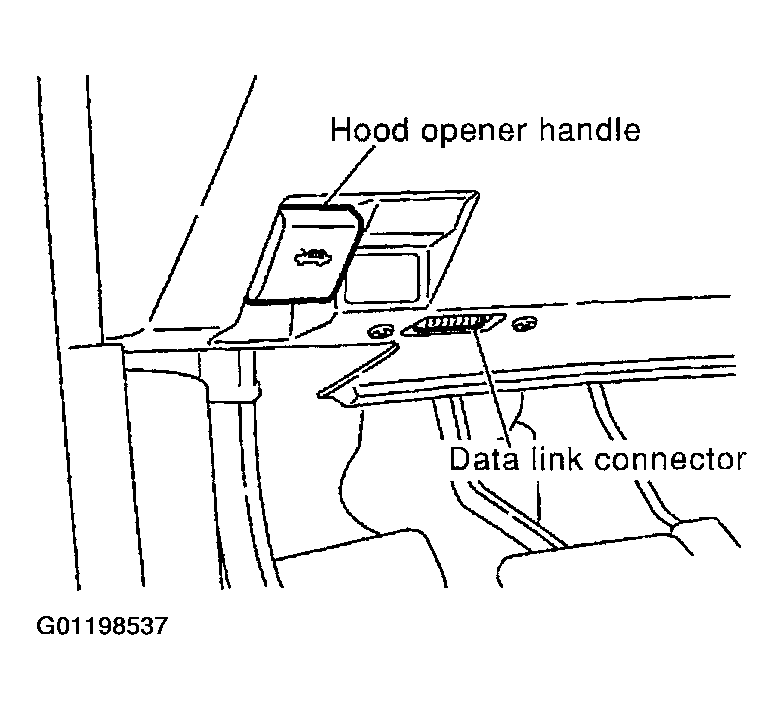

    Fig 1: Identifying Hood Opener Handle And Data Link Connector
    G01198537Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Turn ignition switch ON.
  4. Touch START (NISSAN BASED VHCL).

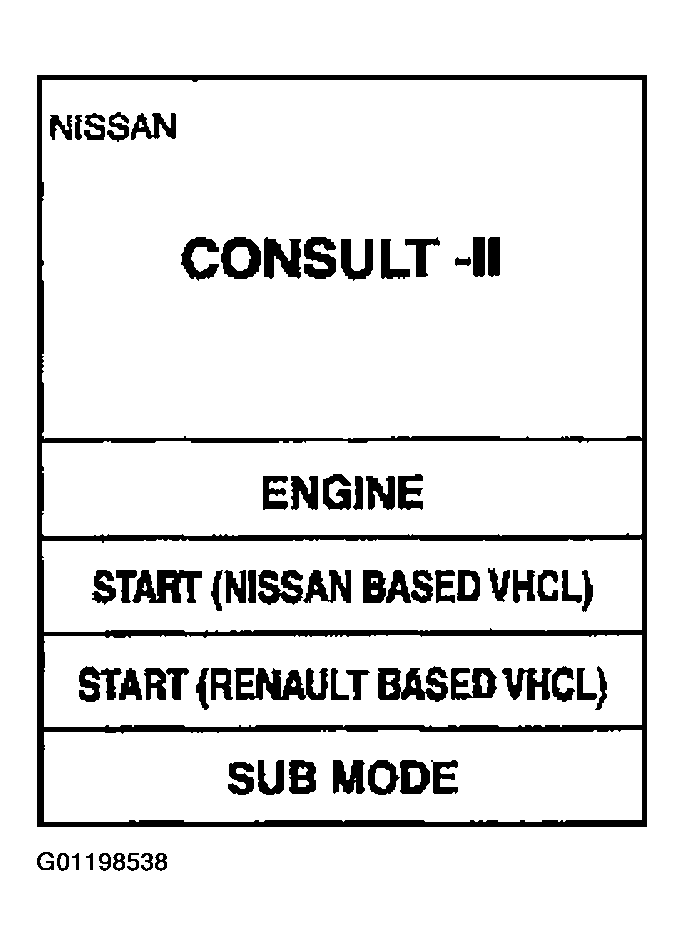

    Fig 2: CONSULT-II DISPLAY Screen
    G01198538Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch BCM.

    If BCM is not indicated, go to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

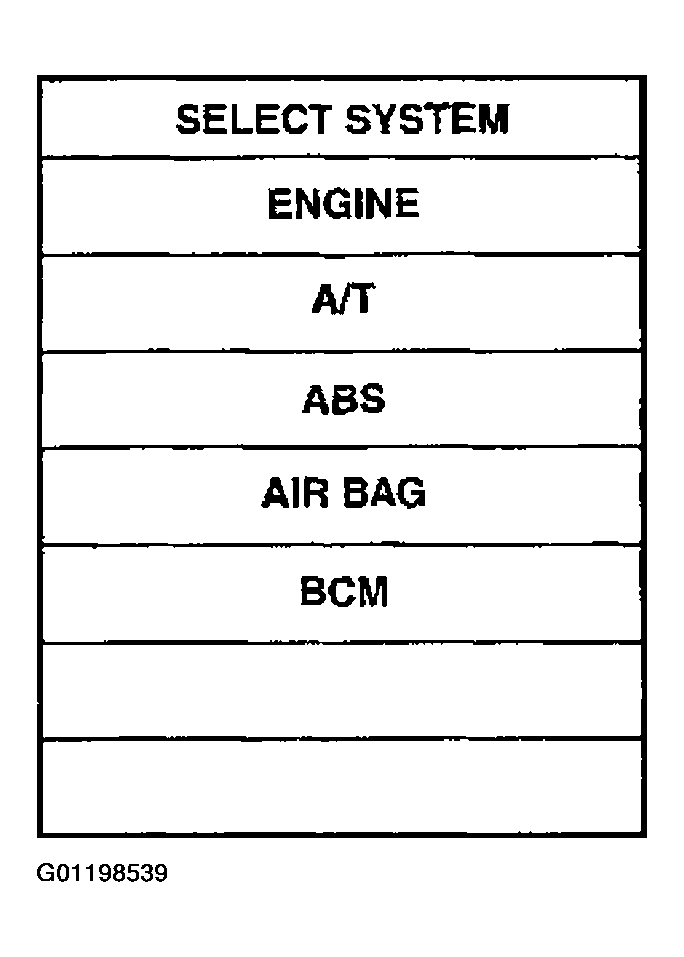

    Fig 3: CONSULT-II SELECT SYSTEM Display Screen
    G01198539Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch MULTI REMOTE ENT.

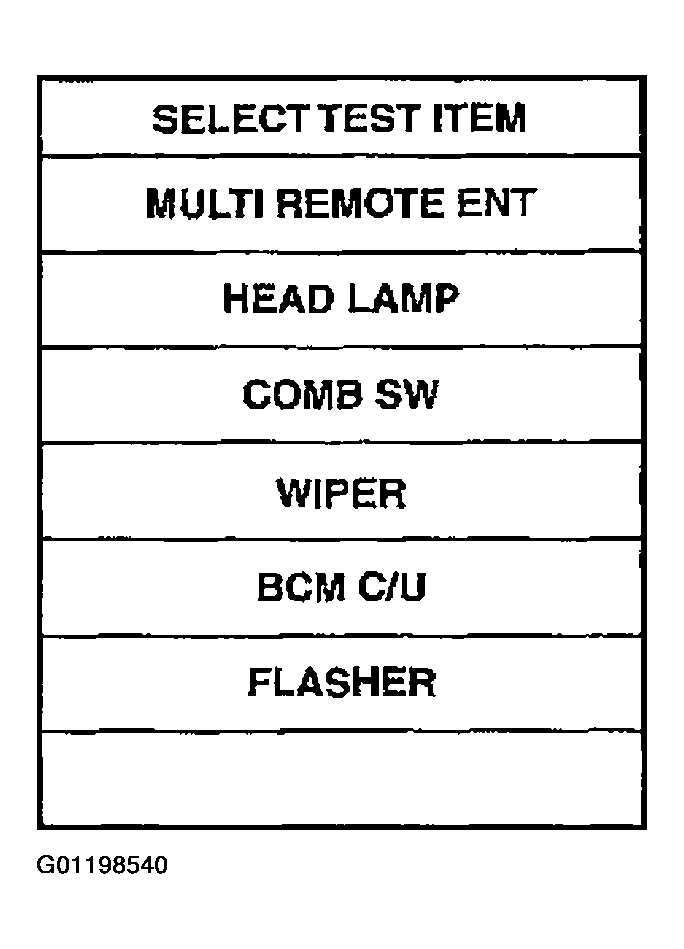

    Fig 4: CONSULT-II SELECT TEST ITEM Display Screen
    G01198540Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Touch WORK SUPPORT.

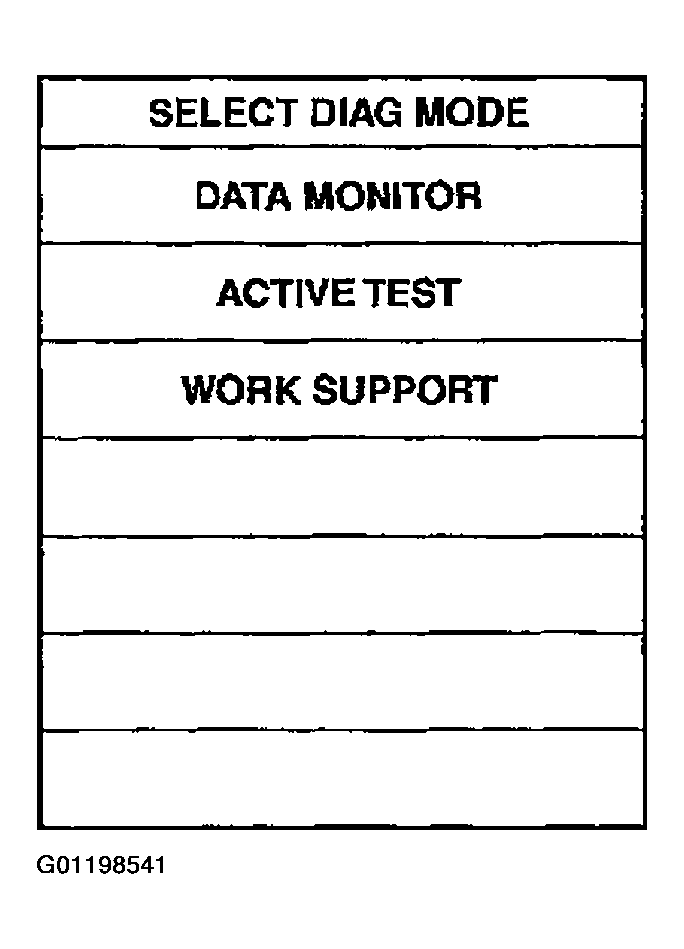

    Fig 5: CONSULT-II SELECT DIAG MODE Display Screen
    G01198541Courtesy of NISSAN MOTOR CO., U.S.A.
  8. The items shown in Fig 6 can be set up.

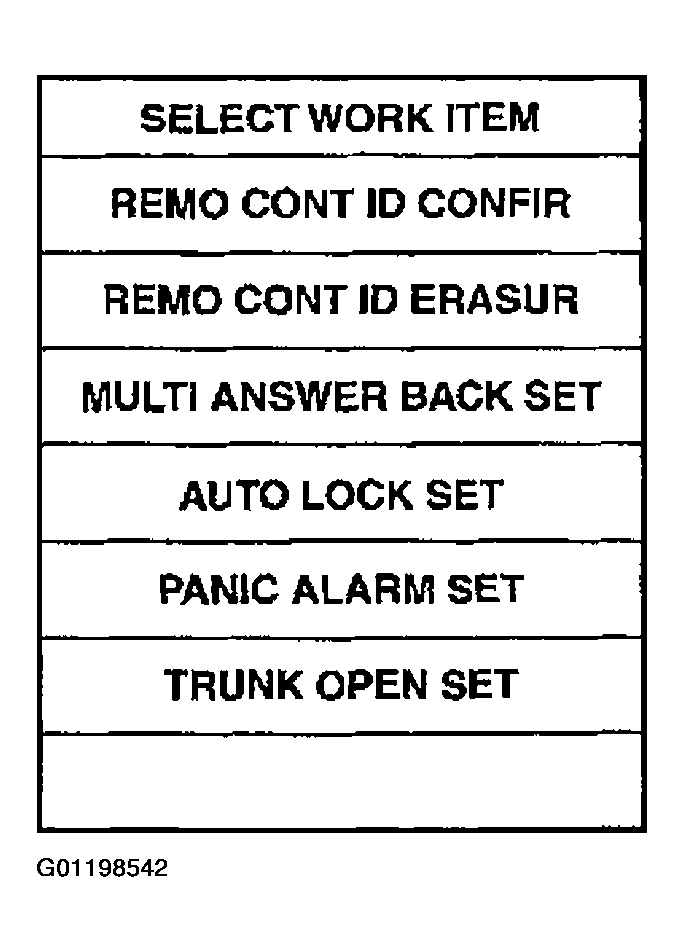

    Fig 6: Select Work Item Display Screen
    G01198542Courtesy of NISSAN MOTOR CO., U.S.A.
    • REMO CONT ID CONFIR

      Use this mode to confirm if a key fob ID code is registered or not.

    • REMO CONT ID REGIST

      Use this mode to register a key fob ID code.

      NOTE: Register the ID code when key fob or BCM is replaced, or when additional key fob is required.
    • REMO CONT ID ERASUR

      Use this mode to erase a key fob ID code.
