Multi Remote Ent

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch OFF.
Connect CONSULT-II and CONSULT-II CONVERTER to data link connector.

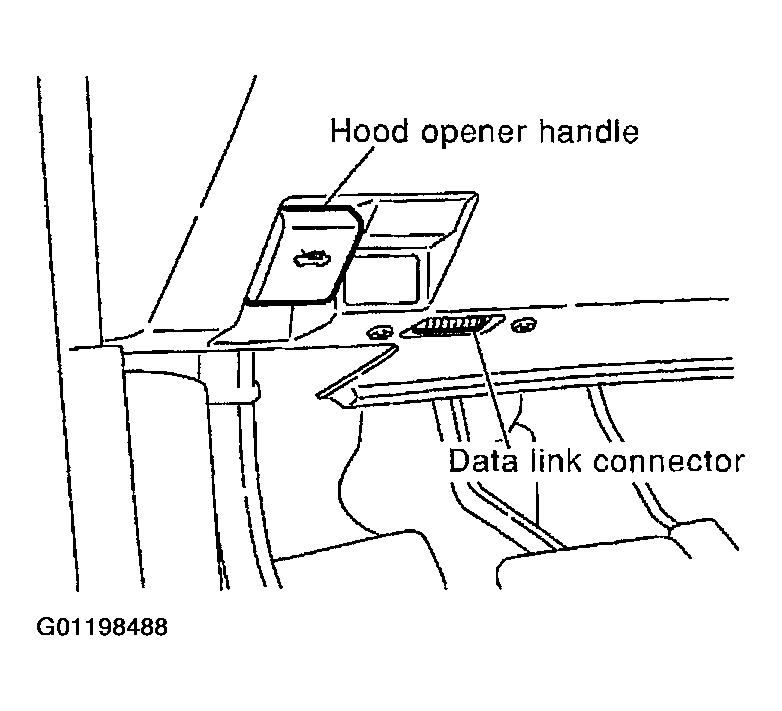

Fig 1: Identifying Hood Opener Handle And Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch ON.
Touch START (NISSAN BASED VHCL).

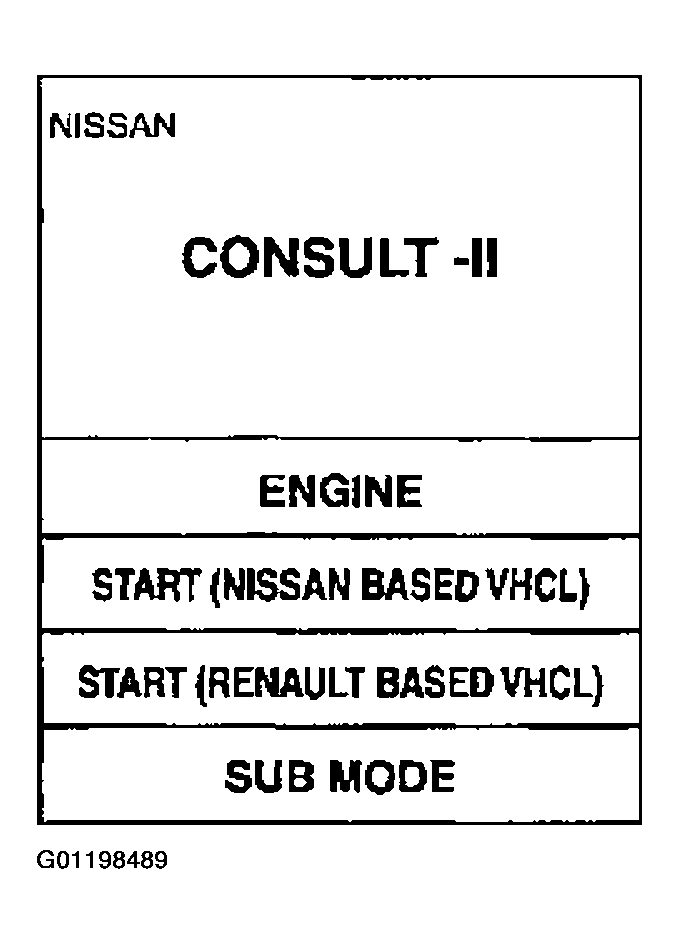

Fig 2: CONSULT-II DISPLAY Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch BCM.

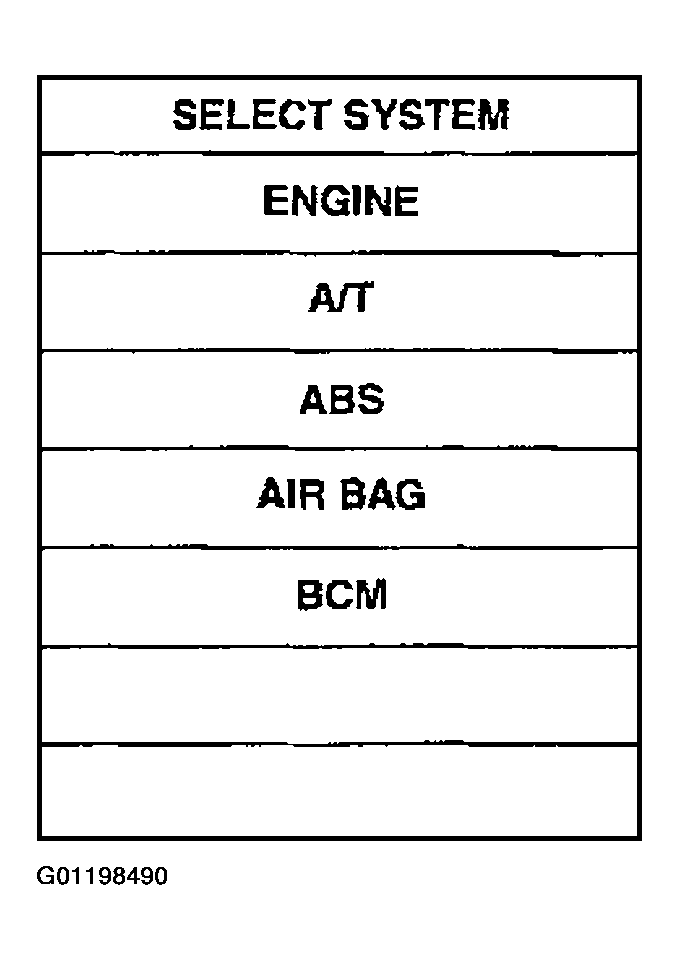

Fig 3: CONSULT-II SELECT SYSTEM Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.

If BCM is not indicated, go to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .
Touch MULTI REMOTE ENT.

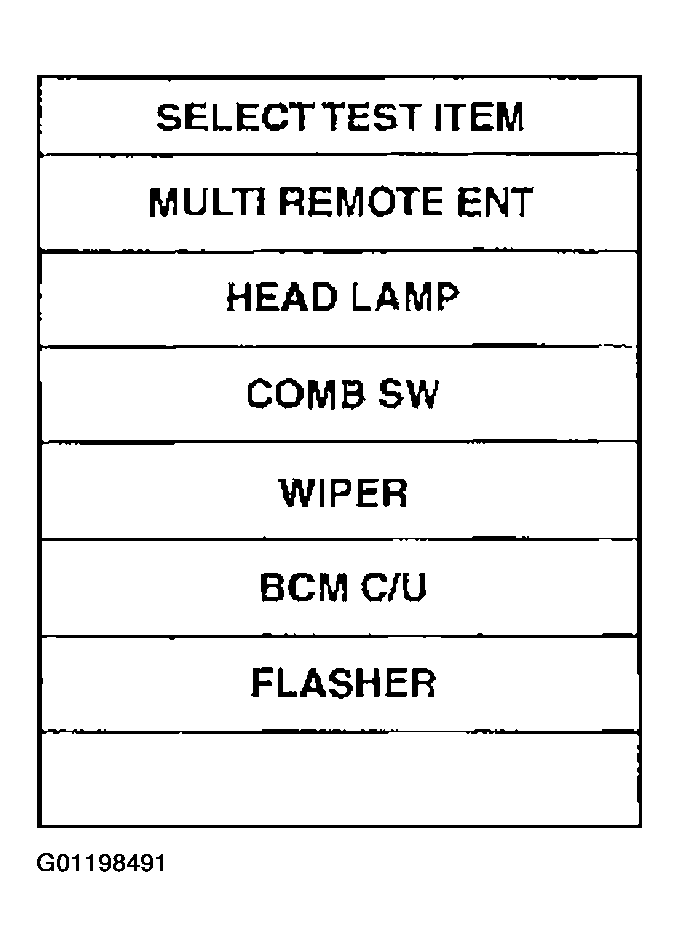

Fig 4: CONSULT-II SELECT TEST ITEM Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Select diagnosis mode.
DATA MONITOR, ACTIVE TEST and WORK SUPPORT are available.

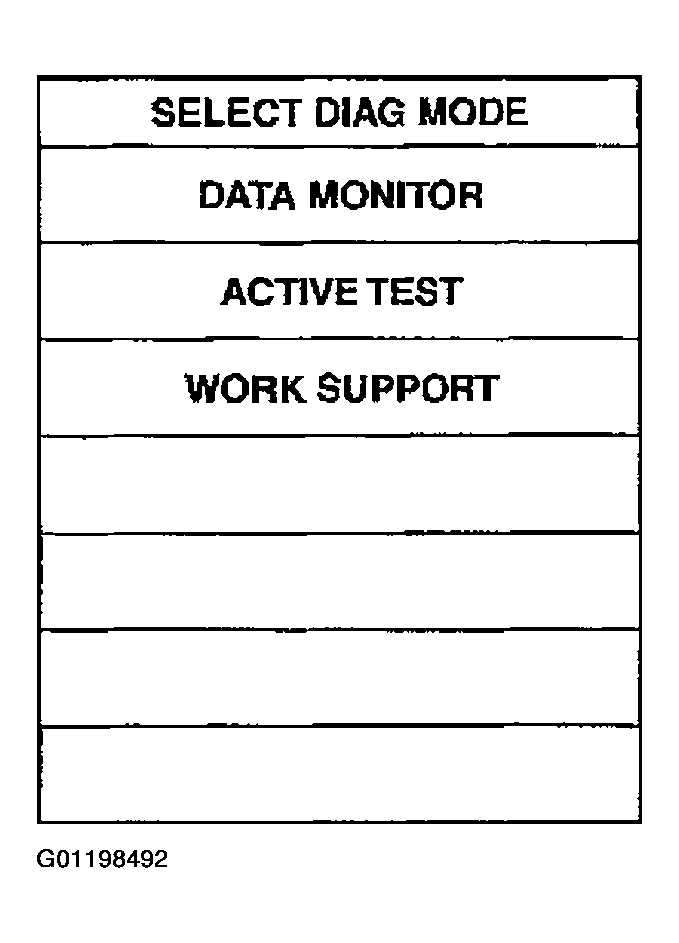

Fig 5: CONSULT-II SELECT DIAG MODE Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
