Front Wheel Turning Angle

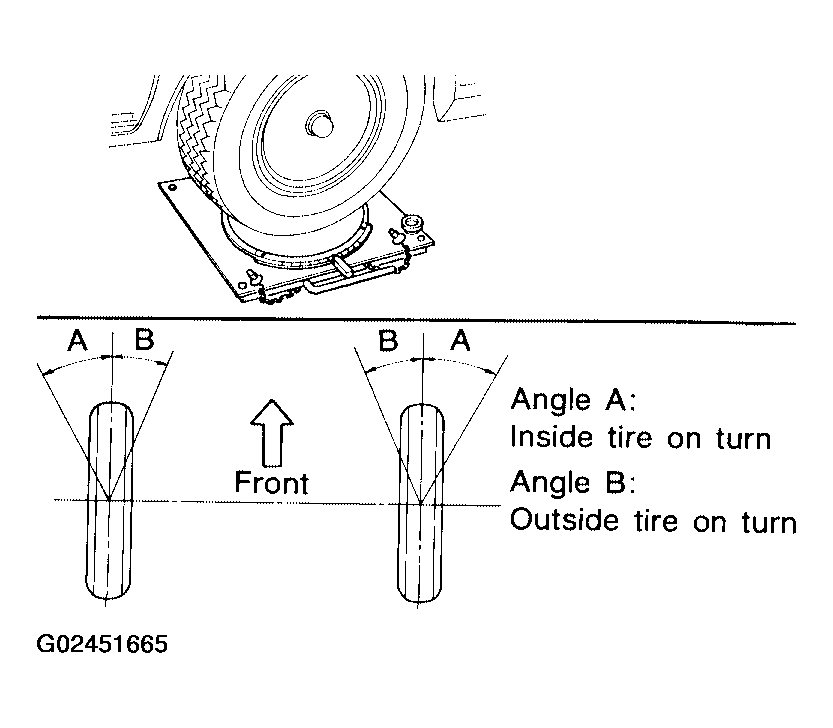

- Set wheels in straight-ahead position. Then move vehicle forward until front wheels rest on turning radius gauge properly.
- Rotate steering wheel all the way right and left; measure turning angle.
Do not hold the steering wheel on full lock for more than 15 seconds.
- Wheel turning angle (Full turn) : Refer to SPECIFICATIONS .
