Key Interlock Cable: Installation

Turn ignition key to lock position.
Set A/T selector lever to P position.
Set key interlock cable to steering lock assembly and install lock plate.
Clamp cable to steering column and attach to control cable with band.

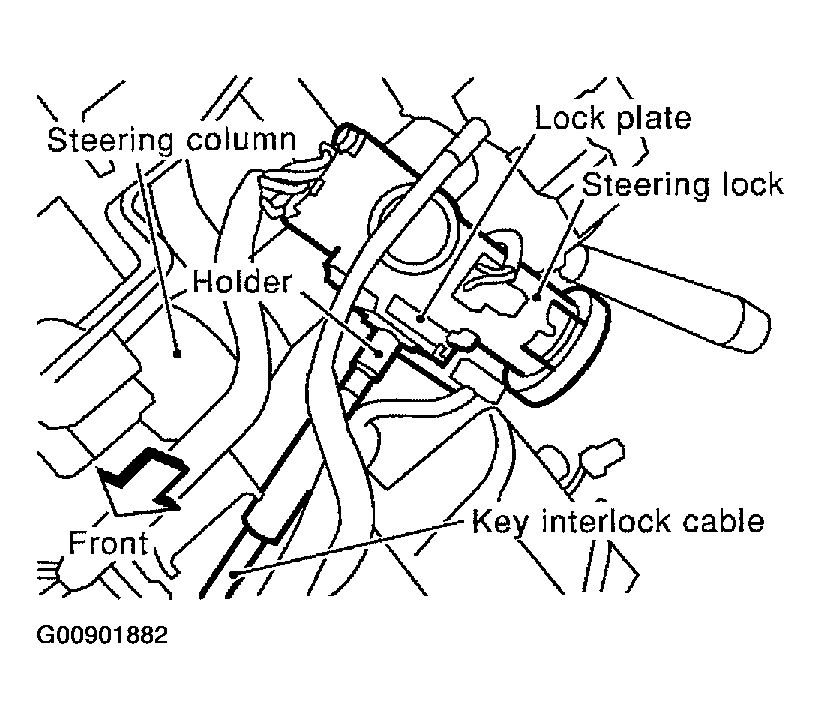

Fig 1: Installing Interlock Cable
Courtesy of NISSAN MOTOR CO., U.S.A.
Insert interlock rod into adjuster holder.

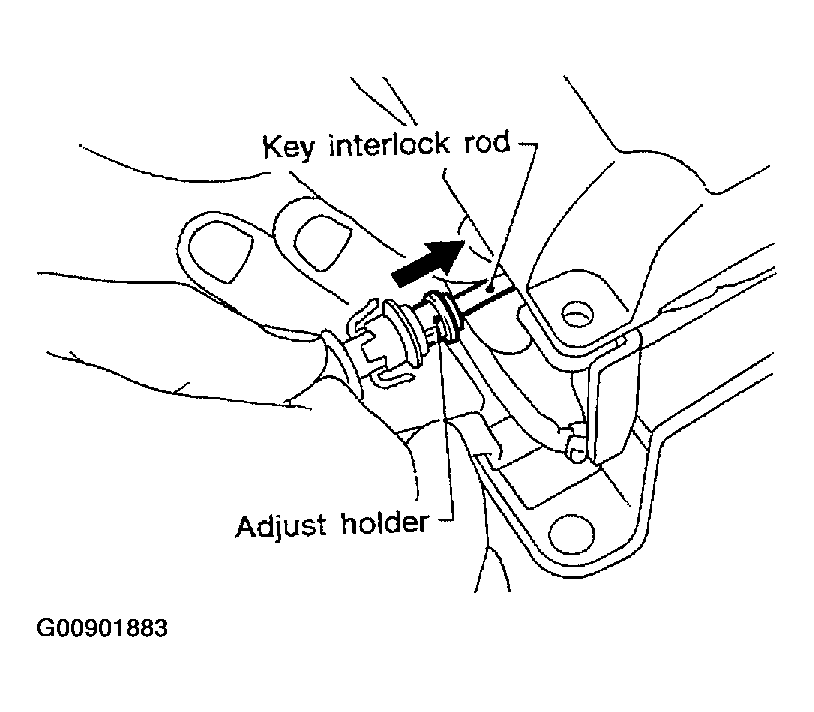

Fig 2: Installing Interlock Rod Into Adjuster Holder
Courtesy of NISSAN MOTOR CO., U.S.A.
Install casing cap to bracket.
Move slider in order to connect adjuster holder to interlock rod.

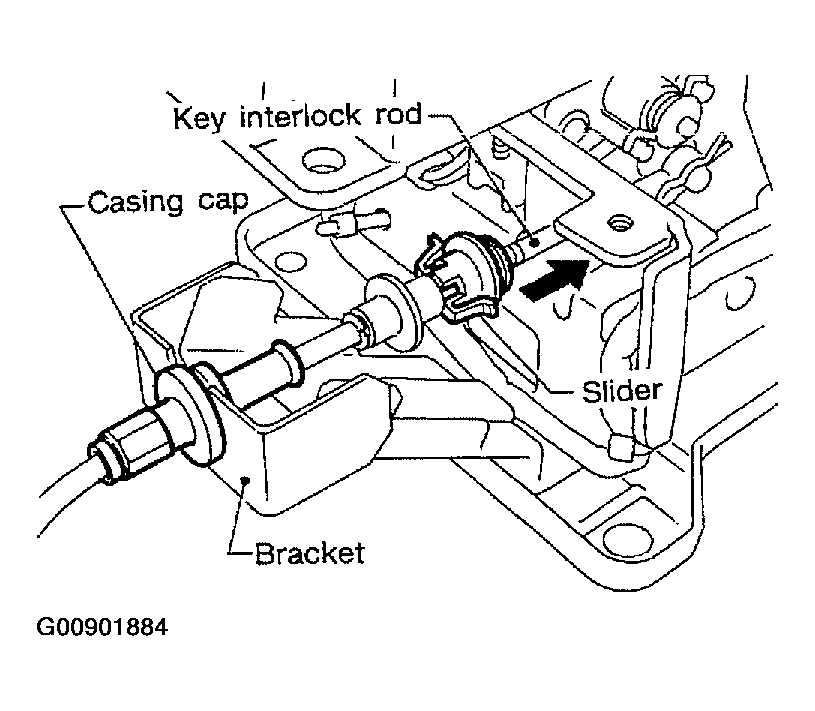

Fig 3: Installing Casing Cap To Bracket
Courtesy of NISSAN MOTOR CO., U.S.A.
