During Shift Change

The line pressure is temporarily reduced corresponding to a change in engine torque when shifting gears (that is, when the shift solenoid valve is switched for clutch operation) to reduce shifting shock.

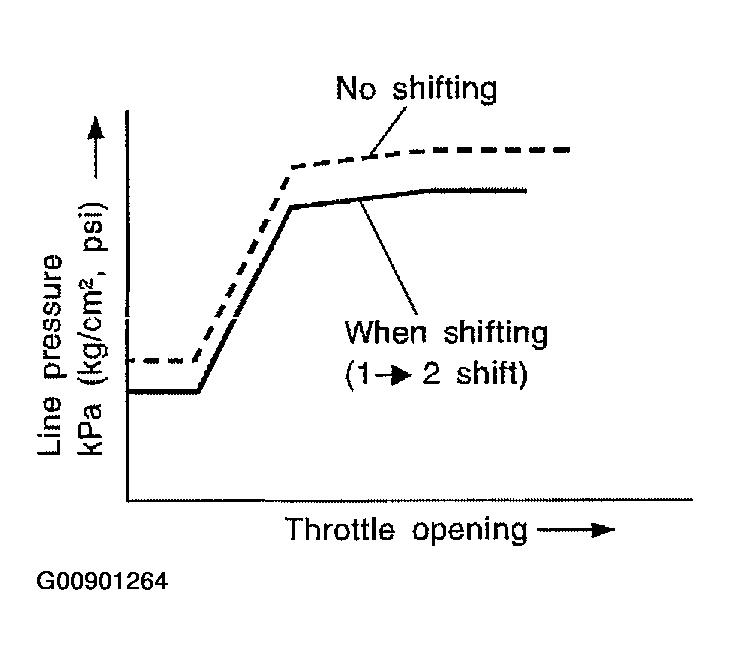

Fig 1: Line Pressure To Throttle Opening Graph

Courtesy of NISSAN MOTOR CO., U.S.A.
