Overrun Clutch Operating Conditions

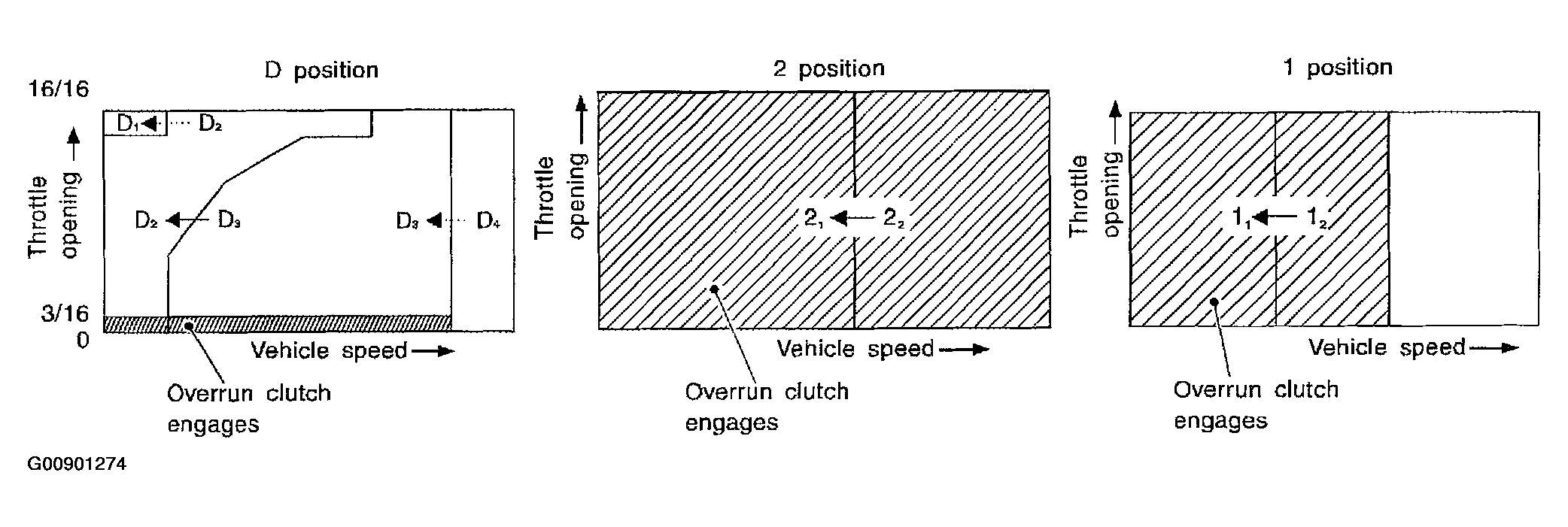

Fig 1: Identifying Overrun Clutch Operating Conditions
G00901274Courtesy of NISSAN MOTOR CO., U.S.A.

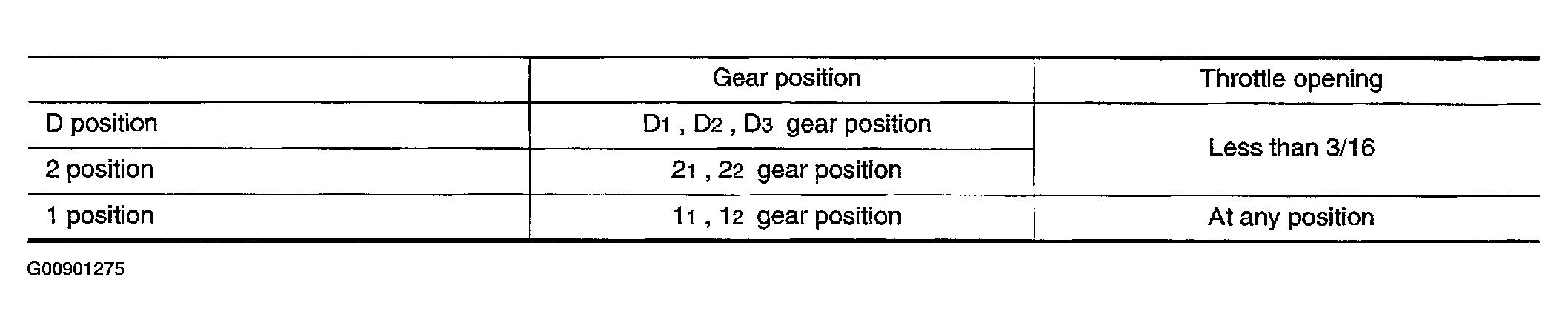

Fig 2: Overrun Clutch Operating Conditions Chart
G00901275Courtesy of NISSAN MOTOR CO., U.S.A.
