Cross-sectional View

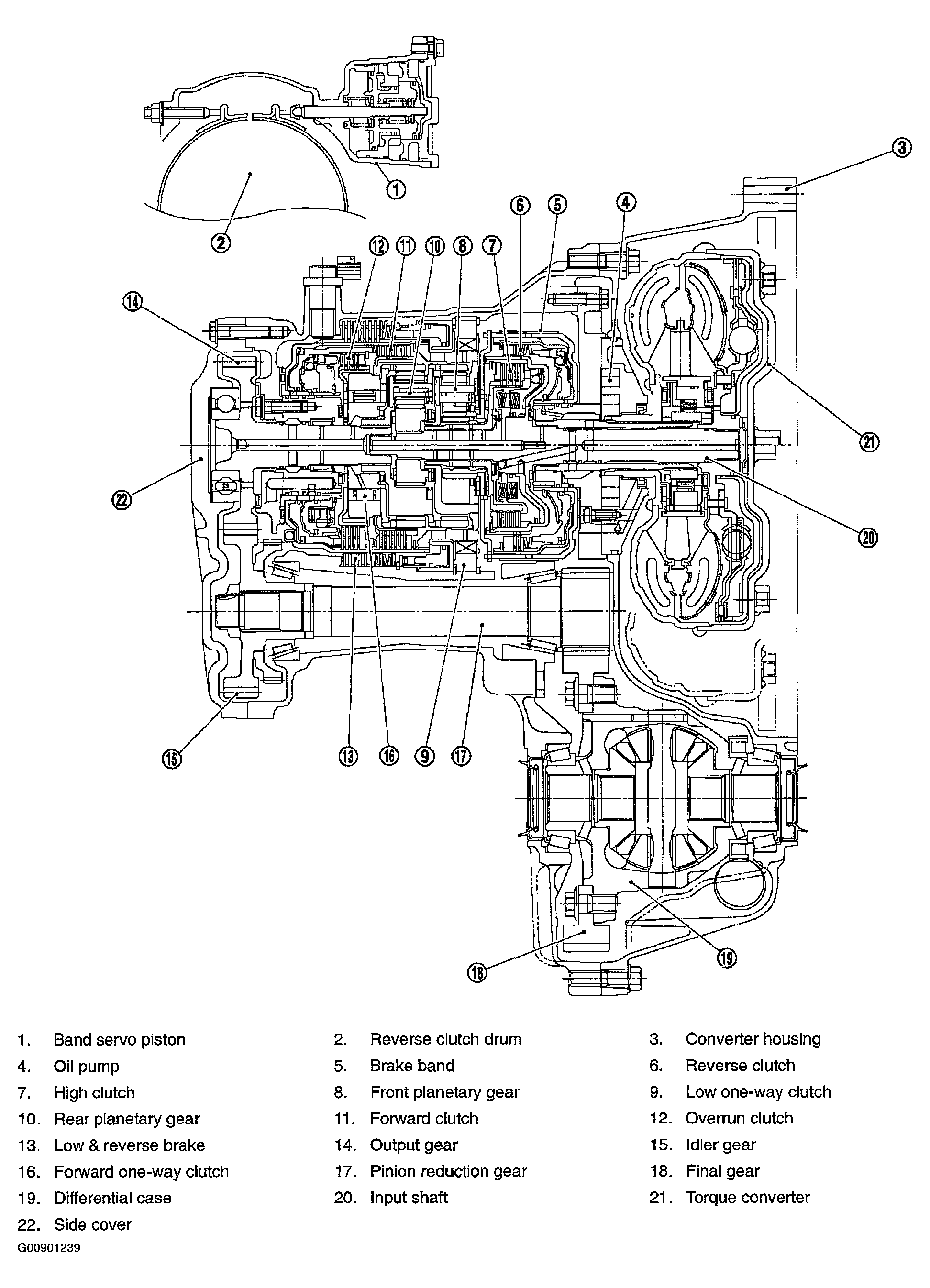

Fig 1: Cross-Sectional View Of A/T
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
