Control Valve Assembly: Assembly

Install upper, inter and lower body.

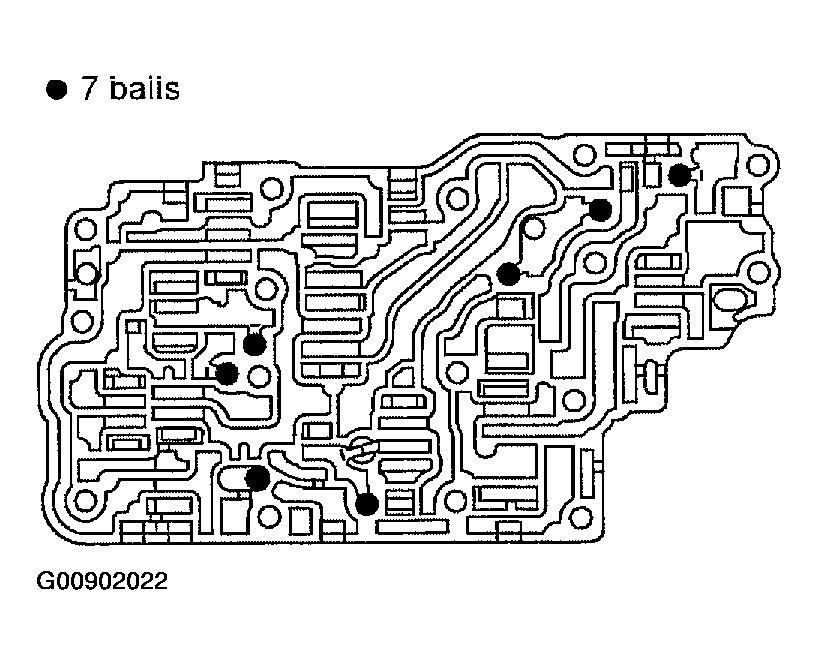

1. Place oil circuit of upper body face up. Install steel balls in their proper positions.

  Fig 1: Installing Upper, Inter And Lower Body Balls
  Courtesy of NISSAN MOTOR CO., U.S.A.
2. Install upper separating gasket, upper inter separating gasket and upper separating plate in order shown in illustration.

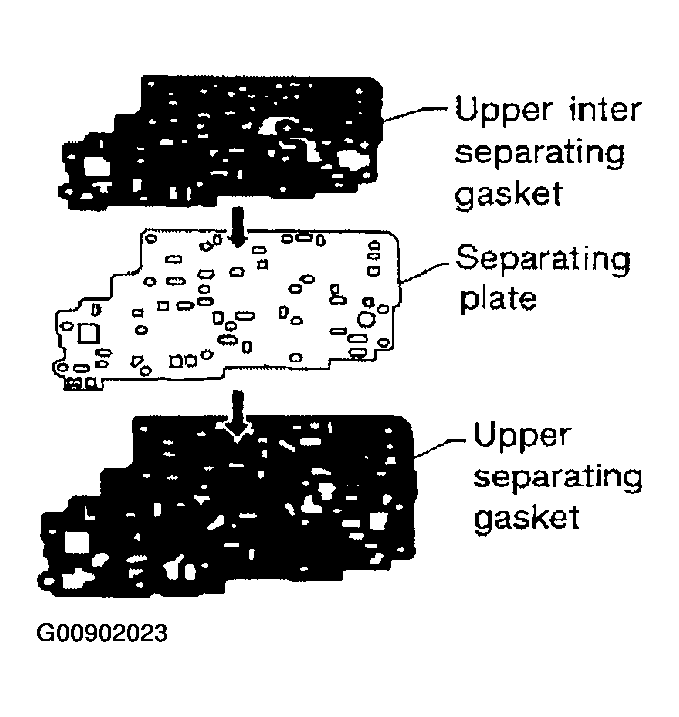

  Fig 2: Installing Upper Separating Gasket, Upper Inter Separating Gasket And Upper Separating Plate
  Courtesy of NISSAN MOTOR CO., U.S.A.
3. Install reamer bolts f from bottom of upper body. Using reamer bolts as guides, install separating plate and gaskets as a set.

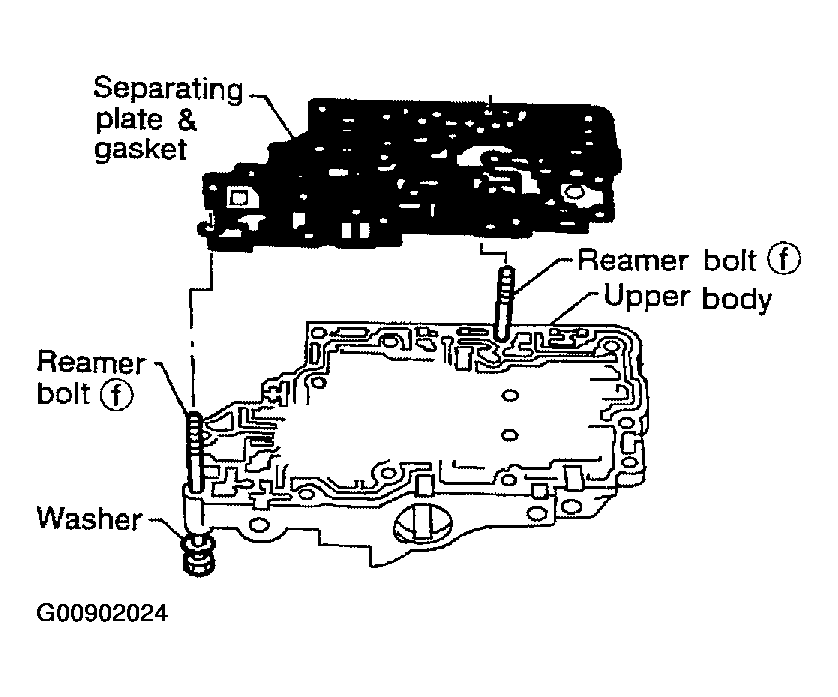

  Fig 3: Installing Separating Plate And Gaskets On Upper Control Valve Body
  Courtesy of NISSAN MOTOR CO., U.S.A.
4. Install pilot filter.

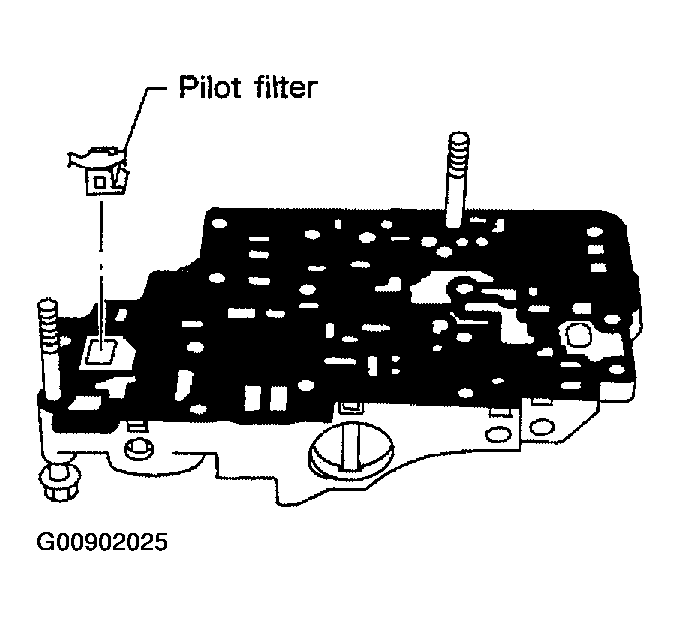

  Fig 4: Installing Pilot Filter
  Courtesy of NISSAN MOTOR CO., U.S.A.

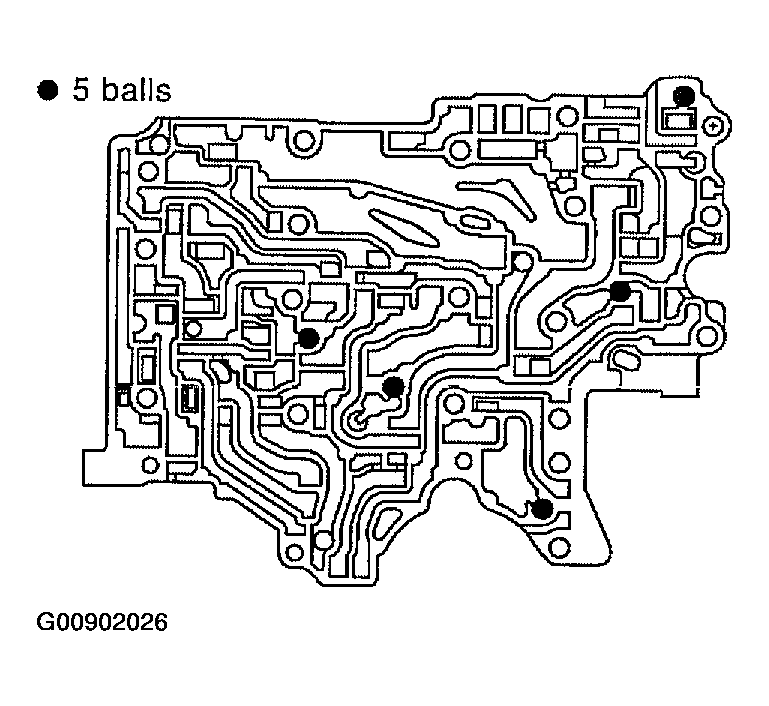

5. Place lower body as shown in illustration (side of inter body face up). Install steel balls in their proper positions.

  Fig 5: Installing Steel Balls On Inter Body
  Courtesy of NISSAN MOTOR CO., U.S.A.

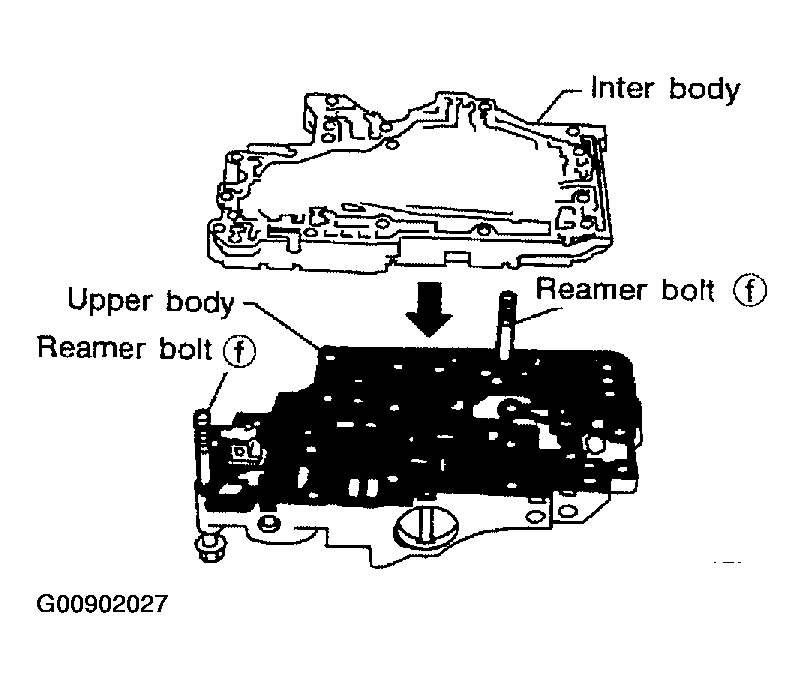

6. Install inter body on upper body using reamer bolts f as guides.
  - Be careful not to dislocate or drop steel balls.

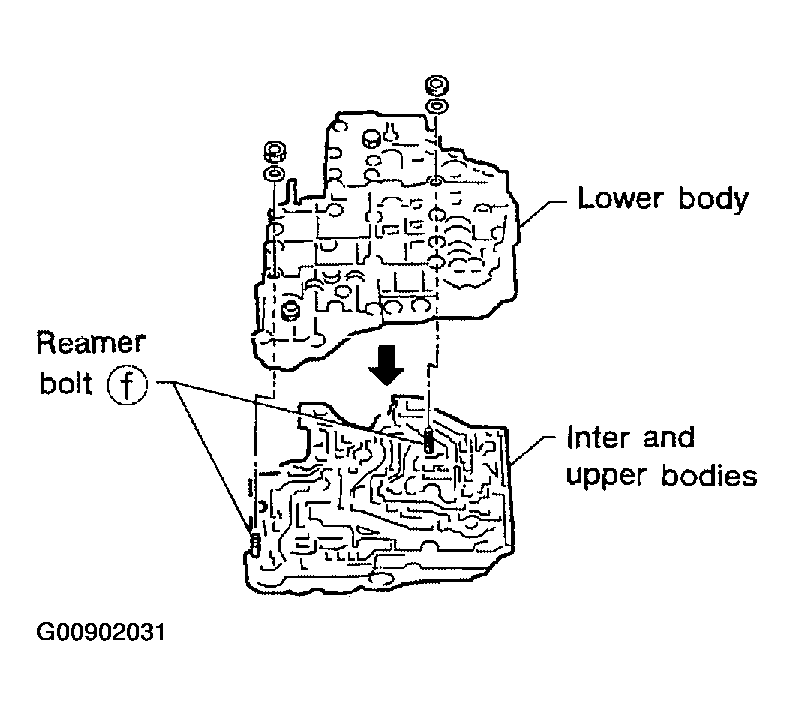

  Fig 6: Installing Inter Body On Upper Body
  Courtesy of NISSAN MOTOR CO., U.S.A.

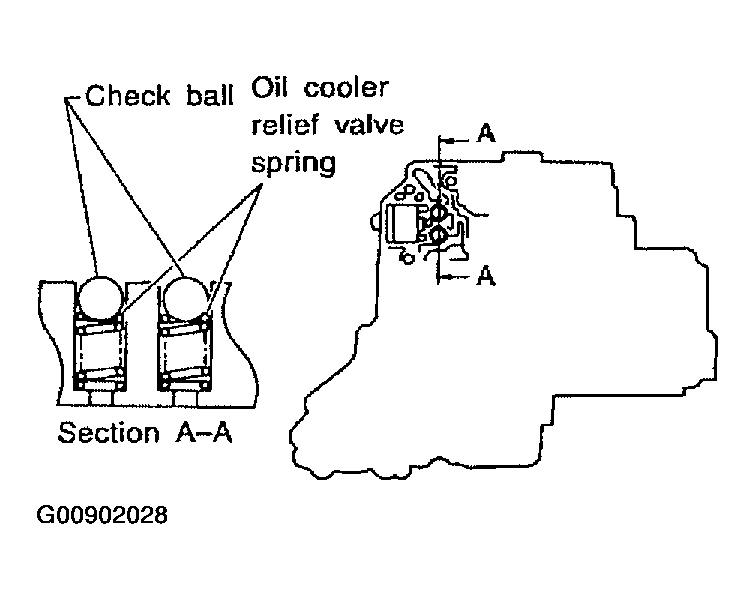

7. Install check balls and oil cooler relief valve springs in their proper positions in lower body.

  Fig 7: Installing Check Balls And Oil Cooler Relief Valve Springs
  Courtesy of NISSAN MOTOR CO., U.S.A.

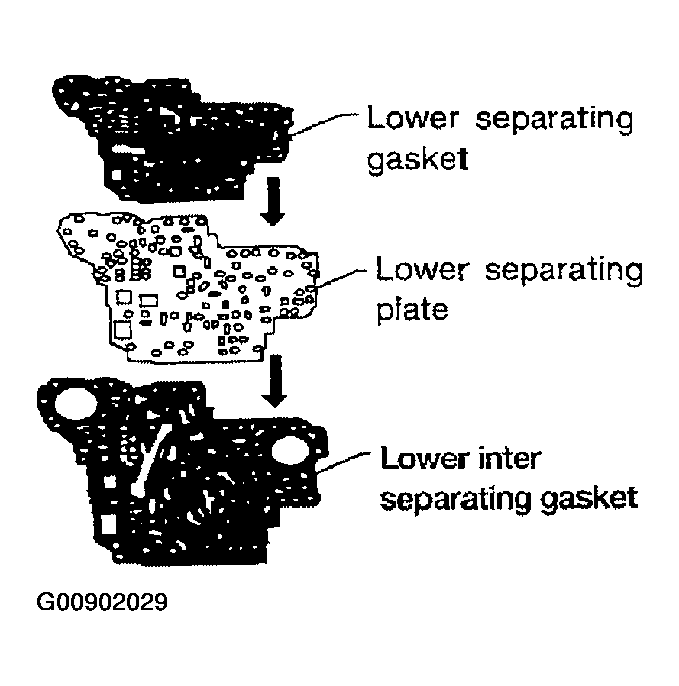

8. Install lower separating gasket, lower inter separating gasket and lower separating plate in order shown in illustration.

  Fig 8: Installing Lower Separating Gasket, Inter Separating Gasket And Lower Separating Plate
  Courtesy of NISSAN MOTOR CO., U.S.A.

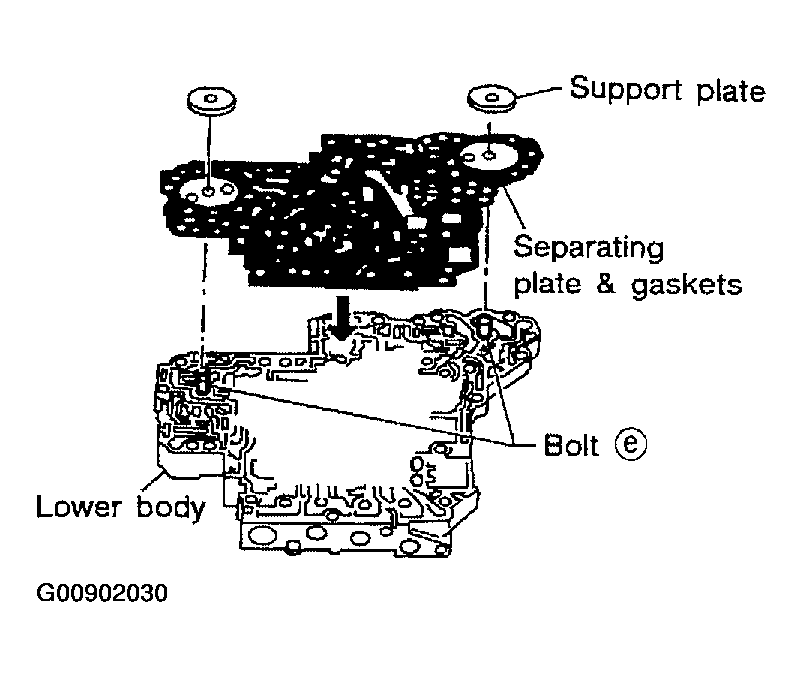

9. Install bolts e from bottom of lower body. Using bolts e as guides, install separating plate and gaskets as a set.

  Fig 9: Installing Separating Plate And Gaskets On Lower Body
  Courtesy of NISSAN MOTOR CO., U.S.A.
10. Temporarily install support plates on lower body.
11. Install lower body on inter body using reamer bolts f as guides and tighten reamer bolts f slightly.
Fig 10: Installing Lower Body On Inter Body
Courtesy of NISSAN MOTOR CO., U.S.A.

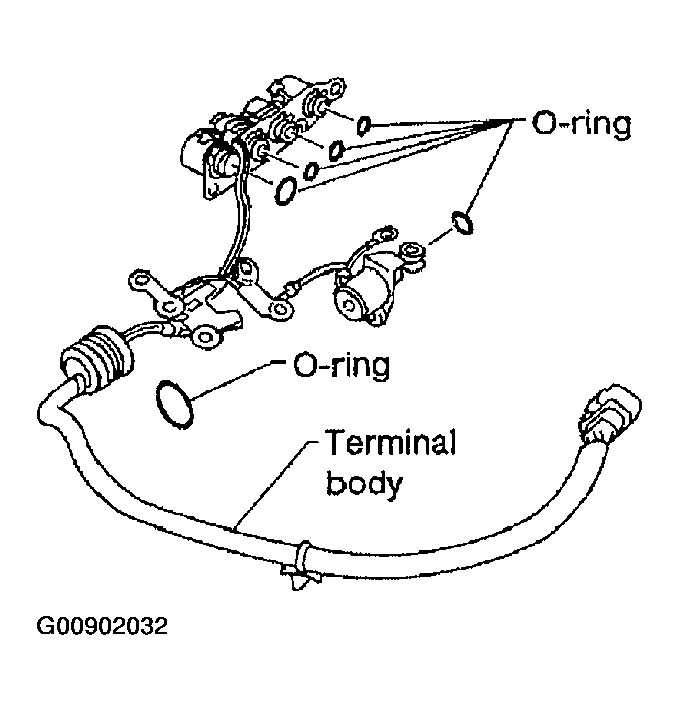

Install O-rings to solenoid valves and terminal body.
- Apply ATF to O-rings.
Fig 11: Installing O-Rings To Solenoid Valves And Terminal Body
Courtesy of NISSAN MOTOR CO., U.S.A.
Install and tighten bolts.

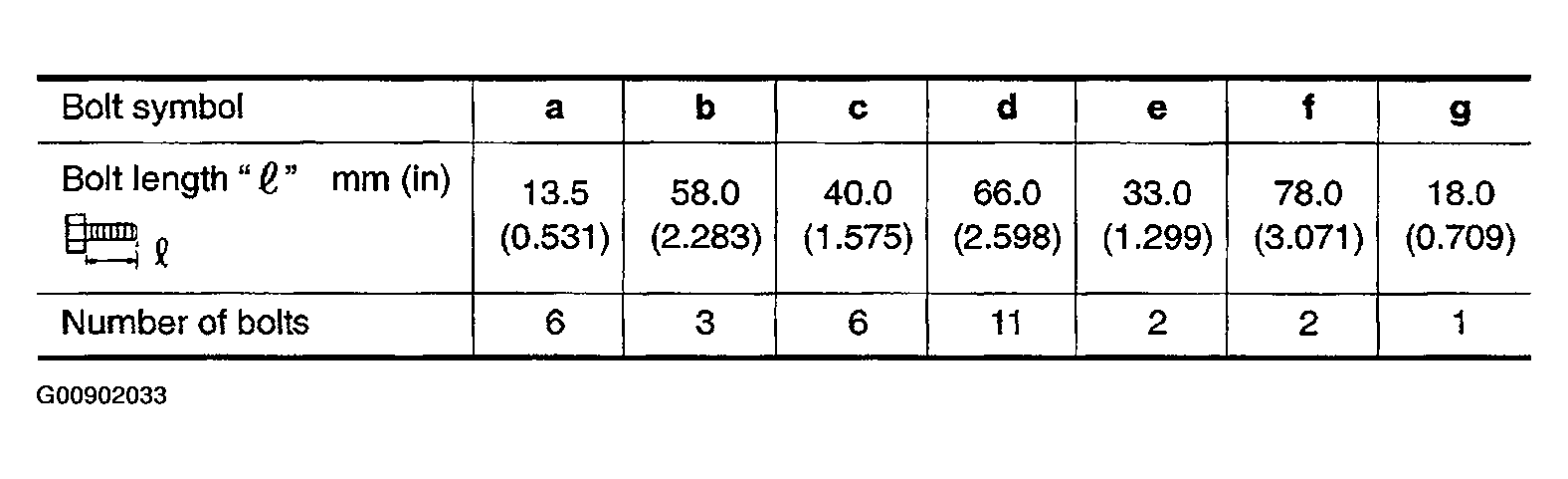

Bolt length, number and location:

Fig 12: Bolt Length, Number And Location Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

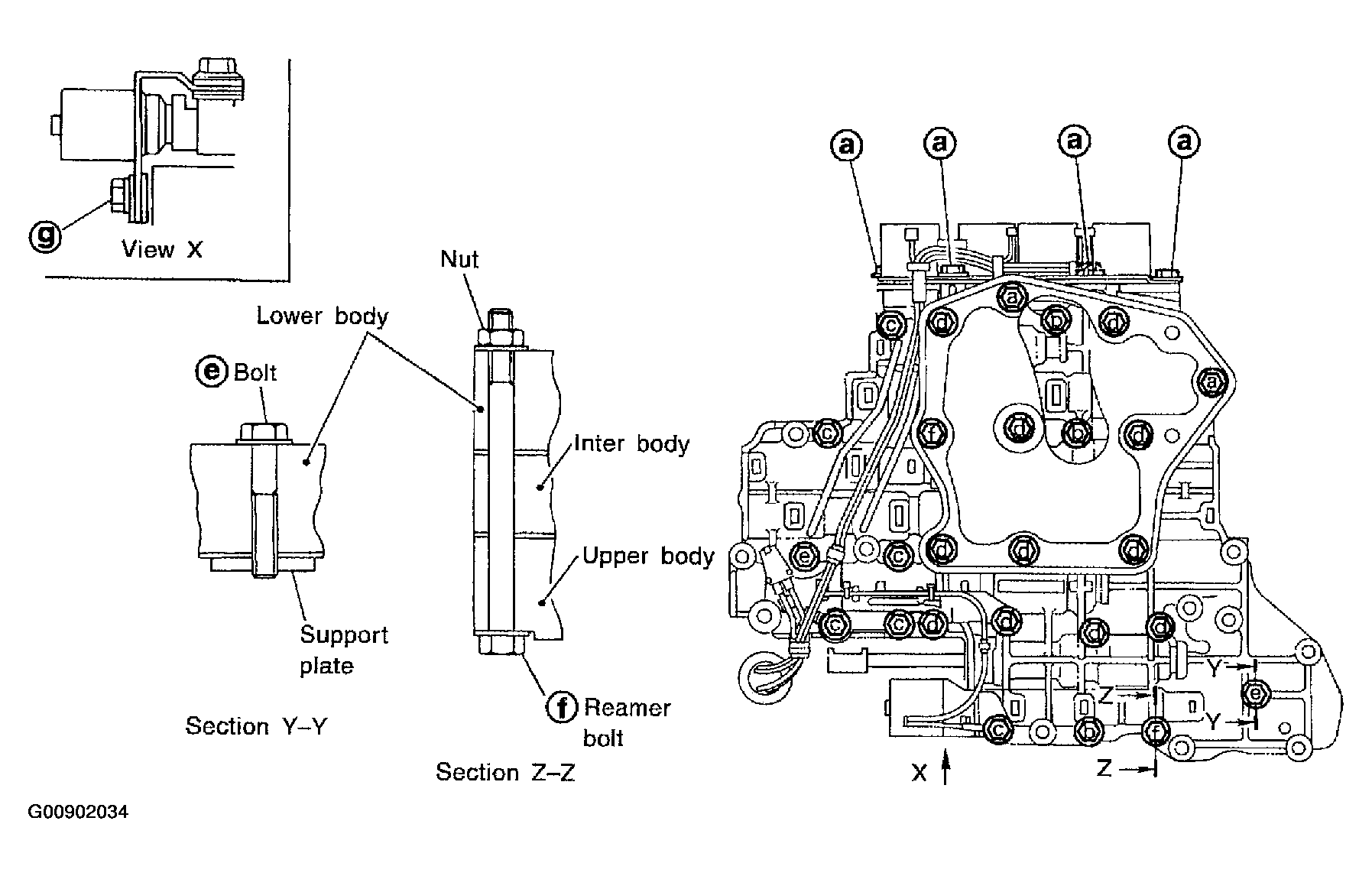

Fig 13: Identifying Location Of Control Valve Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.

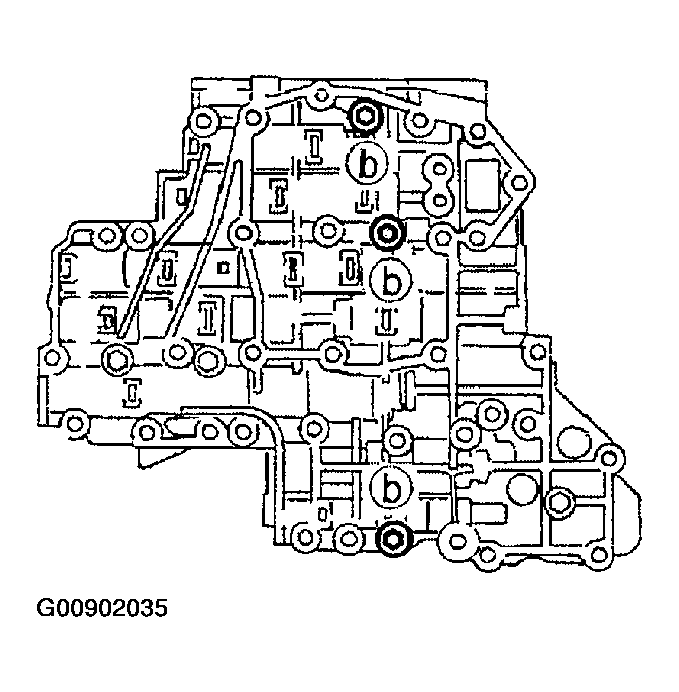

Install and tighten bolts b to specified torque.
1. 7 - 9 N.m (0.7 - 0.9 kg-m, 61 - 78 in-lb)
Fig 14: Tightening Control Valve Body Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
Install solenoid valve assembly and line pressure solenoid valve to lower body.

Fig 15: Installing Solenoid Valve Assembly And Line Pressure Solenoid Valve To Lower Body
Courtesy of NISSAN MOTOR CO., U.S.A.
Set oil strainer, then tighten bolts a, c, d and nuts f to specified torque.
1. 7 - 9 N.m (0.7 - 0.9 kg-m, 61 - 78 in-lb)

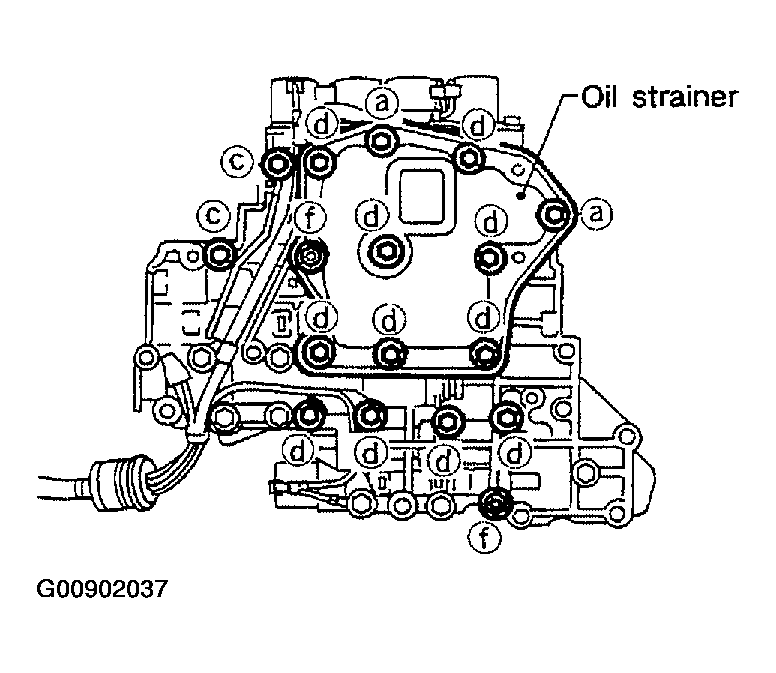

Fig 16: Setting Oil Strainer
Courtesy of NISSAN MOTOR CO., U.S.A.

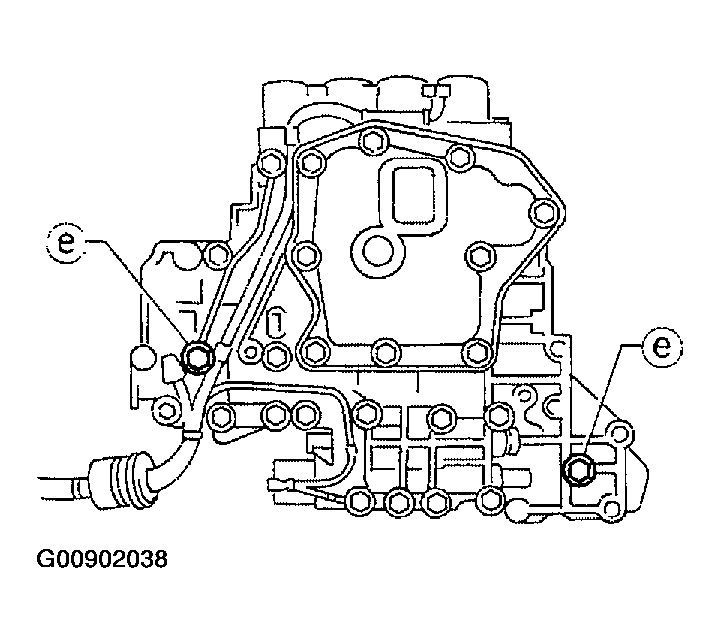

Tighten bolts e to specified torque.
1. 3.4 - 4.4 N.m (0.35 - 0.45 kg-m, 30.4 - 39.1 in-lb)
Fig 17: Tightening Control Valve Assembly Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
