Control Valve Assembly: Components

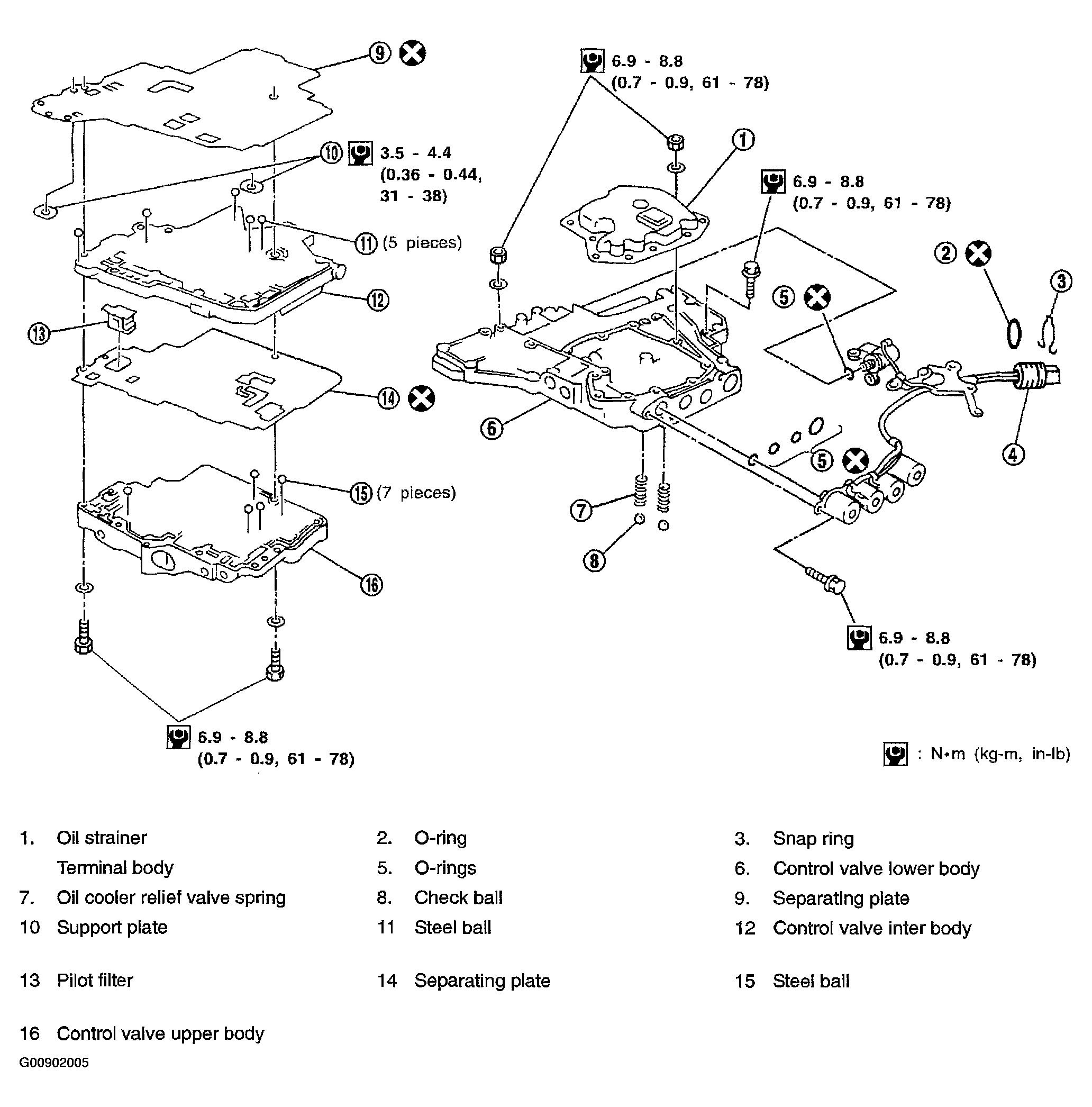

Fig 1: Identifying Control Valve Assembly Components And Tightening Torques
G00902005Courtesy of NISSAN MOTOR CO., U.S.A.
