Control Valve Assembly: Inspection: Notes

Lower and Upper Bodies

• Check to see that retainer plates are properly positioned in lower body.

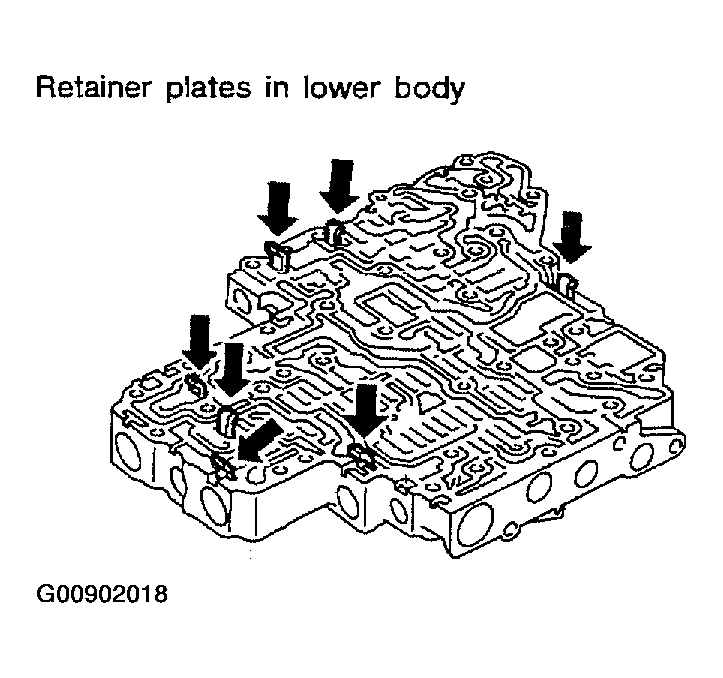

  Fig 1: Checking Positioning Of Retainer Plates In Lower Body

  Courtesy of NISSAN MOTOR CO., U.S.A.
• Check to see that retainer plates are properly positioned in upper body.
• Be careful not to lose these parts.

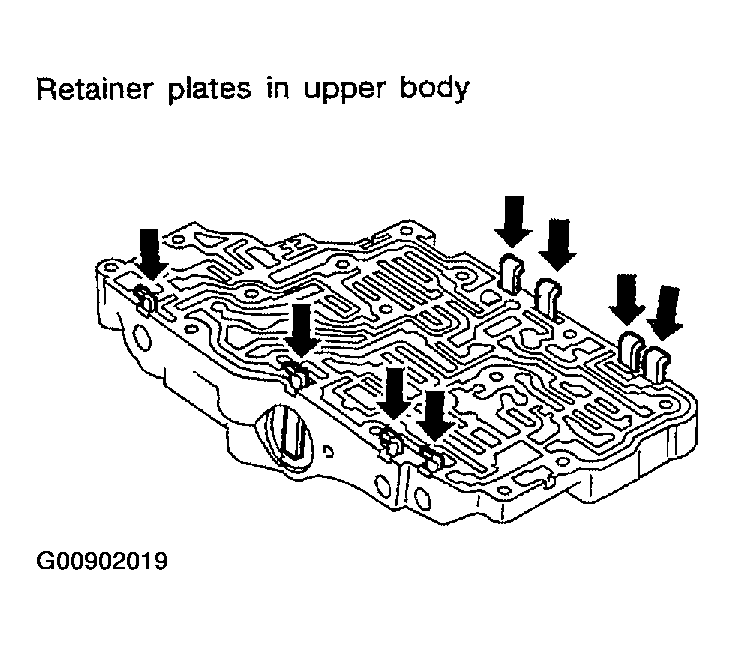

  Fig 2: Checking Positioning Of Retainer Plates In Upper Body

  Courtesy of NISSAN MOTOR CO., U.S.A.
