Control Valve Lower Body: Assembly: Notes

Install control valves.
For installation procedures, refer to "ASSEMBLY ".

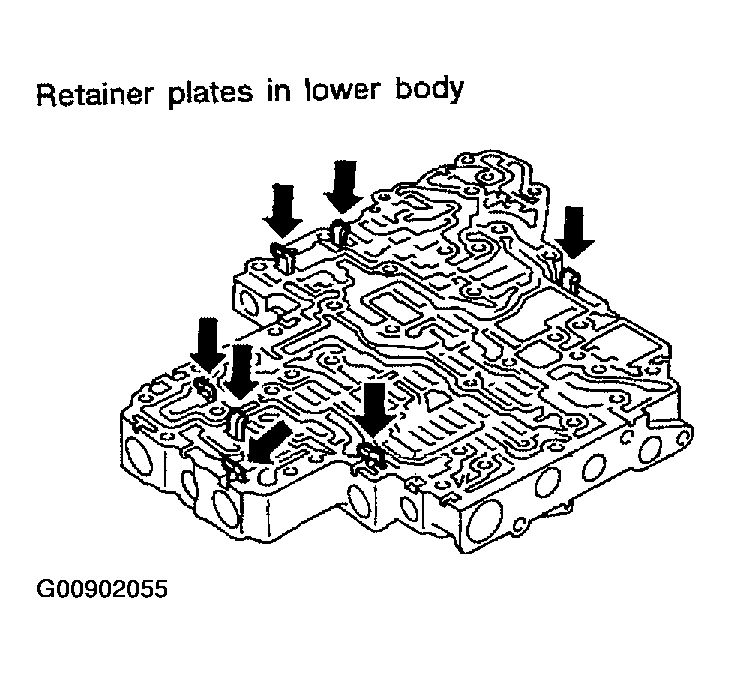

Fig 1: Installing Control Valves
Courtesy of NISSAN MOTOR CO., U.S.A.
