Retainer Plate (Lower Body)

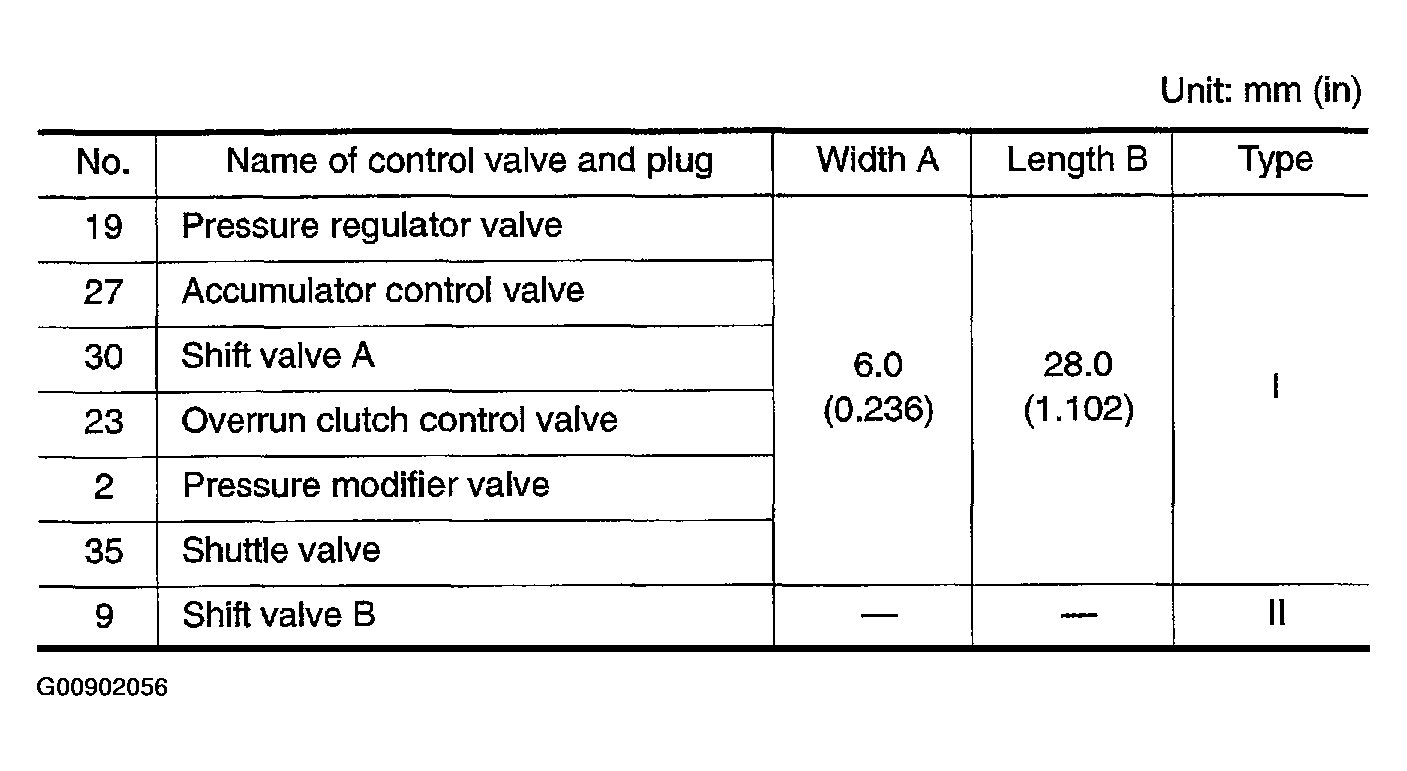

Fig 1: Retainer Plate Dimensions (For Control Valve Lower Body)
G00902056Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Identifying Retainer Plate Dimensions (For Control Valve Lower Body)
G00902057Courtesy of NISSAN MOTOR CO., U.S.A.
