Line Pressure Test Procedure

Check A/T fluid and engine oil levels. If necessary, add fluid and oil.
Drive vehicle for approx. 10 minutes or until fluid and oil reach operating temperature.
1. ATF operating temperature: 50 - 80°C (122 - 176°F)
Install pressure gauge to corresponding line pressure port.

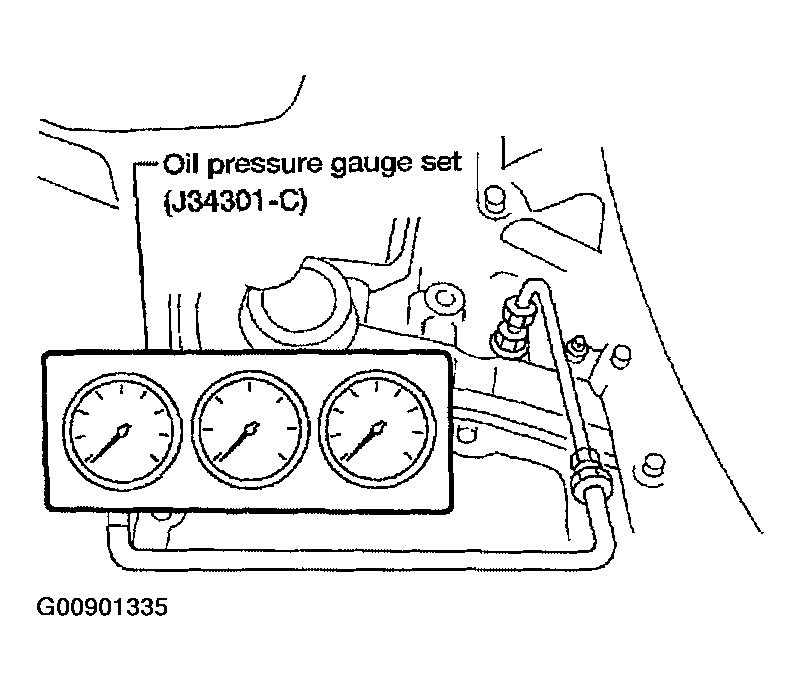

Fig 1: Installing Pressure Gauge To Corresponding Line Pressure Port
Courtesy of NISSAN MOTOR CO., U.S.A.
Set parking brake and block wheels.
- Continue to depress brake pedal fully while line pressure test is being performed at stall speed.

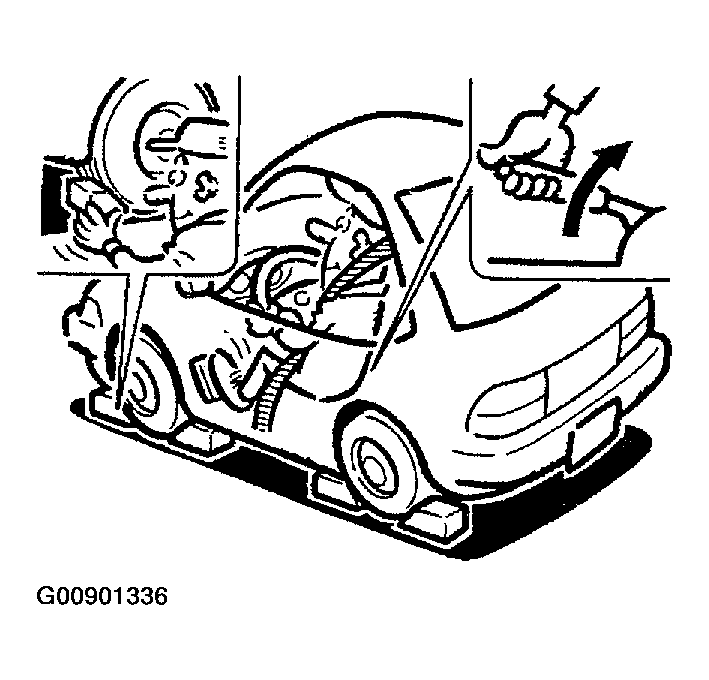

Fig 2: Setting Parking Brake
Courtesy of NISSAN MOTOR CO., U.S.A.
Start engine and measure line pressure at idle and stall speed.
- When measuring line pressure at stall speed, follow the stall test procedure.
  1. LINE PRESSURE TEST : Refer to SDS, LINE PRESSURE .

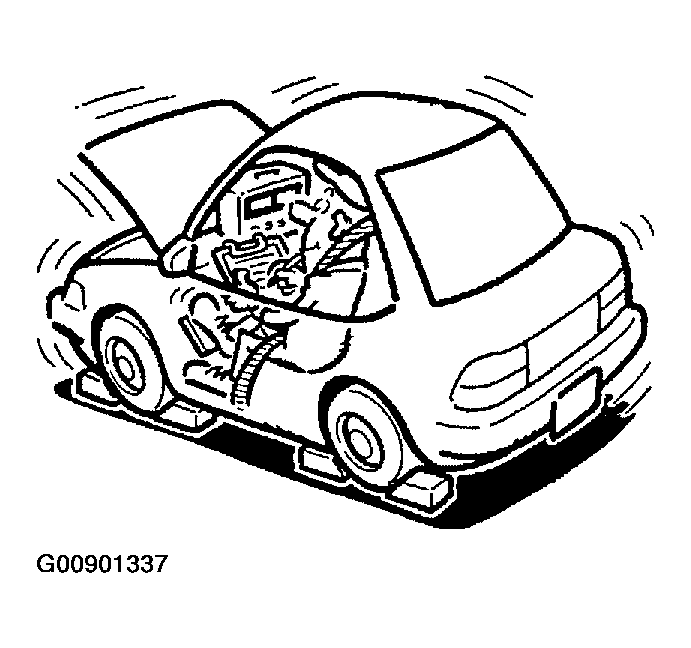

Fig 3: Measuring Line Pressure At Idle And Stall Speed

Courtesy of NISSAN MOTOR CO., U.S.A.
