Malfunction Code Chart (Without CONSULT-II)

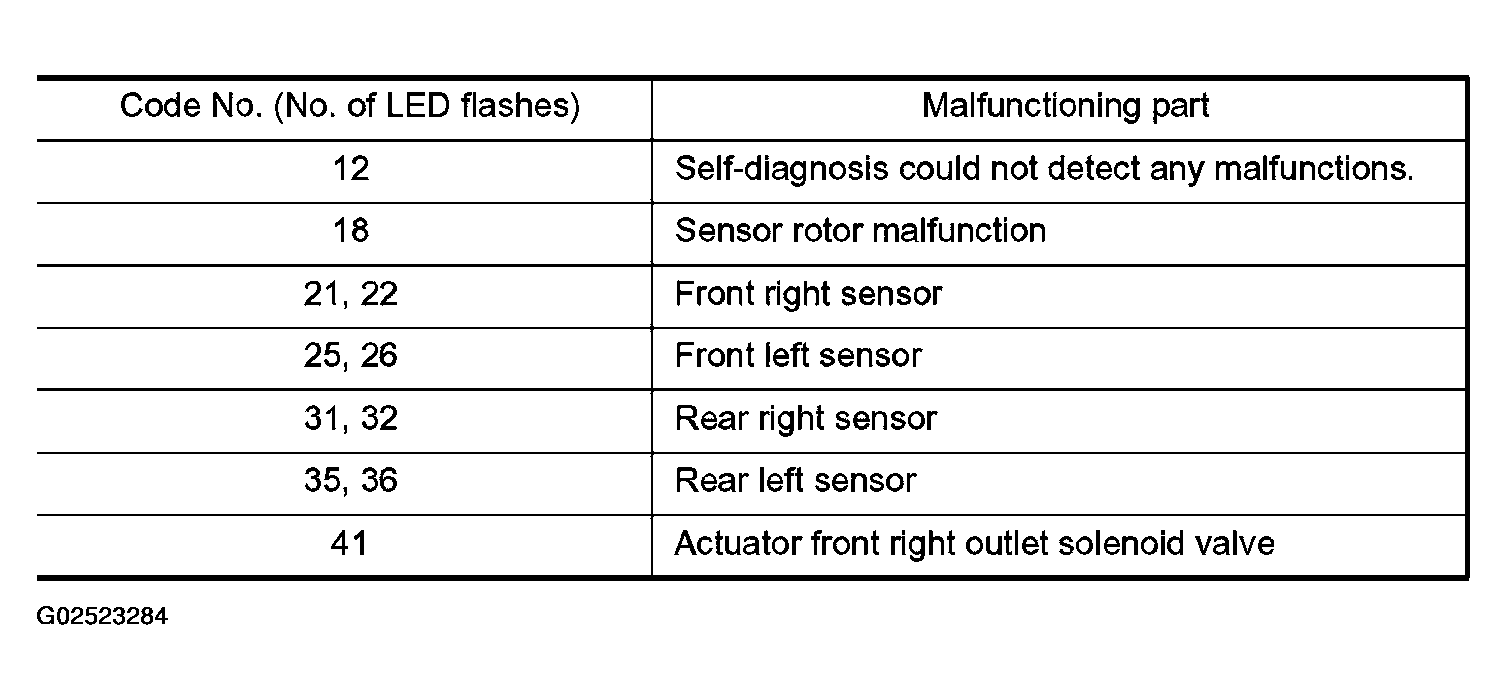

Fig 1: Malfunction Code Chart (Without CONSULT-II)
G02523284Courtesy of NISSAN MOTOR CO., U.S.A.
MALFUNCTION CODE CHART

Code No. (No. of LED flashes) Malfunctioning part Reference
42 Actuator front right inlet solenoid valve ABS ACTUATOR SOLENOID VALVE OR SOLENOID VALVE RELAY
45 Actuator front left outlet solenoid valve ABS ACTUATOR SOLENOID VALVE OR SOLENOID VALVE RELAY
46 Actuator front left inlet solenoid valve ABS ACTUATOR SOLENOID VALVE OR SOLENOID VALVE RELAY
51 Actuator rear right outlet solenoid valve ABS ACTUATOR SOLENOID VALVE OR SOLENOID VALVE RELAY
52 Actuator rear right inlet solenoid valve ABS ACTUATOR SOLENOID VALVE OR SOLENOID VALVE RELAY
55 Actuator rear left outlet solenoid valve ABS ACTUATOR SOLENOID VALVE OR SOLENOID VALVE RELAY
56 Actuator rear left inlet solenoid valve ABS ACTUATOR SOLENOID VALVE OR SOLENOID VALVE RELAY
57(1) Power supply (Abnormal voltage) ABNORMAL BATTERY VOLTAGE
61 Actuator motor or motor relay MOTOR RELAY OR MOTOR
63 Solenoid valve relay ABS ACTUATOR SOLENOID VALVE OR SOLENOID VALVE RELAY
71 Control unit CONTROLLER FAILURE
77 CAN communication circuit (CAN initialize, Bus-off, Receive) CAN COMMUNICATION LINE OR ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)
83 CAN ATMSG1 receive timeout CAN COMMUNICATION LINE OR ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)
84 CAN TRQDNINH fault CAN COMMUNICATION LINE OR ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)
86 CAN ETCOK fault CAN COMMUNICATION LINE OR ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)
87 CAN FCOK fault CAN COMMUNICATION LINE OR ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)
88 CAN CANOK fault CAN COMMUNICATION LINE OR ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)
(1) Under voltage that is too low, the control unit will disable the ABS. It does not set the ABS in fail-safe condition. Instead, the ABS becomes a conventional brake system. After the power supply has resumed, the warning lamp goes off, making it possible for the ABS to be re-engaged.
