Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component |
Location |

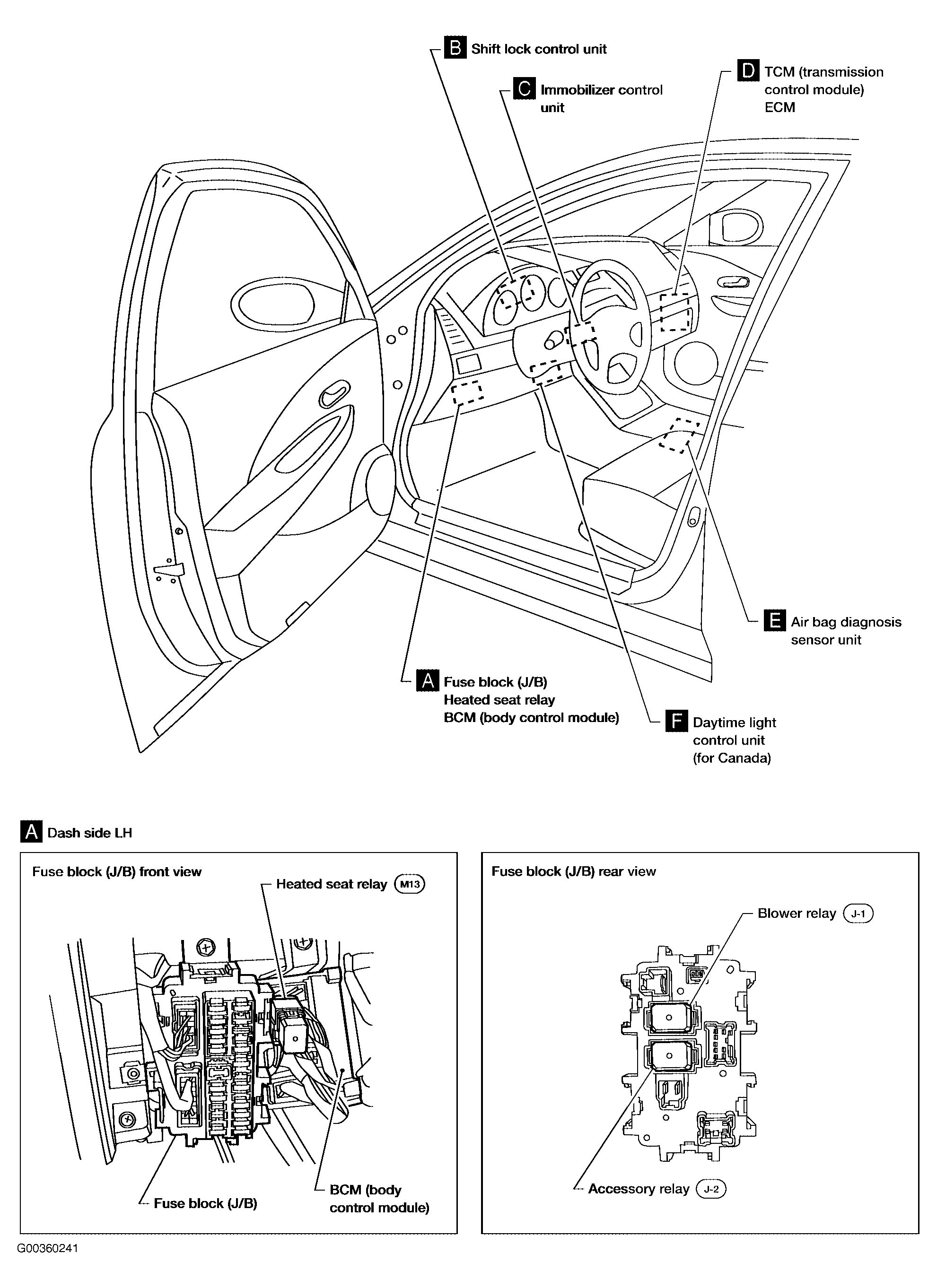

| Fuse Block (J/B) |
Behind left side of dash. See Figure
. |

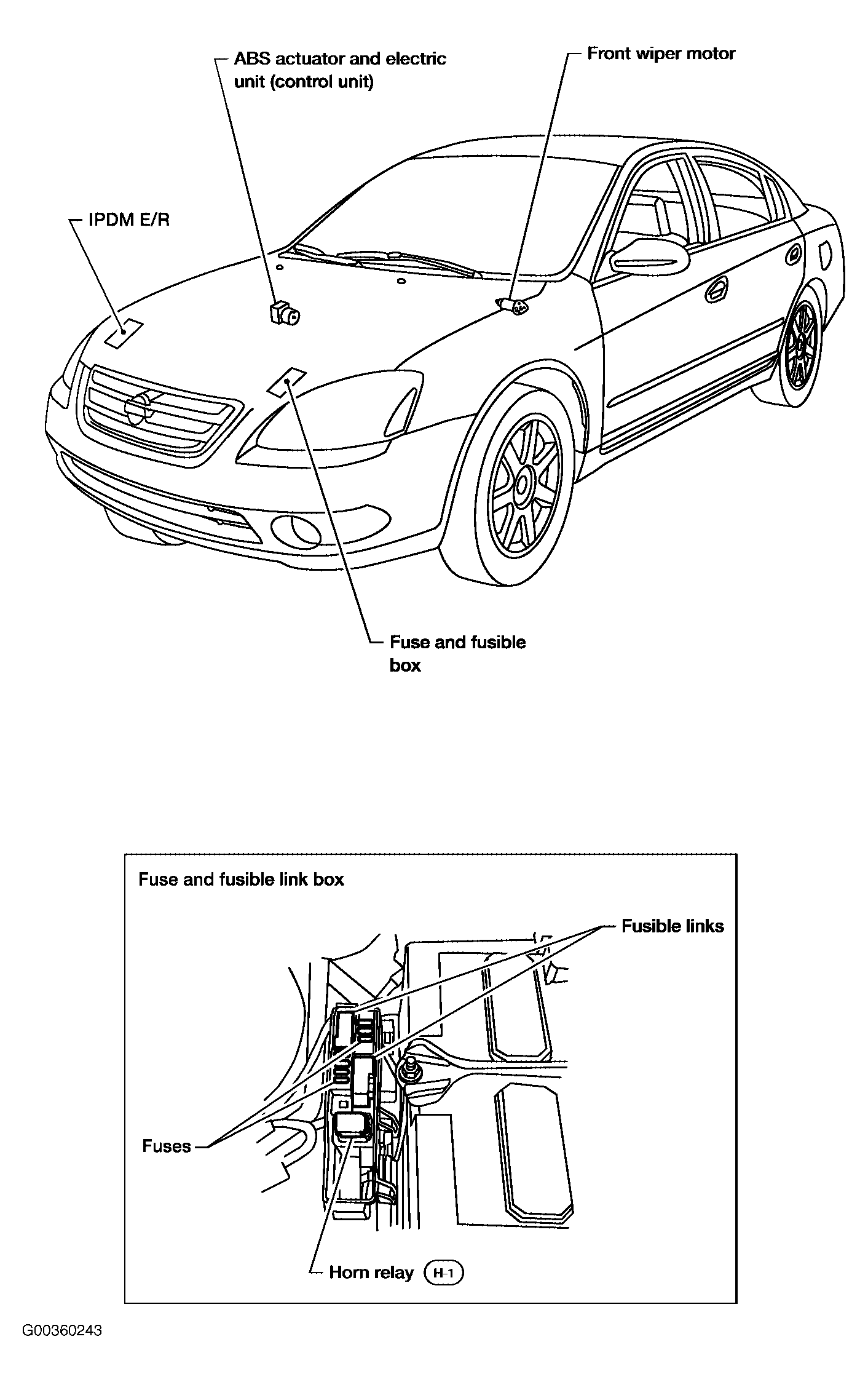

| Fuse & Fusible Link Box |
On left front of engine compartment, near battery. See Figure
. |

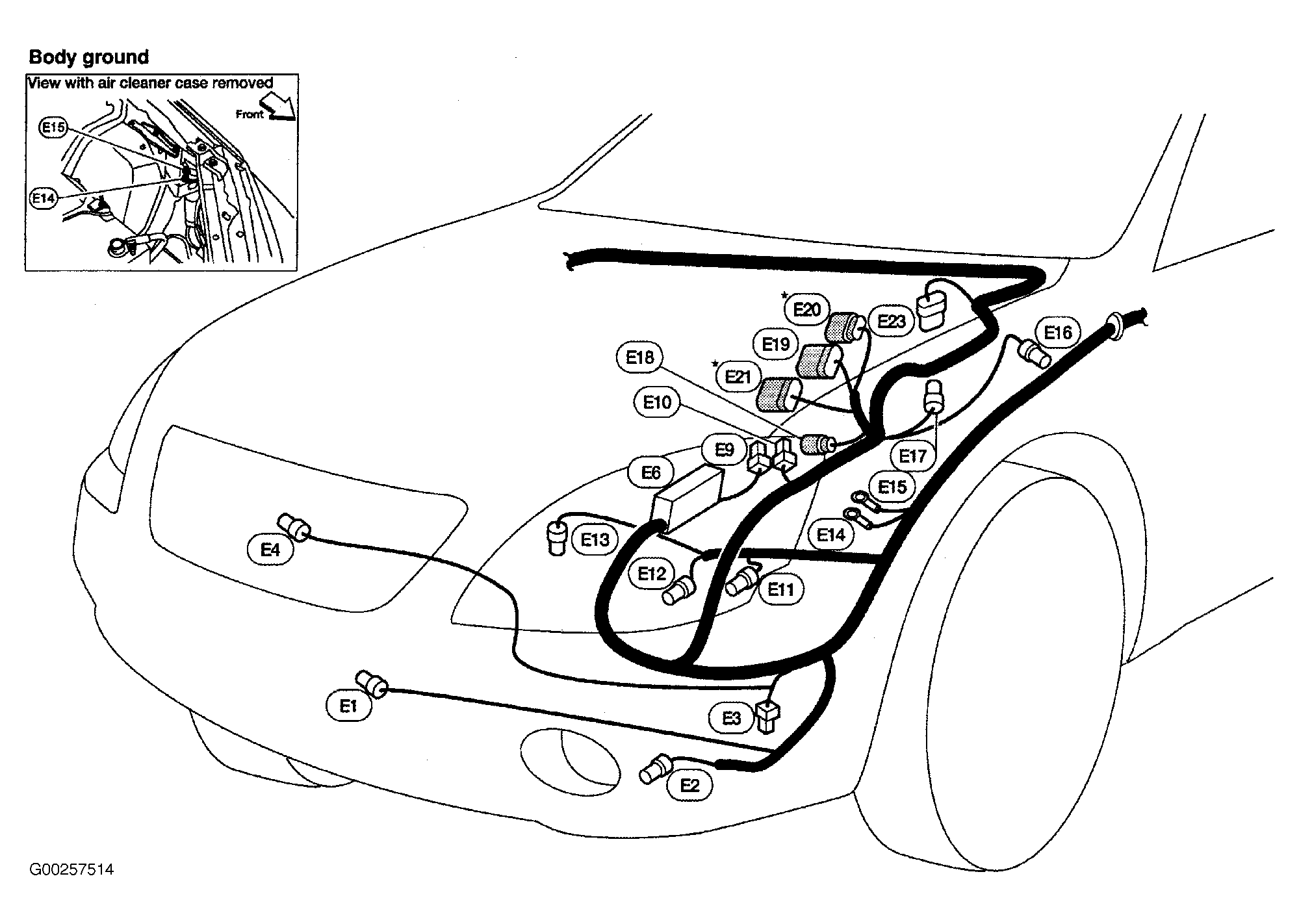

| Fusible Link Box (Battery) (E9) |
On left front of engine compartment, near battery. See Figure
. |
