Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

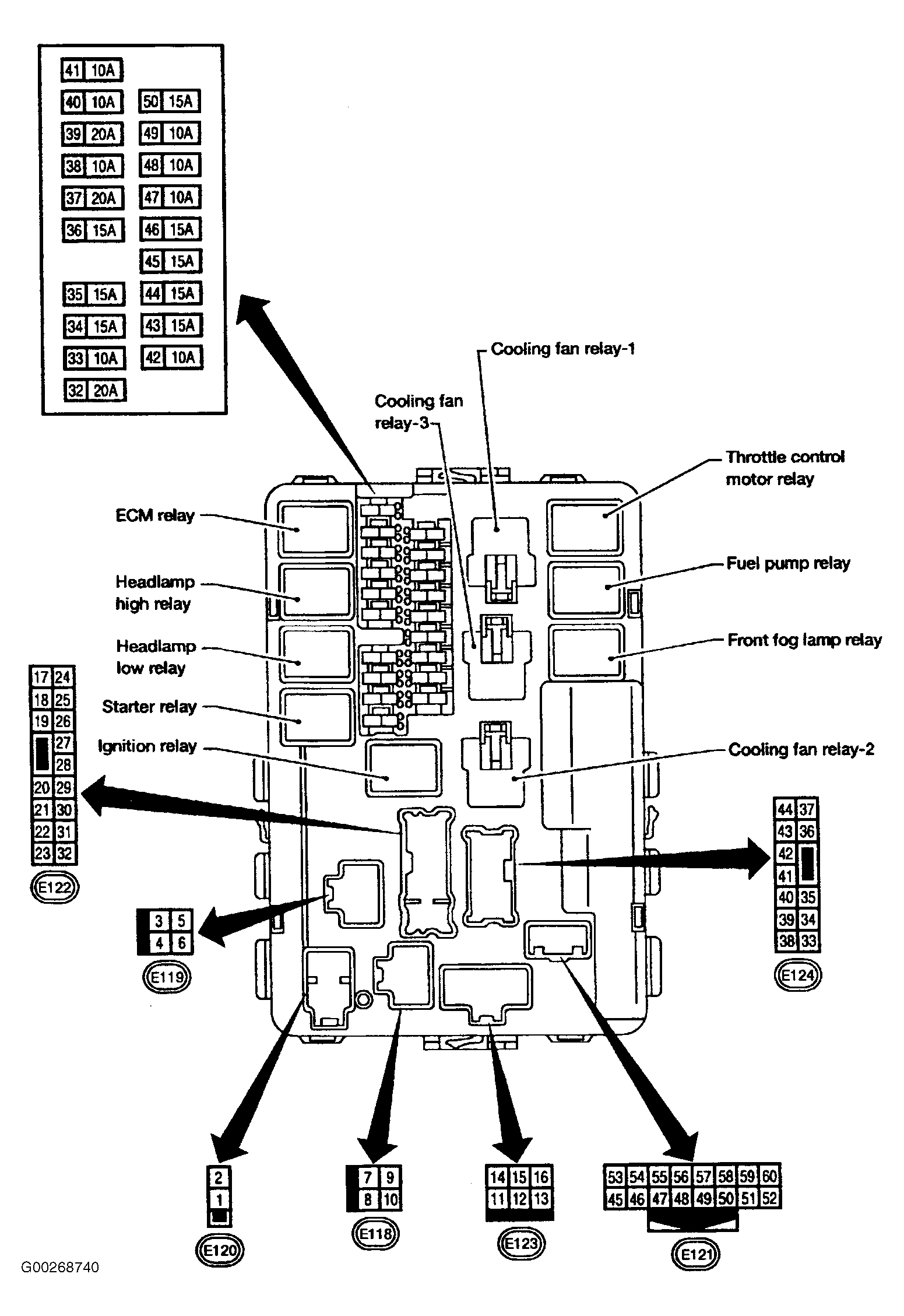

Fig 1: IPDM E/R (Intelligent Power Distribution Module Engine Room)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Dash & Center Console

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Left Side Of Engine Compartment

Courtesy of NISSAN MOTOR CO., U.S.A.

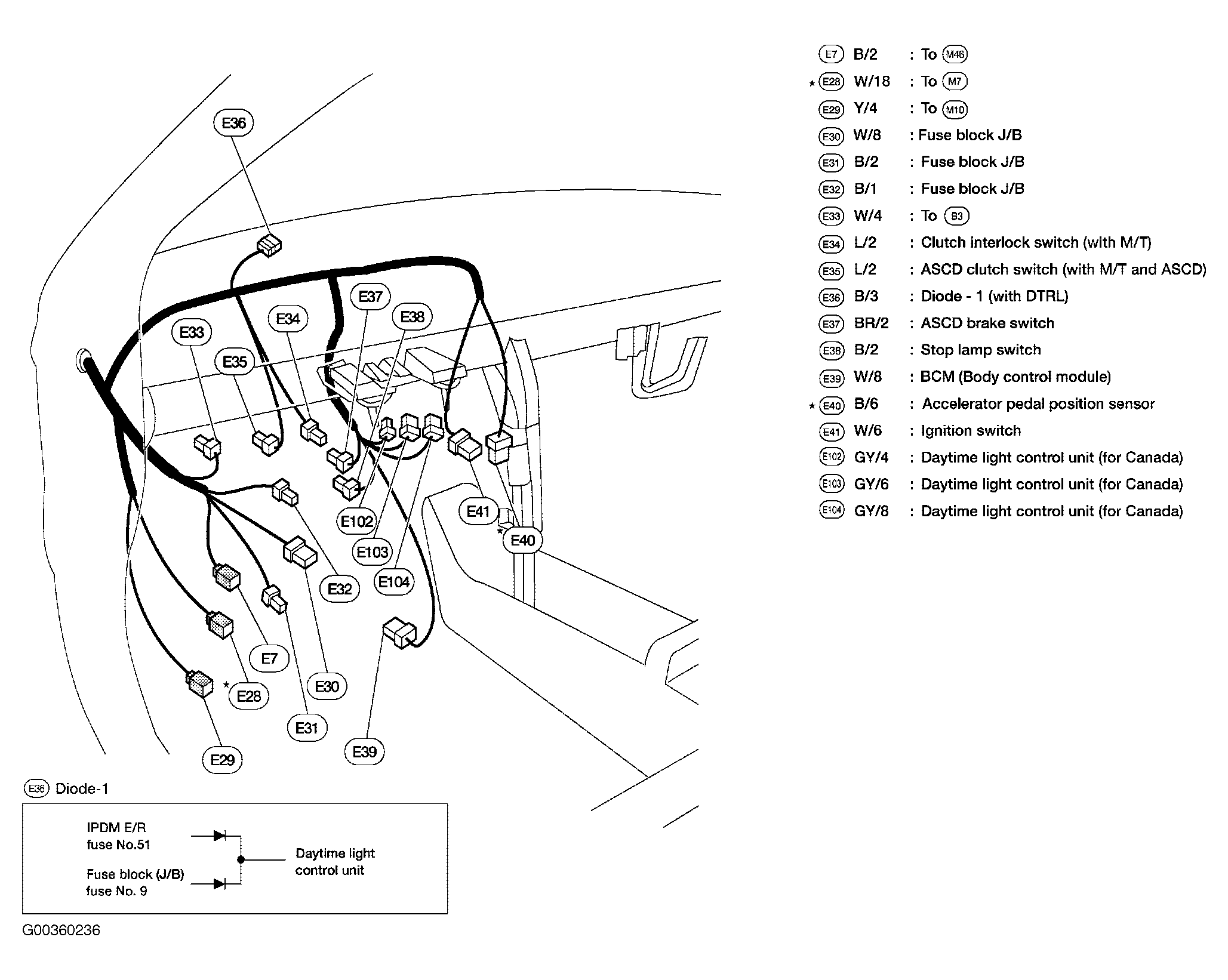

Fig 4: Left Side Of Dash

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Right Side Of Engine Compartment & Dash

Courtesy of NISSAN MOTOR CO., U.S.A.

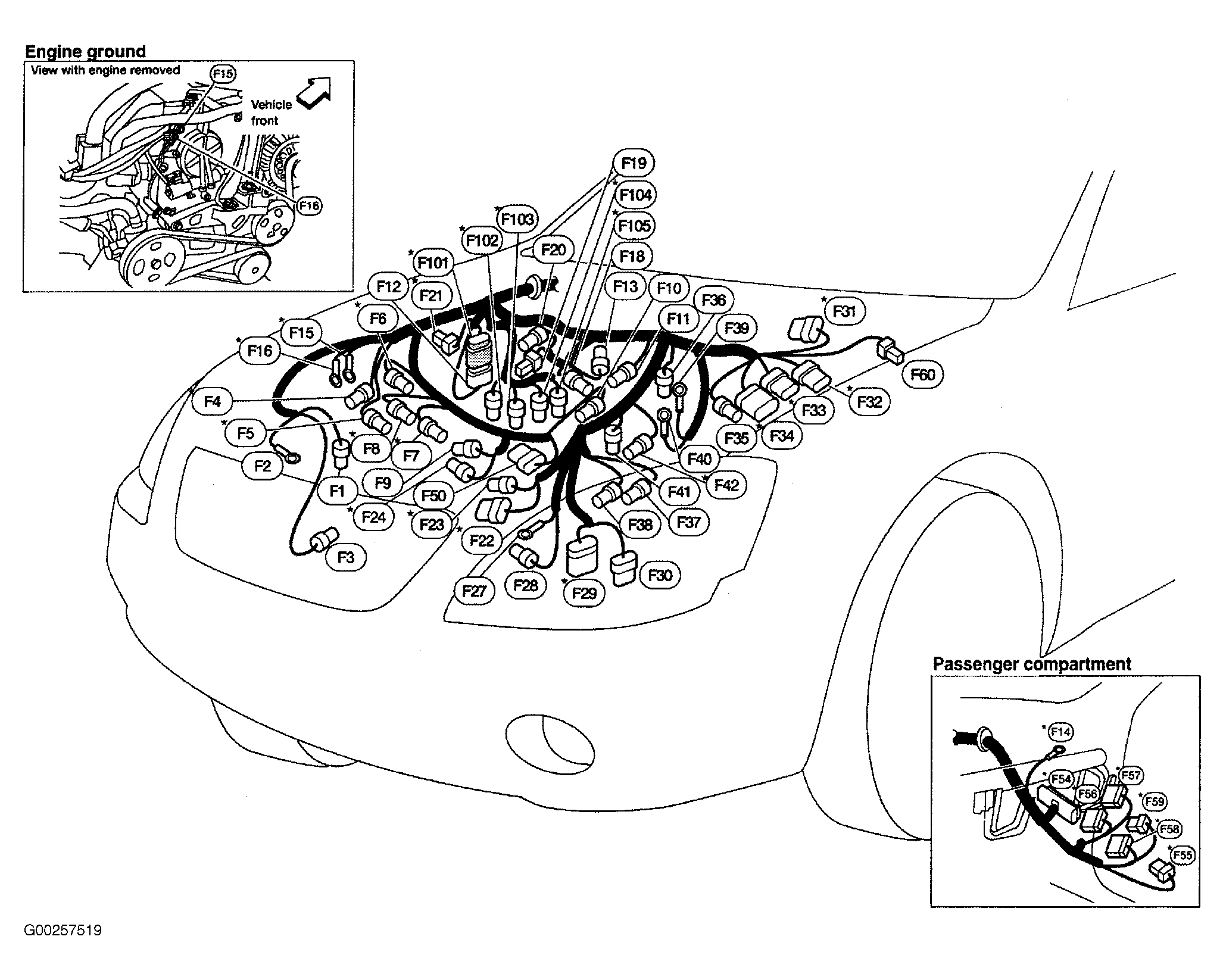

Fig 6: Engine (2.5L)

Courtesy of NISSAN MOTOR CO., U.S.A.

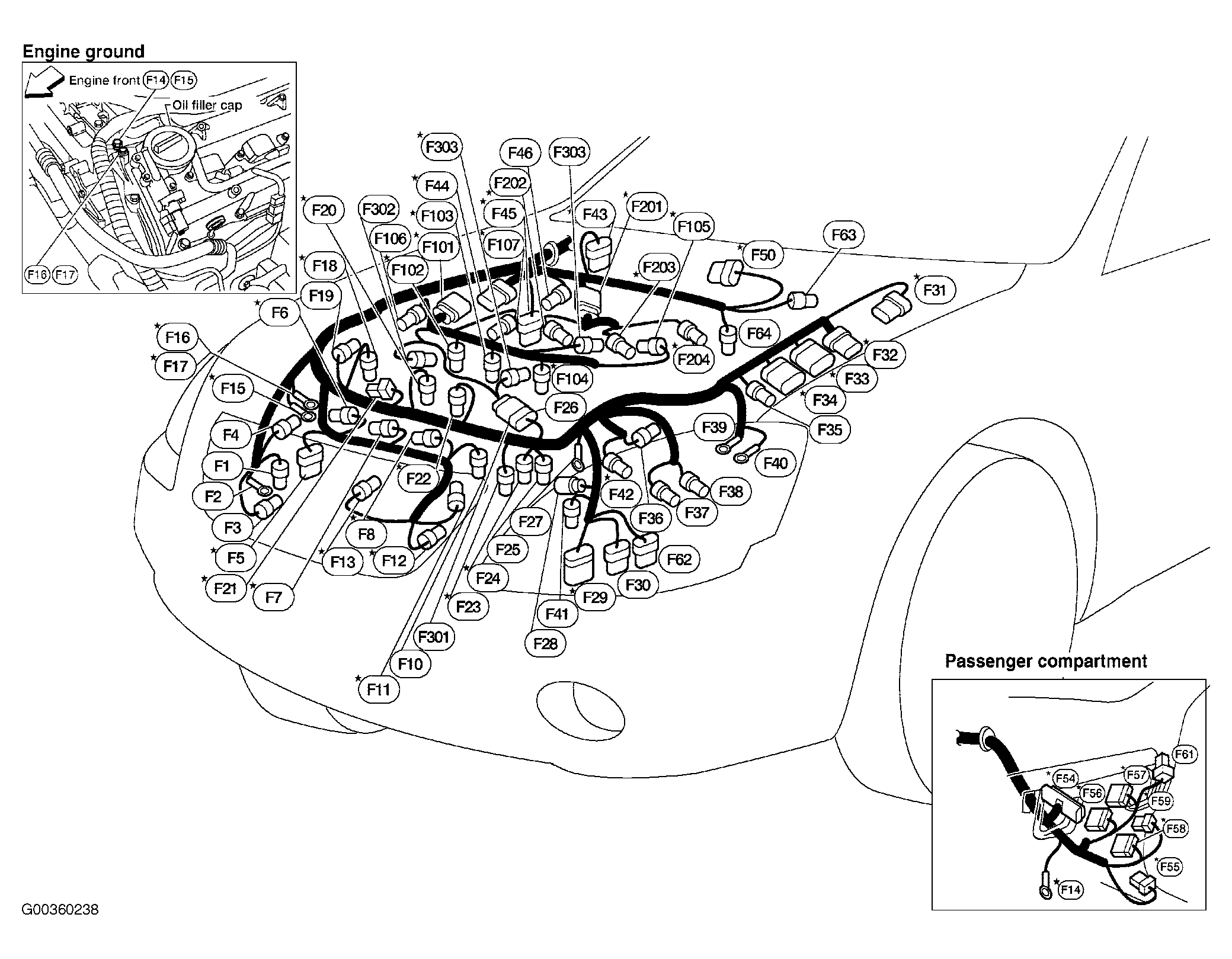

Fig 7: Engine (3.5L)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 8: Left Side Of Body & Trunk Lid Harness

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Right Side Of Body & Trunk Harness

Courtesy of NISSAN MOTOR CO., U.S.A.

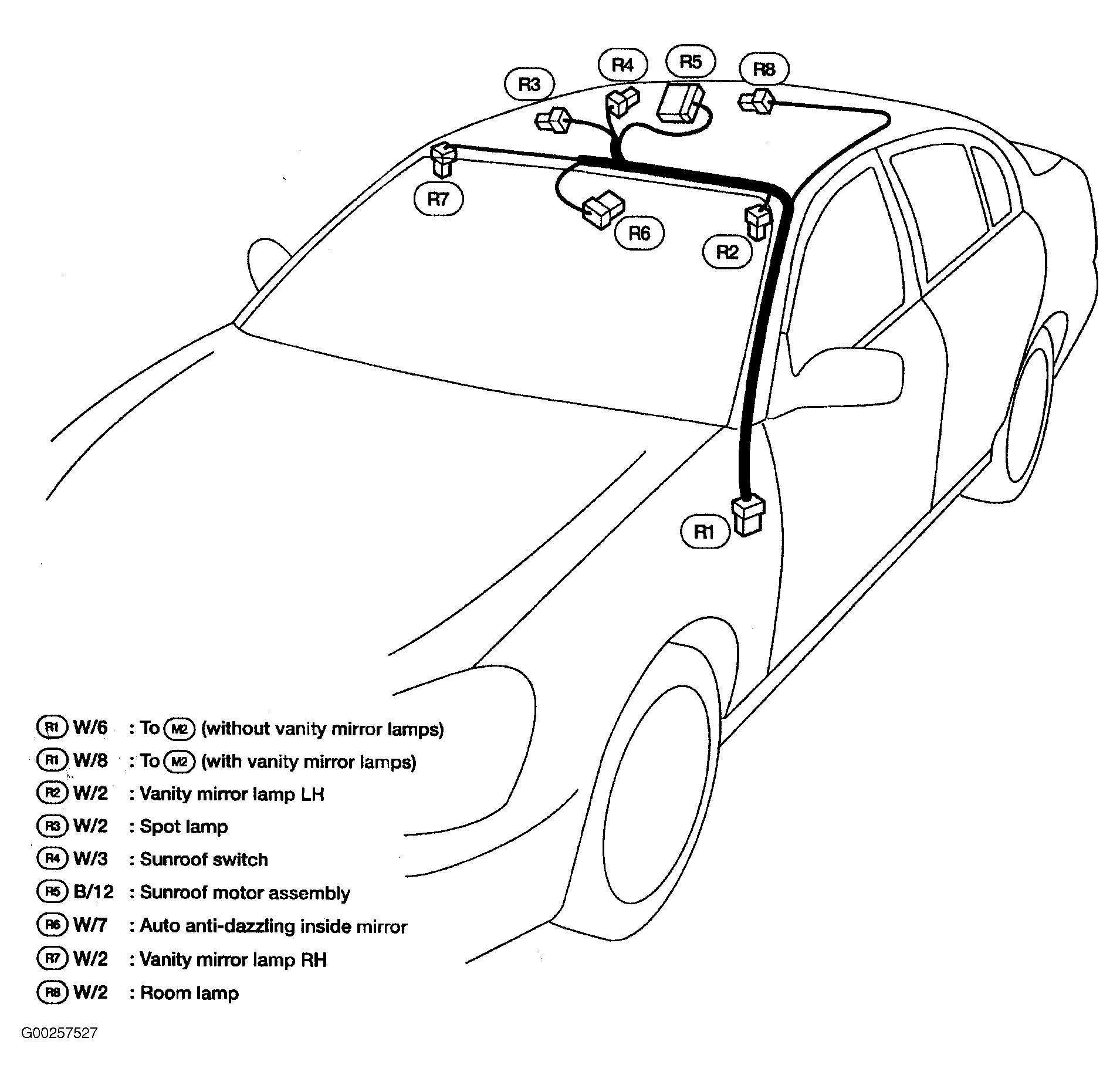

Fig 10: Roof

Courtesy of NISSAN MOTOR CO., U.S.A.

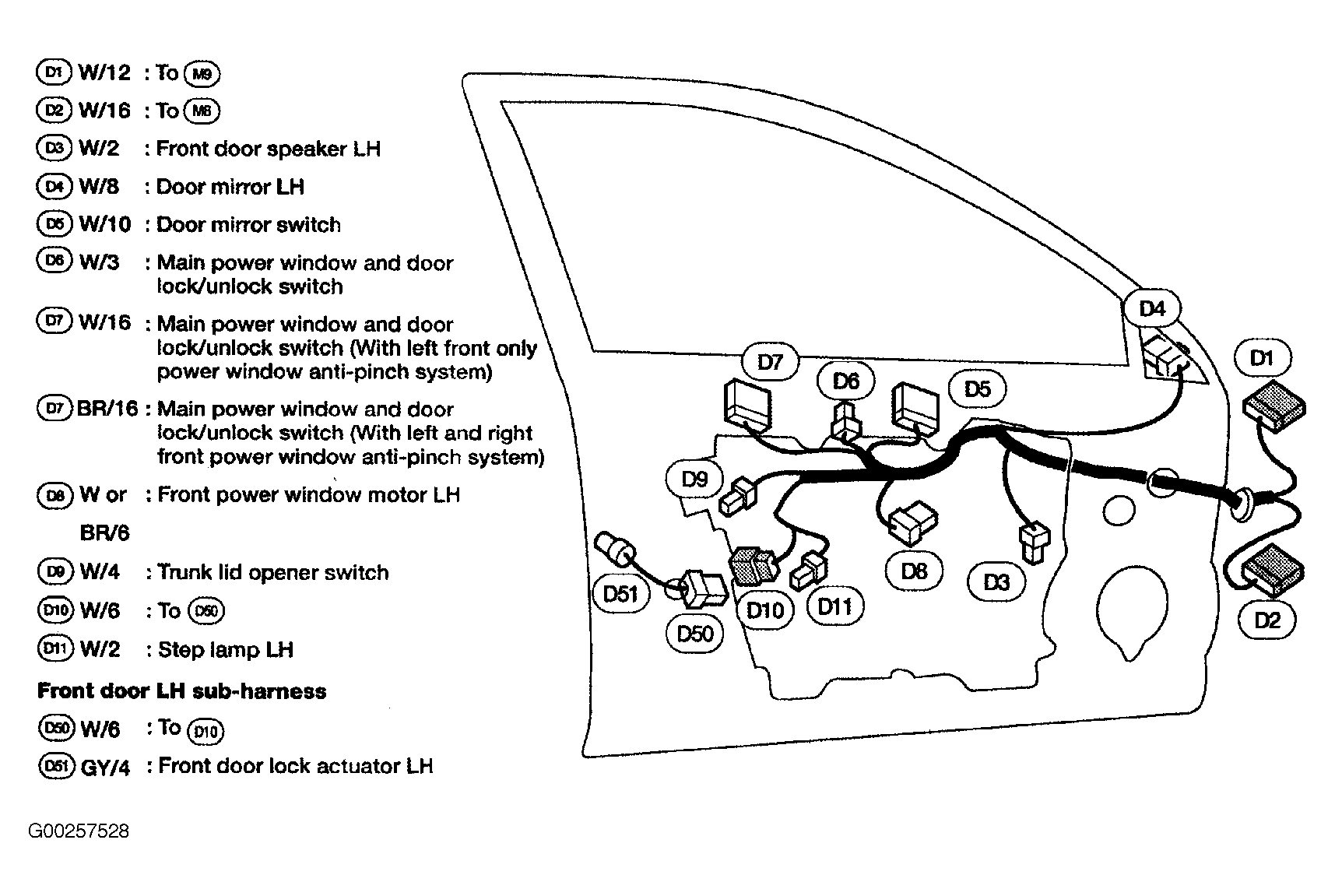

Fig 11: Left Front Door

Courtesy of NISSAN MOTOR CO., U.S.A.

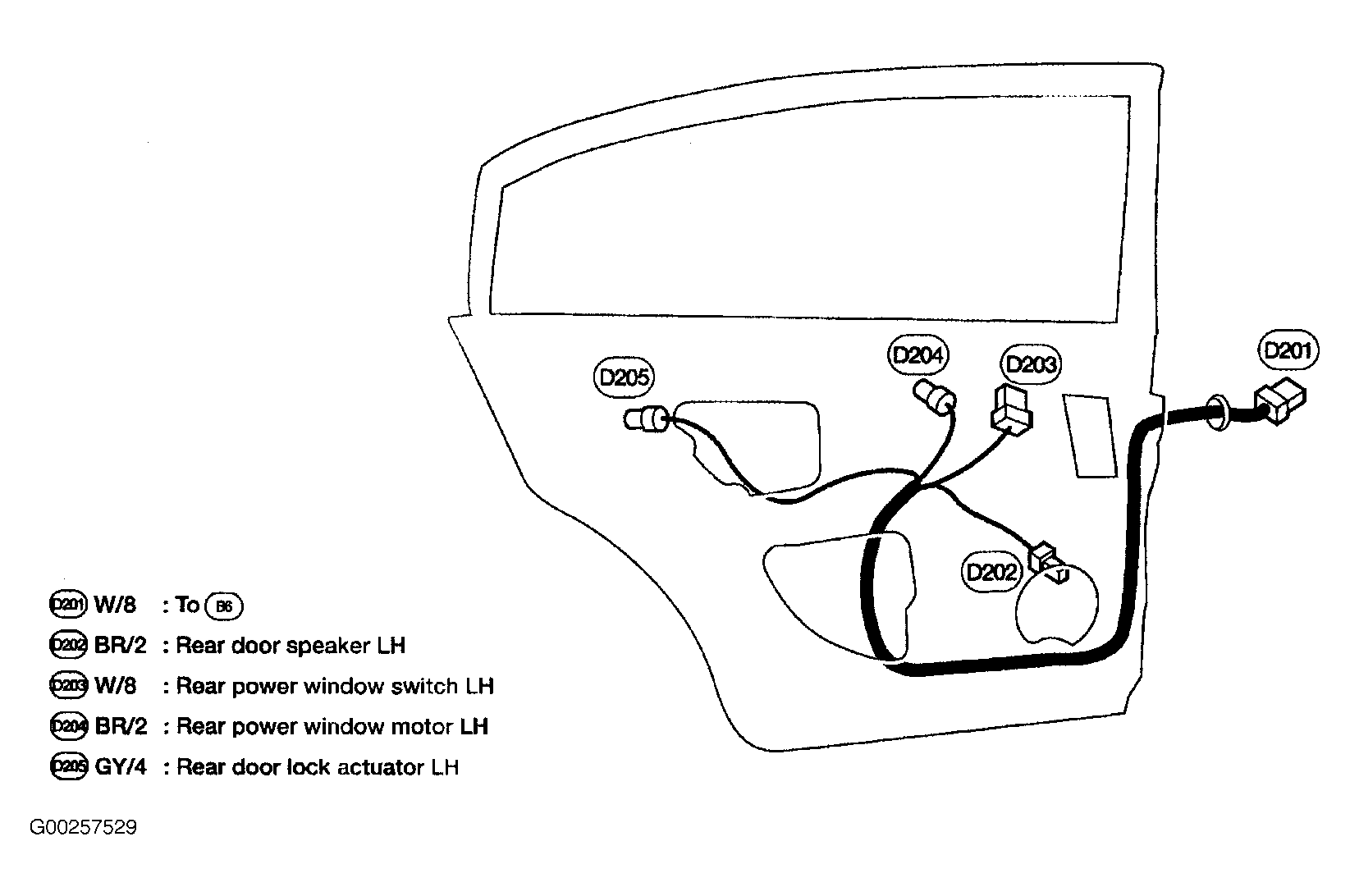

Fig 12: Left Rear Door

Courtesy of NISSAN MOTOR CO., U.S.A.

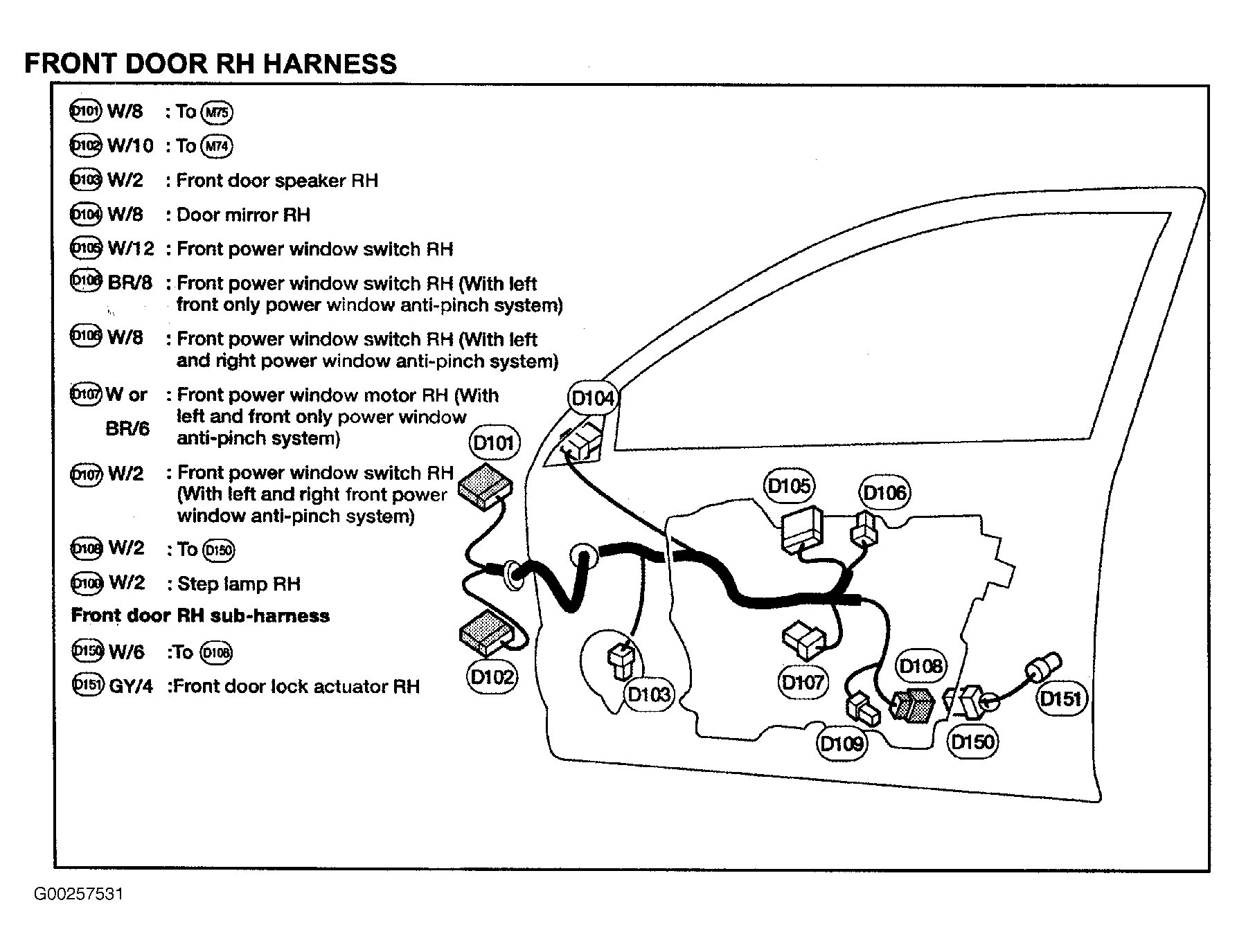

Fig 13: Right Front Door

Courtesy of NISSAN MOTOR CO., U.S.A.

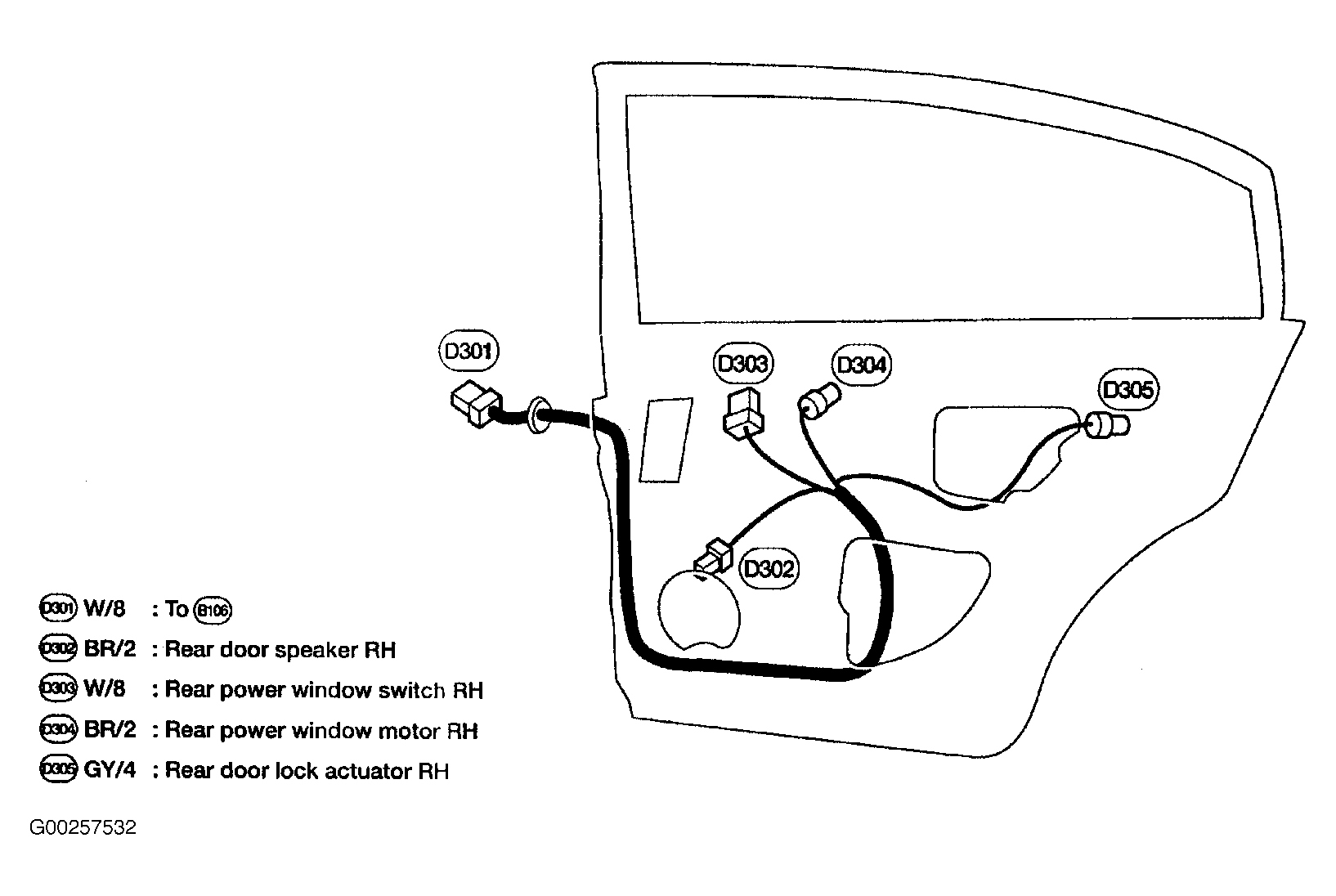

Fig 14: Right Rear Door

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 15: Engine Compartment

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 16: Dash & Center Console Views (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 17: Dash & Center Console Views (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
